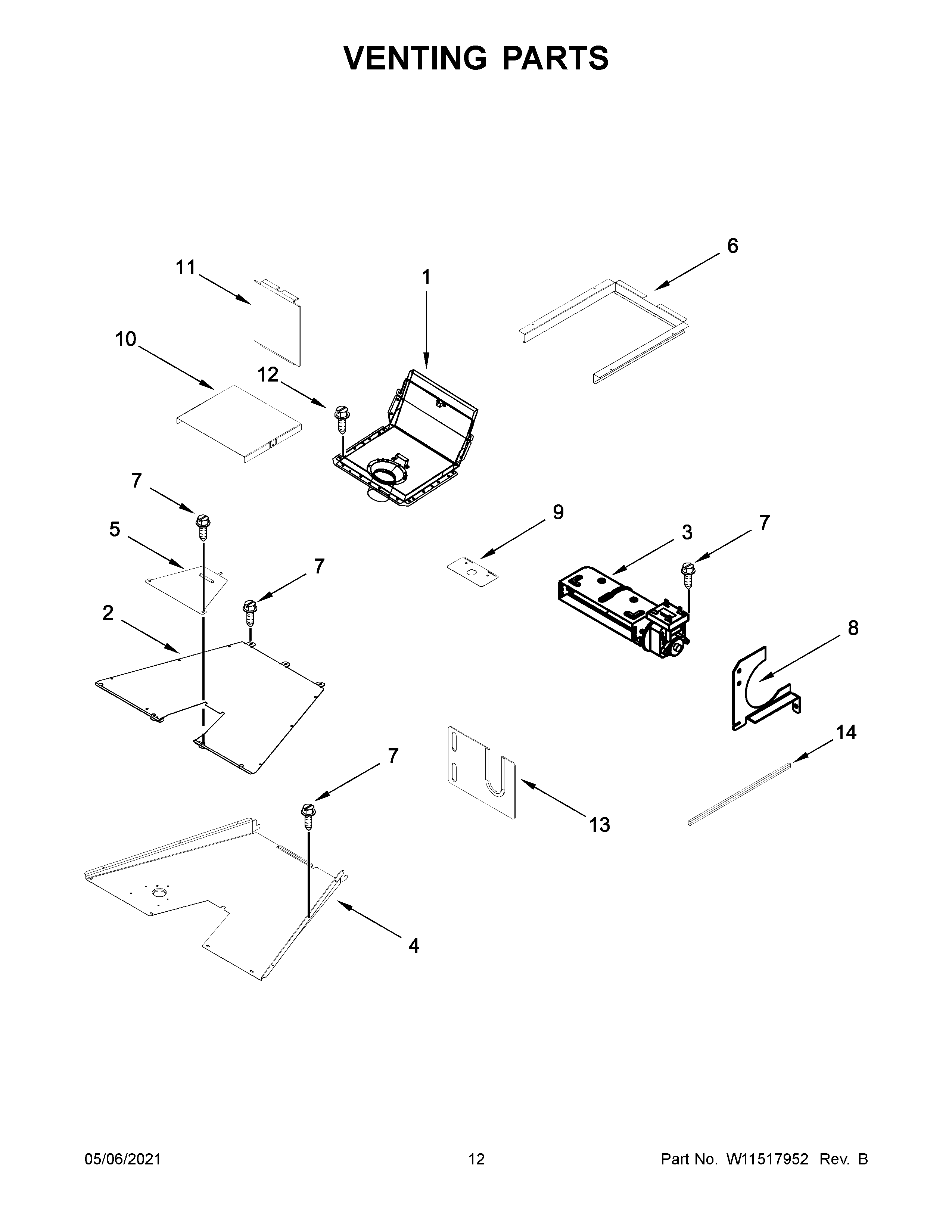

KFGC558JBK02 07 – VENTING PARTSadmin2025-04-26T12:35:06+00:00KFGC558JBK02 07 – VENTING PARTS
Products
| Position | Product |
|---|
| 1 | W10340579 Whirlpool Exhaust Vent |
| 1A | VENT, CHIMNEY BOX (18 IN) |
| 2 | VENT, COOLING TOP (30 IN) |
| 2A | VENT, COOLING TOP (18 IN) |
| 3 | W11248652 Whirlpool Blower |
| 4 | VENT, COOLING BOTTOM (30 IN) |
| 4A | VENT, COOLING BOTTOM (18 IN) |
| 5 | PLATE, COOLING LATCH |
| 6A | DUCT, PRIMARY AIR (18 IN) |
| 6 | DUCT, PRIMARY AIR (30 IN) |
| 7 | SCREW |
| 8 | BRACKET, BLOWER MOUNT |
| 9 | W10115855 Whirlpool Support Bracket |
| 10 | RETAINER, INSULATION |
| 11 | INSULATION, CHIMNEY |
| 12 | WP3400805 Whirlpool Screw Assembly |
| 13 | COVER, CHANNEL |
| 14 | W11175143 Whirlpool Gasket |
