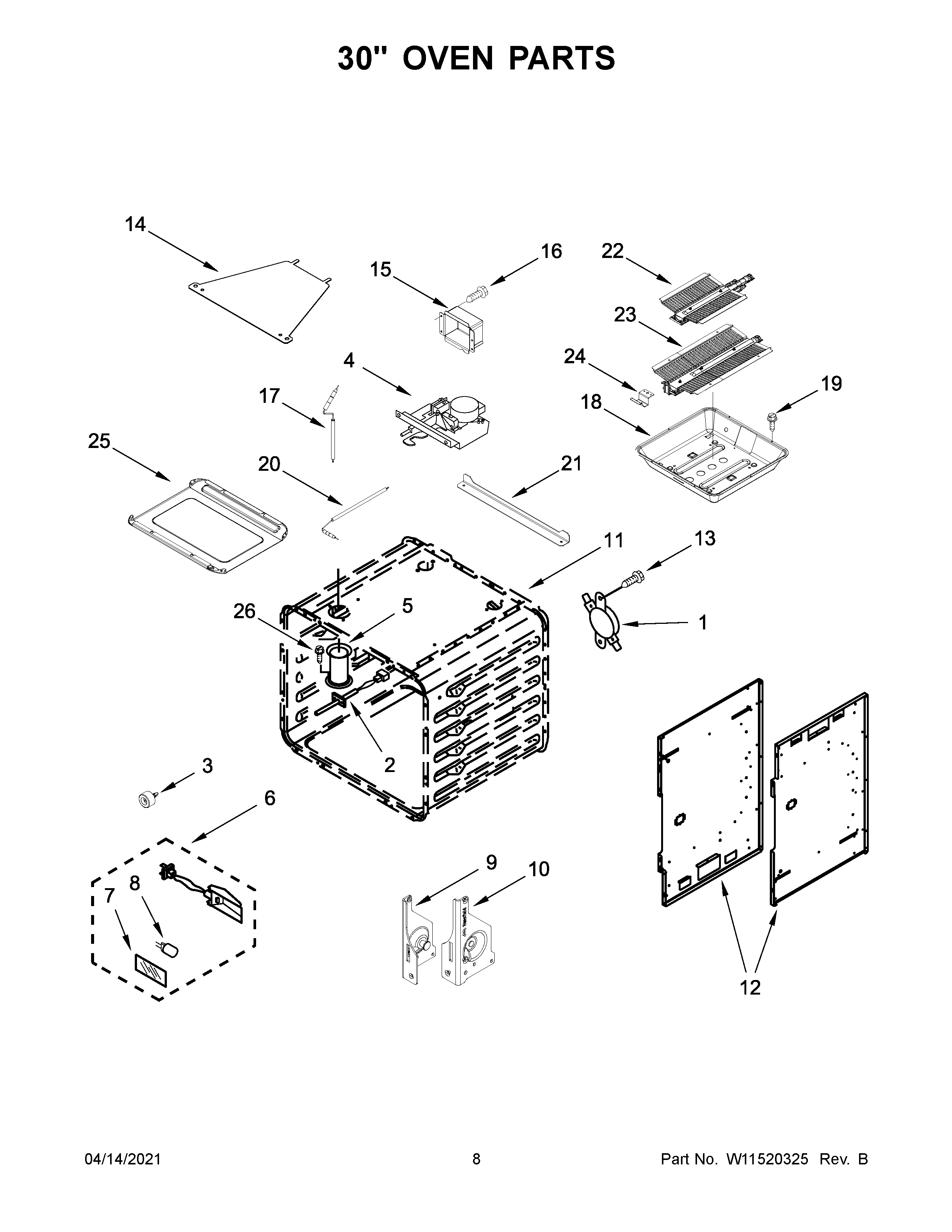

KFGC558JIB02 05 – 30″ OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK (30 IN)
NI	INSULATION, BOTTOM
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP (30 IN)
NI	WP3400968 Whirlpool Nut
1	WP4450249 Whirlpool Thermostat
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
12A	CHASSIS, SIDE (RIGHT)
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	W10308051 Whirlpool Burner Box
16	SCREW
17	W11355920 Whirlpool Surface Igniter
18	WPW10145744 Whirlpool Support
19	WP12992902 Whirlpool Refrigerator Screw
20	W11355922 Whirlpool Surface Igniter
21	W10317437 Whirlpool Support Assembly
22	W11643161 Whirlpool Oven Burner
23	W11661180 Whirlpool Burner Broiler
24	W10308040 Whirlpool Pan Bracket
25	W11661576 Whirlpool Oven Bottom Pan
26	SCREW
