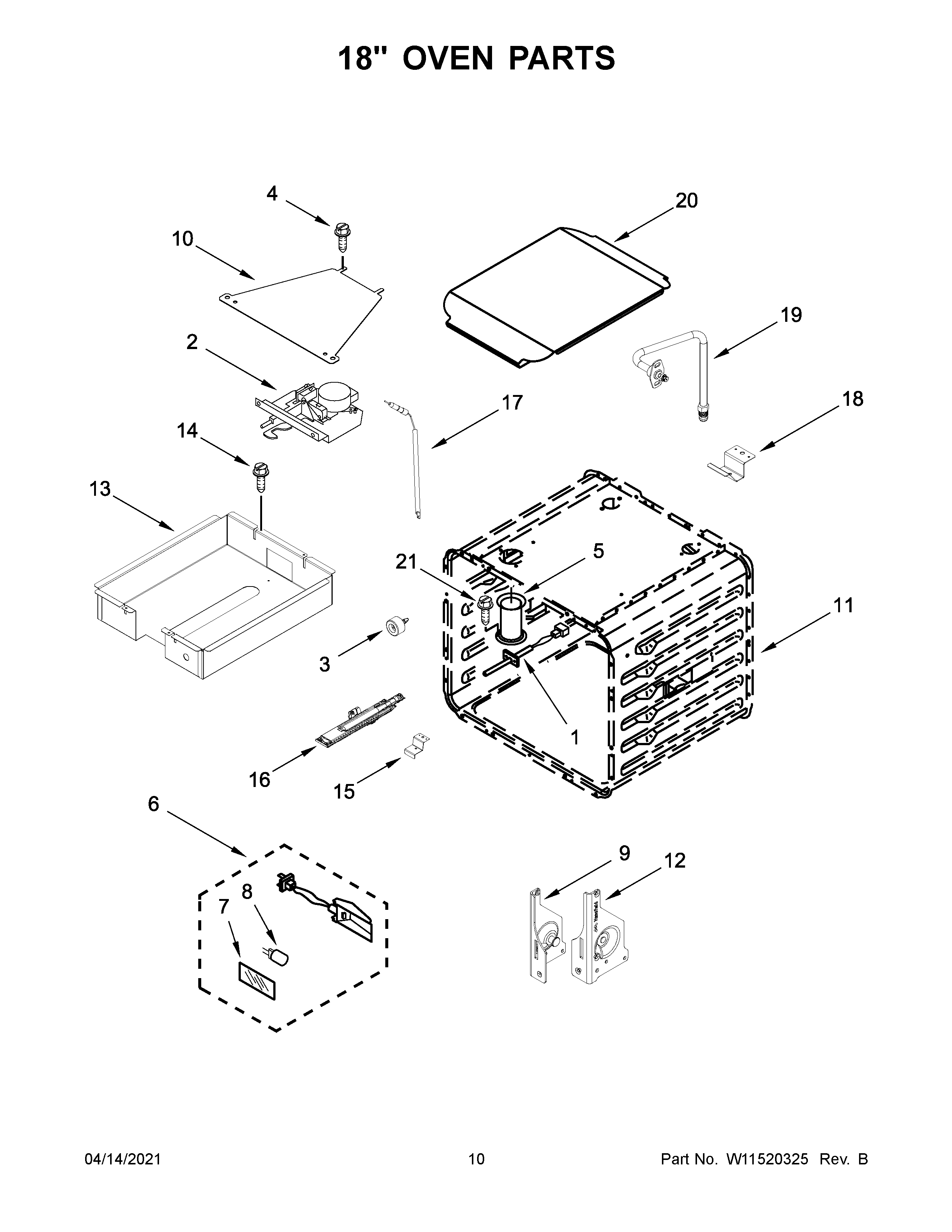

KFGC558JIB02 06 – 18″ OVEN PARTS

Products

Position	Product
NI	WP3400968 Whirlpool Nut
NI	INSULATION, WRAP, 18 IN
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK, 18 IN
NI	INSULATION, BOTTOM
1	W10859573 Whirlpool Range Oven Temperature Sensor
2	W11029221 Whirlpool Door Latch
3	WPW10351278 Whirlpool Bumper
4	SCREW
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	W10160858 Whirlpool Lid Cover
12	RECEIVER, HINGE (RIGHT)
13	SUPPORT, BAKE PAN
14	WP12992902 Whirlpool Refrigerator Screw
15	BRACKET, BAKE BURNER (18 IN CAVITY)
16	W10878505 Whirlpool Oven Burner
17	W11355922 Whirlpool Surface Igniter
18	W10308040 Whirlpool Pan Bracket
19	W10145706 Whirlpool Gas Tubing Assembly
20	W11504377 Whirlpool Broiler Pan
21	SCREW
