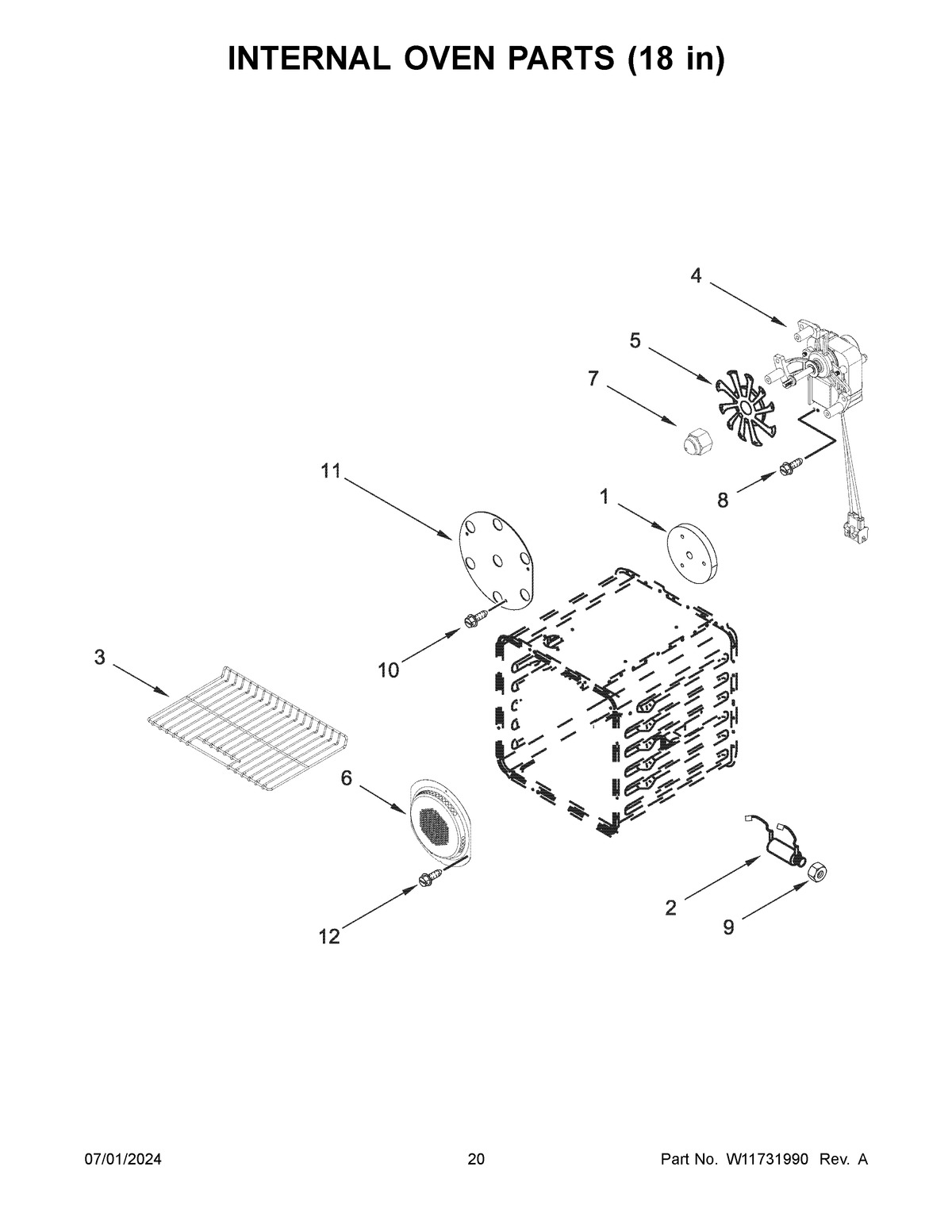

KFGC558JMB07 11 – INTERNAL OVEN PARTS (18 IN)

Written by

Products

Position	Product
1	W11688507 Whirlpool Insulation
2	8186589 Whirlpool Jack Probe
3	W10570879 Whirlpool Oven Rack Assembly
4	W10794440 Whirlpool Fan Motor
5	W10819914 Whirlpool Convection Fan
6	COVER, FAN
7	W10794042 Whirlpool Nut
8	WP4449154 Whirlpool Screw
9	WP9755546 Whirlpool Locknut
10	W10850807 Whirlpool Screw
11	W10261523 Whirlpool Plate
12	SCREW
