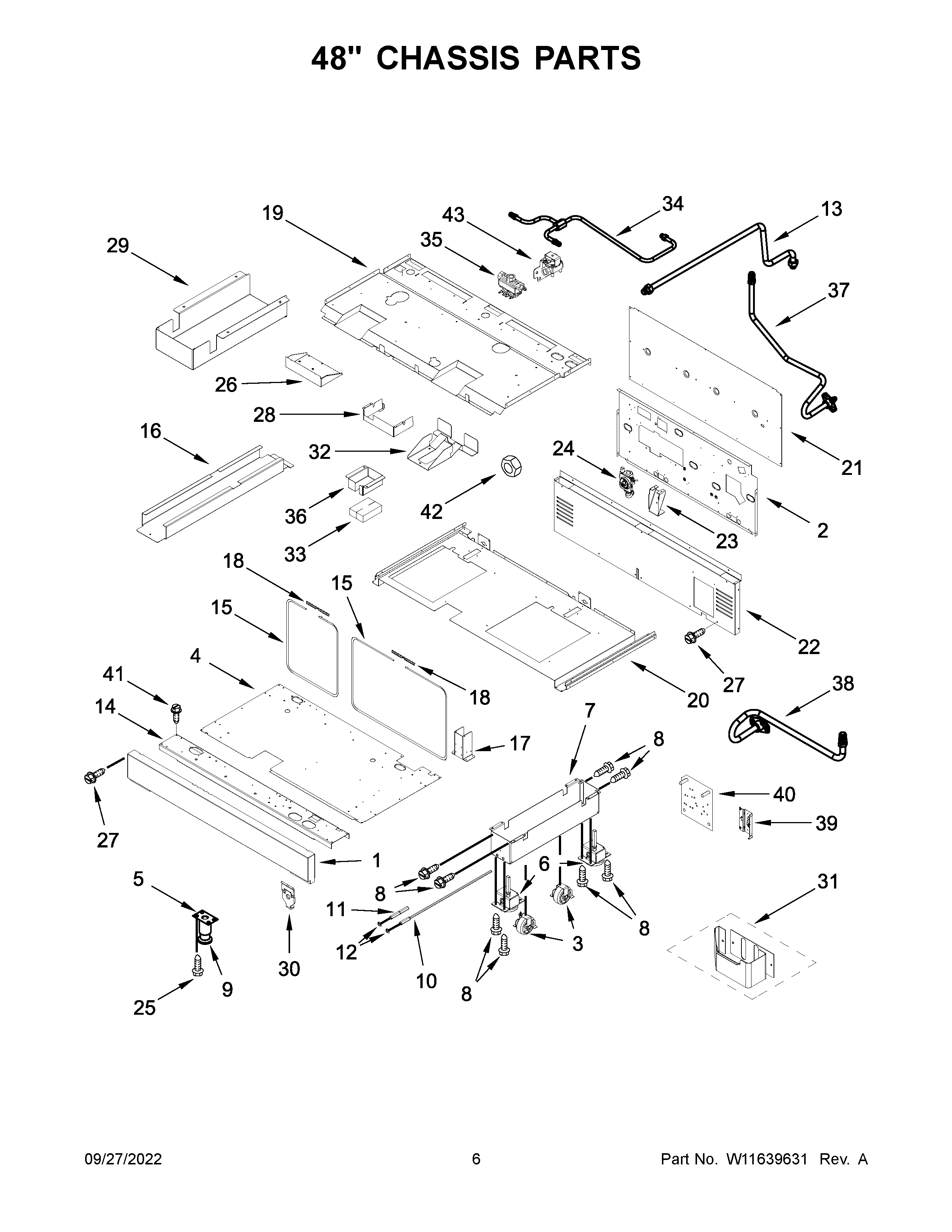

KFGC558JPA05 04 – 48″ CHASSIS PARTS

KFGC558JPA05 04 – 48″ CHASSIS PARTS

Written by

in

KFGC558JPA05 04 – 48″ CHASSIS PARTS

Products

PositionProduct
1KICKPLATE
2BACK, CHASSIS
3WPW10138054 Whirlpool Refrigerator Cabinet Roller
4W11320536 Whirlpool Duct
5WP9759118 Whirlpool Mounting Plate
6W10859931 Whirlpool Foot Level
7W10908710 Whirlpool Mounting Bracket
8WP4449743 Whirlpool Screw
9WP9759117 Whirlpool Leveling Foot
10W10115869 Whirlpool Shaft
11W10115793 Whirlpool Shaft
12489504 Whirlpool Oven Ring
13W11364214 Whirlpool Gas Tubing
14SUPPORT, CHANNEL
15AW11115326 Whirlpool Gasket
15W11675844 Whirlpool Oven Gasket
16W11050145 Whirlpool HVAC Air Duct
17W10115819 Whirlpool Brace
18W11362015 Whirlpool Retainer
19TOP, CHASSIS
20CHASSIS, BOTTOM
21PANEL, BACK TOP
22PANEL, BACK BOTTOM
23W11320155 Whirlpool Mounting Bracket
24W11193822 Whirlpool Regulator
253400518 Whirlpool Oven Foot Mount Screw
26DRAWER, APPLIANCE MANAGER
27SCREW
28CABINET, APPLIANCE MANAGER
29CHANNEL, WIRE
30W11318207 Whirlpool Clip Assembly
31AW11199178 Whirlpool Foot Cover Assembly
31W11199181 Whirlpool Foot Cover
32W11190223 Whirlpool Bracket Assembly
33INSULATION, BROIL COVER
34W11355235 Whirlpool Gas Tubing
35W11239228 Whirlpool Gas Valve
36W10310985 Whirlpool Access Cover
37W11355244 Whirlpool Gas Tubing
38W11355919 Whirlpool Range Gas Tubing
39W10145362 Whirlpool Control Bracket
40WPW10511278 Whirlpool Spark Module
41W11169708 Whirlpool Screw
42WP112432 Whirlpool Nut Assembly
43W10311268 Whirlpool Gas Valve
