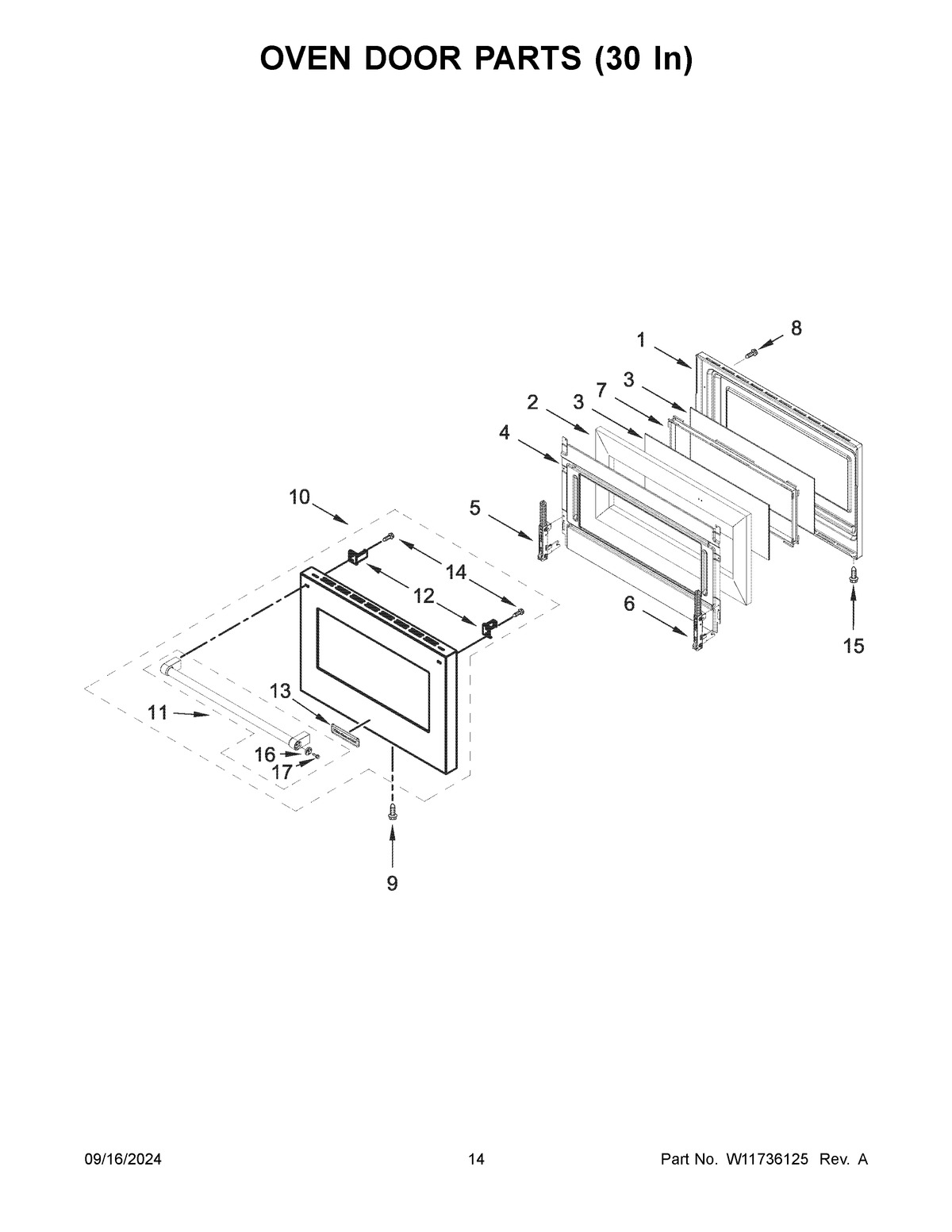

KFGC558JSC07 08 – OVEN DOOR PARTS (30 IN)

KFGC558JSC07 08 – OVEN DOOR PARTS (30 IN)

Written by

in

KFGC558JSC07 08 – OVEN DOOR PARTS (30 IN)

Products

PositionProduct
1W11318831 Whirlpool Glass Frame
2INSULATION, DOOR (30 IN)
3W11318823 Whirlpool Door Glass
4RETAINER, GLASS
5W11643630 Whirlpool Door Hinge
6W11643898 Whirlpool Door Hinge
7WPW10272594 Whirlpool Window Frame
8W11712404 Whirlpool Screw
9W10162096 Whirlpool Screw
10OUTER DOOR ASSEMBLY (INCLUDES HANDLE)
11HANDLE ASSEMBLY
12BRACKET, HANDLE
13W10839793 Whirlpool Refrigerator Nameplate
14WPW10276043 Whirlpool Screw
15W11193480 Whirlpool Screw
16MEDALLION, HANDLE
17W10920281 Whirlpool Screw
