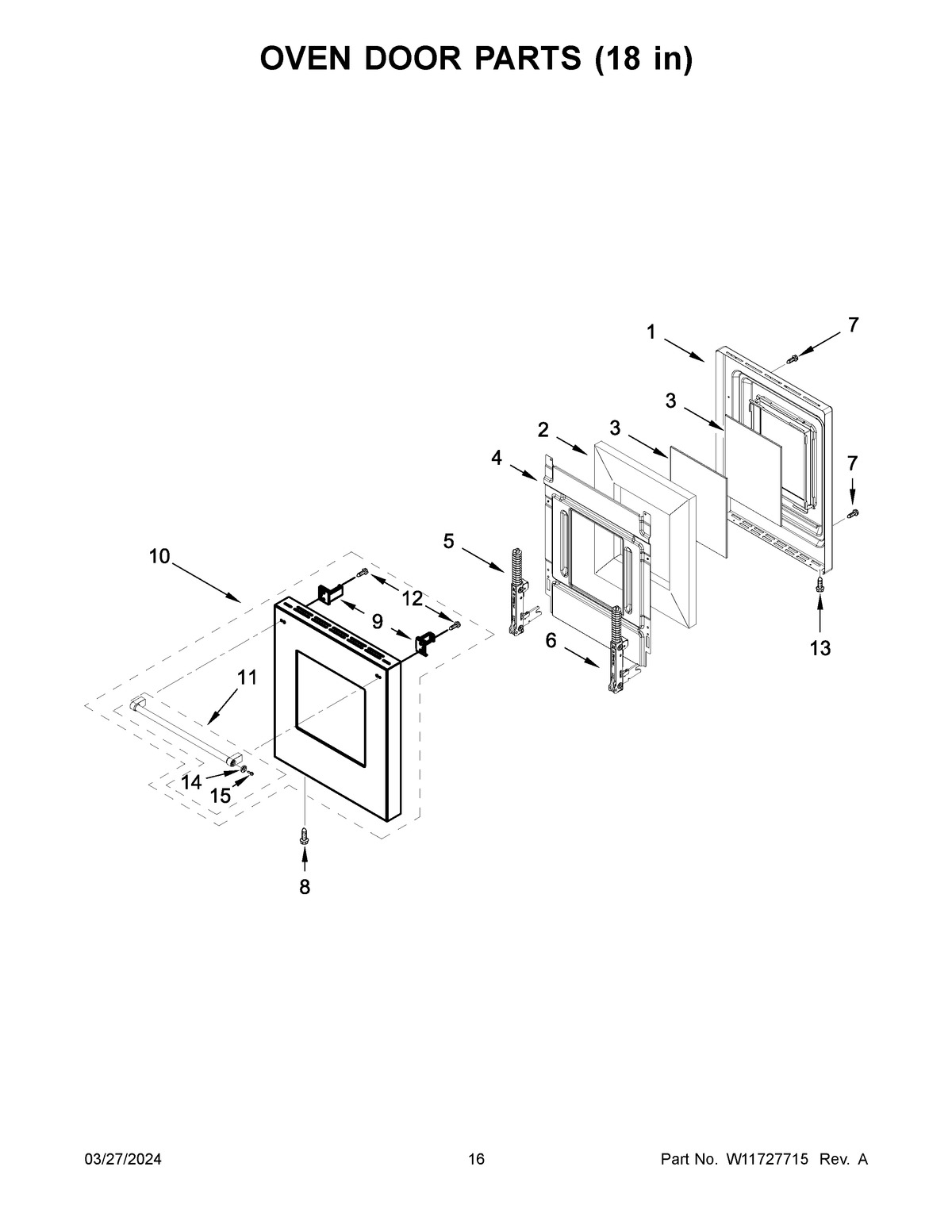

KFGC558JSS07 09 – OVEN DOOR PARTS (18 IN)

KFGC558JSS07 09 – OVEN DOOR PARTS (18 IN)

Written by

in

KFGC558JSS07 09 – OVEN DOOR PARTS (18 IN)

Products

PositionProduct
1W11318335 Whirlpool Glass Frame
2INSULATION, DOOR
3W11317951 Whirlpool Glass Door
4RETAINER, GLASS
5W11643896 Whirlpool Appliance Door Hinge
6W11643900 Whirlpool Door Hinge
7W11712404 Whirlpool Screw
8W10162096 Whirlpool Screw
9BRACKET, HANDLE
10OUTER DOOR ASSEMBLY (INCLUDES HANDLE)
11HANDLE ASSEMBLY, DOOR
12WPW10276043 Whirlpool Screw
13W11193480 Whirlpool Screw
14W11361073 Whirlpool Medallion
15W10920281 Whirlpool Screw
