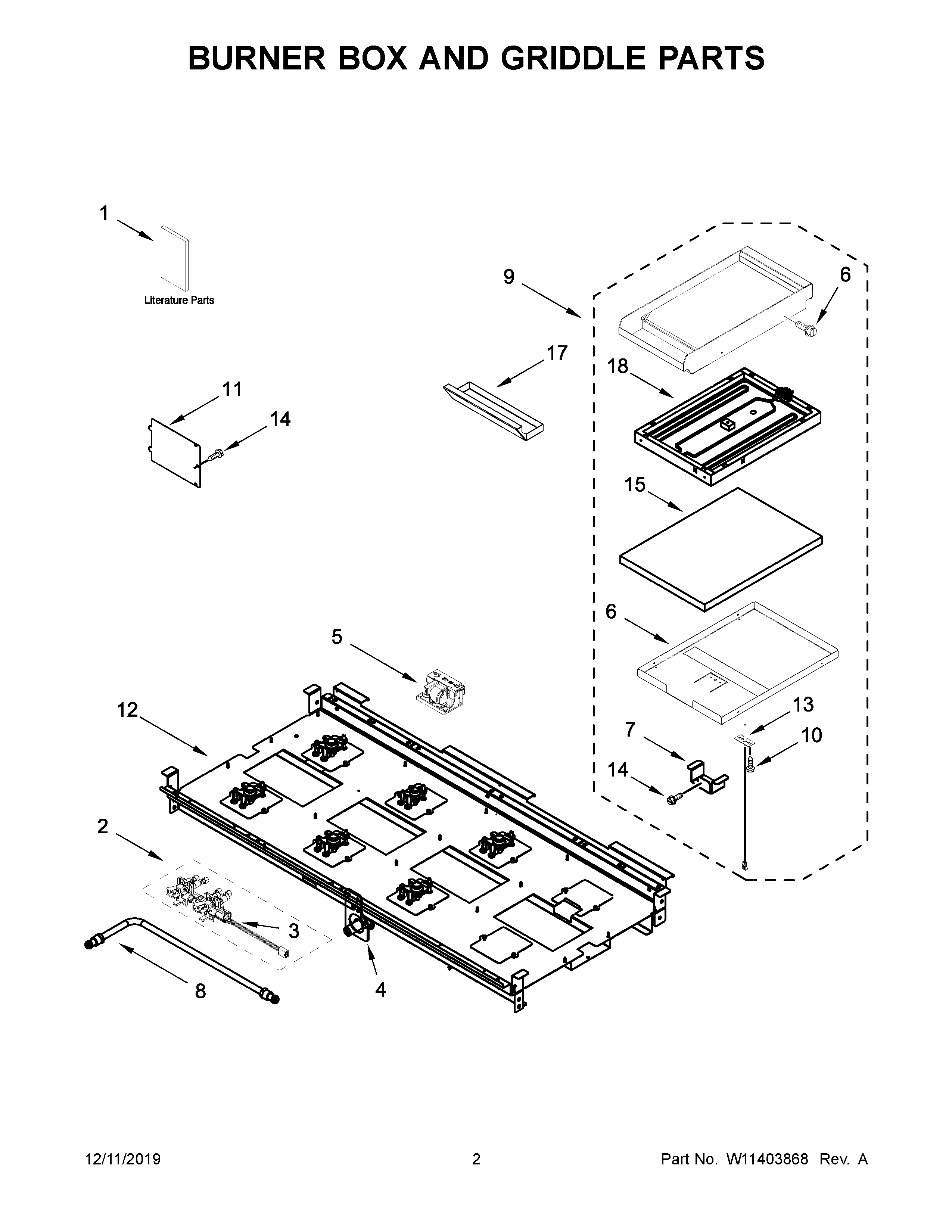

KFGC558JYP00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	W10780278 Whirlpool Wire Harness
NI	W11317787 Whirlpool Wire Harness
NI	W11317791 Whirlpool Wire Harness
NI	W11317786 Whirlpool Wire Harness
NI	W11317788 Whirlpool Wire Harness
NI	W11502161 Whirlpool Conversion Kit
NI	HARNESS, MAIN (48")
NI	W10624584 Whirlpool Power Cord
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11446236 Whirlpool Wire Harness
NI	W11446239 Whirlpool Wire Harness
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	SCREW, ANTI-TIP KIT
1B	GUIDE, INTERNET CONNECTIVITY
1C	GUIDE, QUICK START
1	GUIDE, USE AND CARE
1A	INSTALLATION INSTRUCTIONS
1D	DIAGRAM, WIRING
1E	SHEET, TECH
2B	W11378578 Whirlpool Manifold
2A	W11381269 Whirlpool Manifold Assembly
2	W11381267 Whirlpool Manifold Assembly
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	TRAY, GRIDDLE INSULATION
7	BRACKET, GRIDDLE-RTD
8	TUBE, MANIFOLD SUPPLY (LEFT)
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9	W11602621 Whirlpool Module
10	W10491985 Whirlpool Screw
11	W10115843 Whirlpool Access Cover
13	W11319618 Whirlpool Sensor
14	W10162096 Whirlpool Screw
15	INSULATION, GRIDDLE
16	W11602622 Whirlpool Griddle Assembly
17	W10276497 Whirlpool Drip Tray
18	W11319602 Whirlpool Grille Element
