KFGC558JYP02 07 – VENTING PARTS

KFGC558JYP02 07 – VENTING PARTS

Written by

in

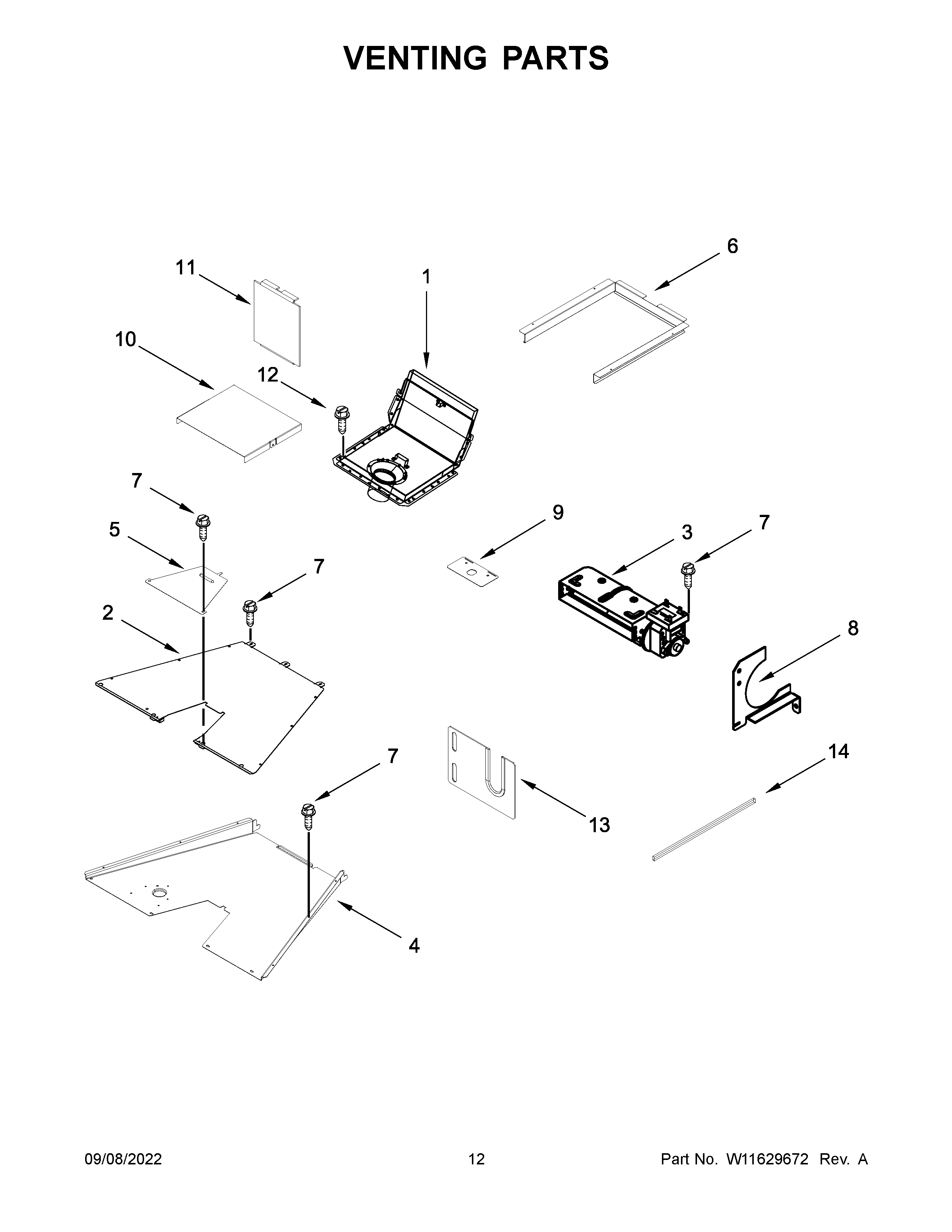

KFGC558JYP02 07 – VENTING PARTS

Products

PositionProduct
1W10340579 Whirlpool Exhaust Vent
1AVENT, CHIMNEY BOX (18 IN)
2VENT, COOLING TOP (30 IN)
2AVENT, COOLING TOP (18 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
4AVENT, COOLING BOTTOM (18 IN)
5PLATE, COOLING LATCH
6ADUCT, PRIMARY AIR (18 IN)
6DUCT, PRIMARY AIR (30 IN)
7SCREW
8BRACKET, BLOWER MOUNT
9W10115855 Whirlpool Support Bracket
10RETAINER, INSULATION
11INSULATION, CHIMNEY
12WP3400805 Whirlpool Screw Assembly
13COVER, CHANNEL
14W11175143 Whirlpool Gasket
