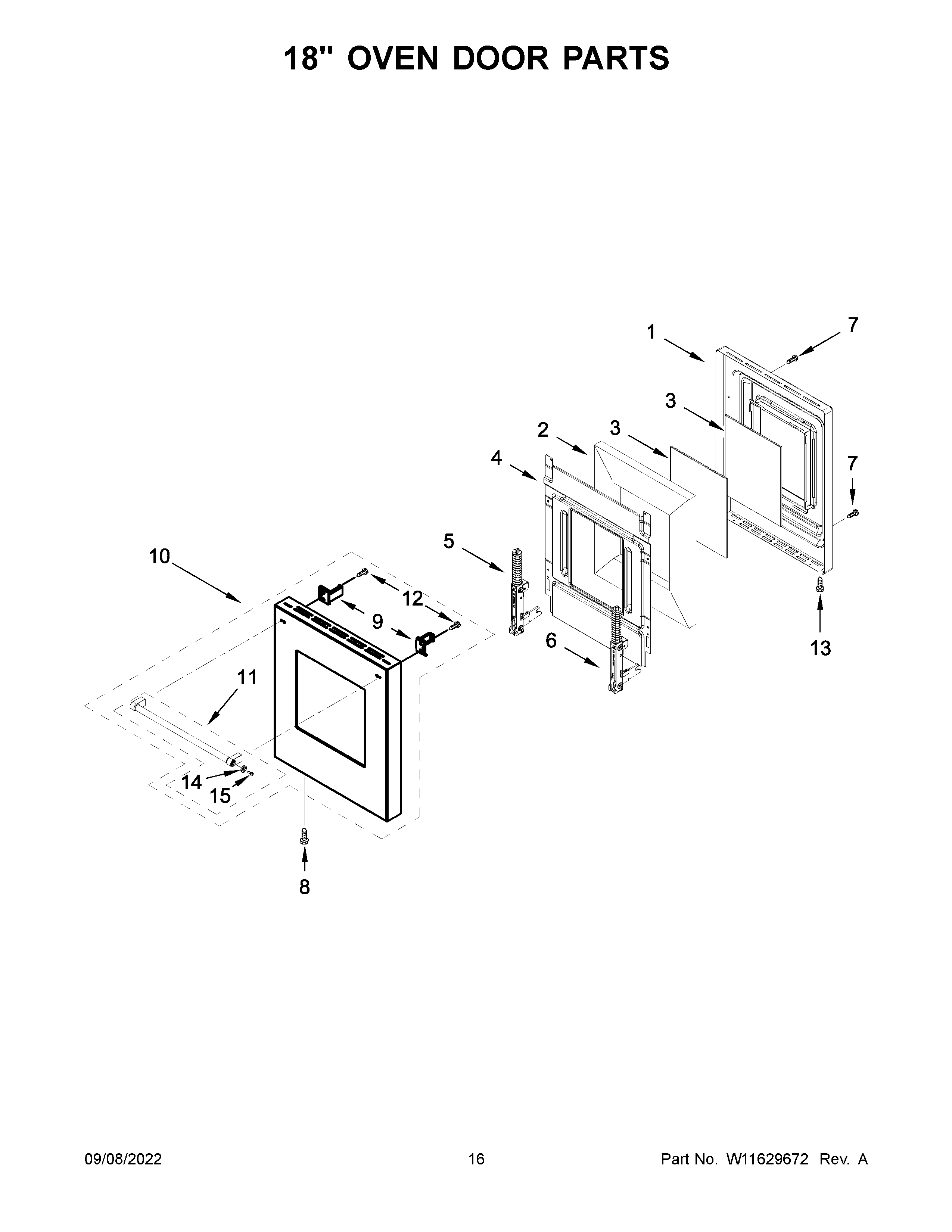

KFGC558JYP02 09 – 18″ OVEN DOOR PARTS

Products

PositionProduct
1W11318335 Whirlpool Glass Frame
2INSULATION, DOOR
3W11317951 Whirlpool Glass Door
4RETAINER, GLASS
5W11643896 Whirlpool Appliance Door Hinge
6W11643900 Whirlpool Door Hinge
7W11712404 Whirlpool Screw
8W10162096 Whirlpool Screw
9BRACKET, HANDLE
10ASSEMBLY, OUTER DOOR (INCLUDES HANDLE)
11W11512758 Whirlpool Door Handle Assembly
12WPW10276043 Whirlpool Screw
13W11193480 Whirlpool Screw
14MEDALLION, HANDLE
15W10920281 Whirlpool Screw
