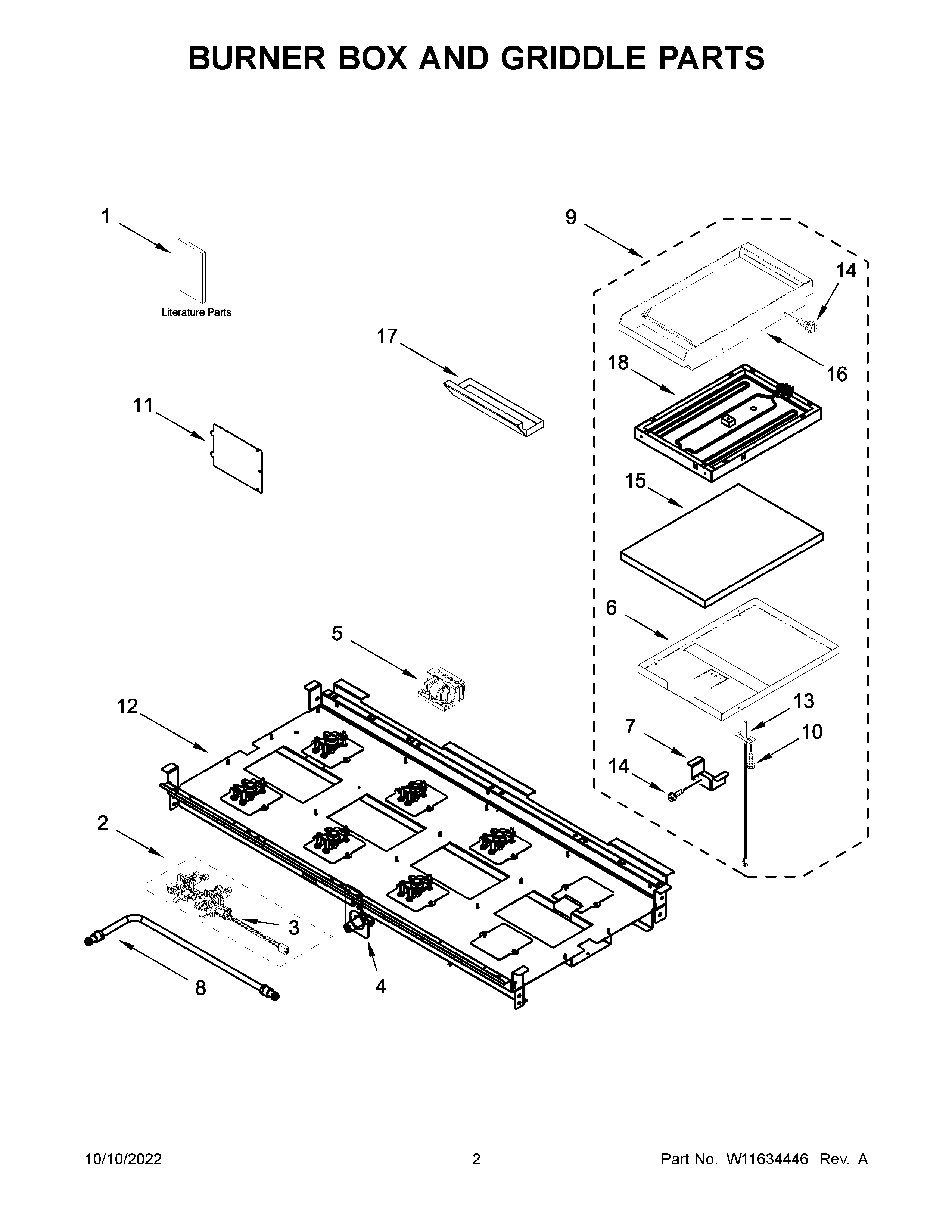

KFGC558JYP05 02 – BURNER BOX AND GRIDDLE PARTS

KFGC558JYP05 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

KFGC558JYP05 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NIW11446239 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NIW11317788 Whirlpool Wire Harness
NIW11448064 Whirlpool Wire Harness
NIW11502161 Whirlpool Conversion Kit
NIW10780278 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NISCREW, ANTI-TIP KIT
NI4450800 Whirlpool Oven Screw
NIW11544575 Whirlpool Anti-Tip Bracket
NIW10624584 Whirlpool Power Cord
NI16515 Whirlpool Clip
NIW11446236 Whirlpool Wire Harness
1ETECH SHEET
1DWIRING DIAGRAM (COOKTOP)
1USE AND CARE GUIDE
1BGUIDE, INTERNET CONNECTIVITY
1AINSTALLATION INSTRUCTIONS
1CGUIDE, QUICK START
2BW11378578 Whirlpool Manifold
2AW11381269 Whirlpool Manifold Assembly
2W11381267 Whirlpool Manifold Assembly
3W11344433 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6TRAY, GRIDDLE INSULATION
7BRACKET, GRIDDLE-RTD
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (LEFT CENTER)
8BTUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9W11602621 Whirlpool Module
10W10491985 Whirlpool Screw
11W10115843 Whirlpool Access Cover
13W11319618 Whirlpool Sensor
14W10162096 Whirlpool Screw
15INSULATION, GRIDDLE
16W11602622 Whirlpool Griddle Assembly
17W10276497 Whirlpool Drip Tray
18W11319602 Whirlpool Grille Element
