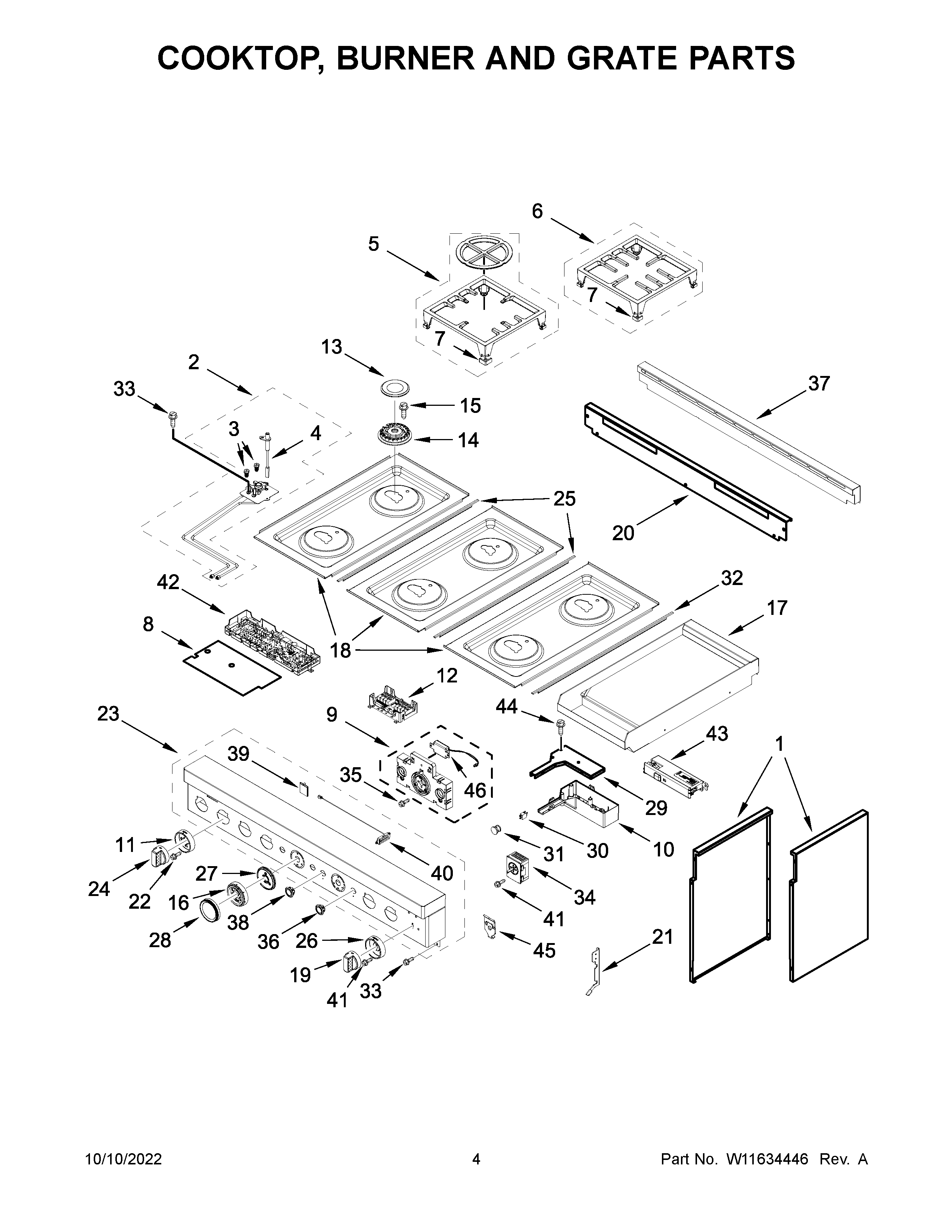

KFGC558JYP05 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1A	W11320596 Whirlpool Side Assembly
1	W11321067 Whirlpool Complete Side Assembly
2B	W11398670 Whirlpool Orifice Holder
2C	W11398674 Whirlpool Orifice Holder
2E	W11398676 Whirlpool Orifice Holder
2D	W11319743 Whirlpool Dishwasher Orifice Holder
2A	W11384764 Whirlpool Range Orifice Holder
2	W11333305 Whirlpool Holder Orifice
3B	W11661909 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
3C	W10892438 Whirlpool Orifice Spud
3A	W11672510 Whirlpool Spud Orifice
4A	W11114379 Whirlpool Appliance Surface Igniter
4B	W11628654 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5	W11380124 Whirlpool Burner Grate
6	W11380128 Whirlpool Burner Grate
7	W11550692 Whirlpool Bumper
8	W11320149 Whirlpool Insulator
9	W11492304 Whirlpool Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11380146 Whirlpool Knob Bezel
11A	W11380145 Whirlpool Knob Bezel
12	W11355250-includeCORE Whirlpool W11355250 Refrigerator Electronic Control Board + Core
13	W11344538 Whirlpool Surface Burner Cap
14B	W11344746 Whirlpool Burner Head
14	W11344539 Whirlpool Burner Head
14A	W11344742 Whirlpool Burner Head
15	W11643628 Whirlpool Screw
15A	W11678580 Whirlpool Screw
16A	KNOB
16	W11500864 Whirlpool Knob Assembly
18	W11344755 Whirlpool Cooktop
18B	W11392645 Whirlpool Cooktop
18A	W11344757 Whirlpool Cooktop
19	W11392643 Whirlpool Knob
20	W10323252 Whirlpool Trim Top
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	W11509770 Whirlpool Screw
23	W11402036 Whirlpool Control Panel
24	W11380561 Whirlpool Knob
24A	W11380562 Whirlpool Knob Assembly
25	W10271524 Whirlpool Trim Top
26	W11388057 Whirlpool Knob Bezel
27	WPL W11500871
28	WPL W11500869
28A	W11548477 Whirlpool Knob
29	WPL W11205794
30	W10116114 Whirlpool Indicator Light
31	W10294500 Whirlpool Light Lens
32	W10291193 Whirlpool Trim Top
33	SCREW
34	W11318834 Whirlpool Infinite Heat Switch
35	WP3400814 Whirlpool Screw
36	W11241510 Whirlpool Push Button
37	W11516014 Whirlpool Trim Top
38	W11241511 Whirlpool Push Button
39	W10896366 Whirlpool Light Indicator
40	W11318855 Whirlpool Antenna
41	WPL 7101P30960
42	W11620687-includeCORE Whirlpool W11620687 Refrigerator Electronic Control Board with Core
43	W11234290 Whirlpool Electronic Control Board
44	WPL 7101P62460
45	W11318207 Whirlpool Clip Assembly
46	W11123146 Whirlpool Speaker
