KFGD500EBL01 06 – UPPER DOOR PARTS

KFGD500EBL01 06 – UPPER DOOR PARTS

Written by

in

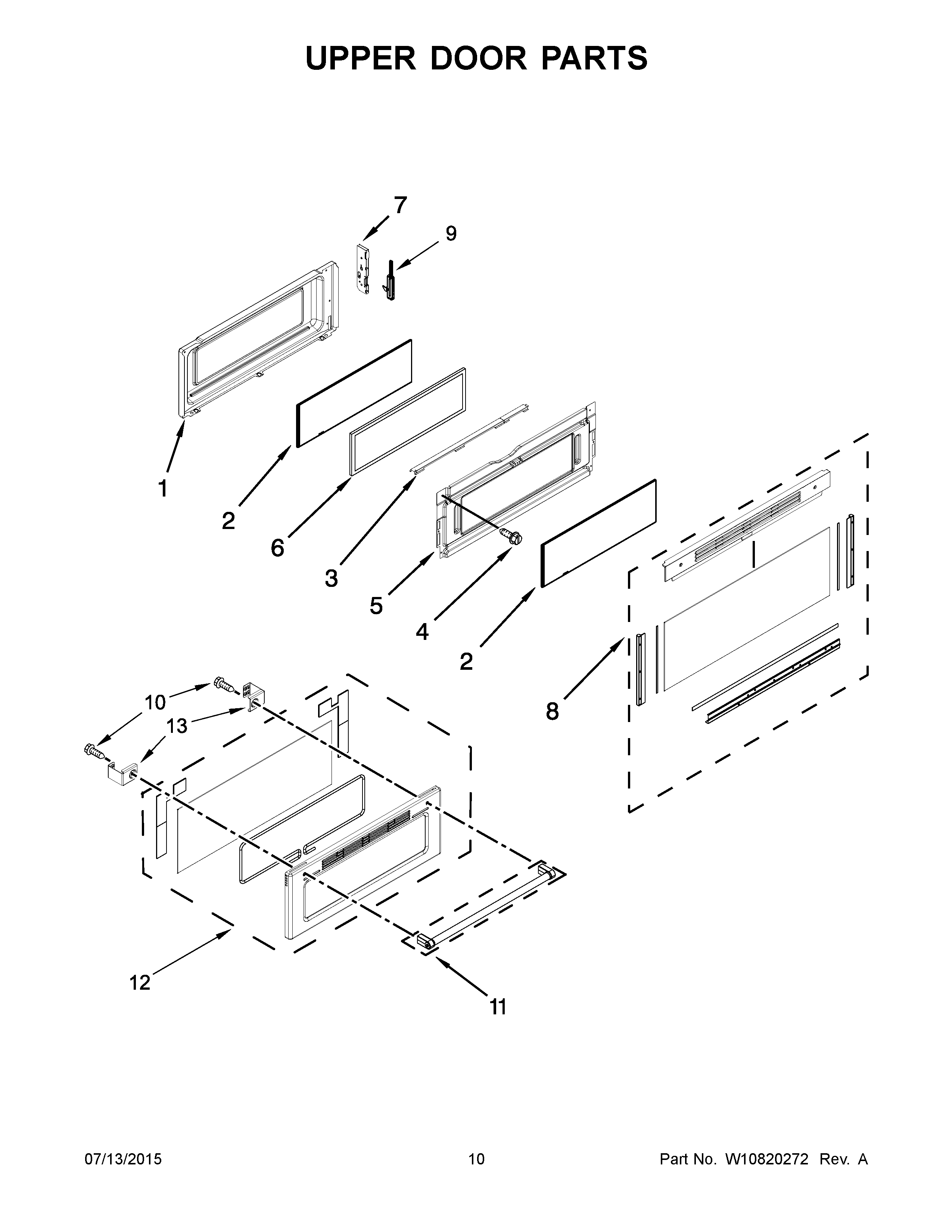

KFGD500EBL01 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11103615 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8AW10789063 Whirlpool Door Glass
8W10789064 Whirlpool Door Glass
9WPW10485733 Whirlpool Door Hinge
9AWPW10485732 Whirlpool Door Hinge
10W10831019 Whirlpool Stove Door Screw
11BW11305108 Whirlpool Door Handle
11W10674700 Whirlpool Door Handle
11AW10674699 Whirlpool Door Handle
12W10777615 Whirlpool Door Glass Assembly
13W10645182 Whirlpool Mounting Bracket
