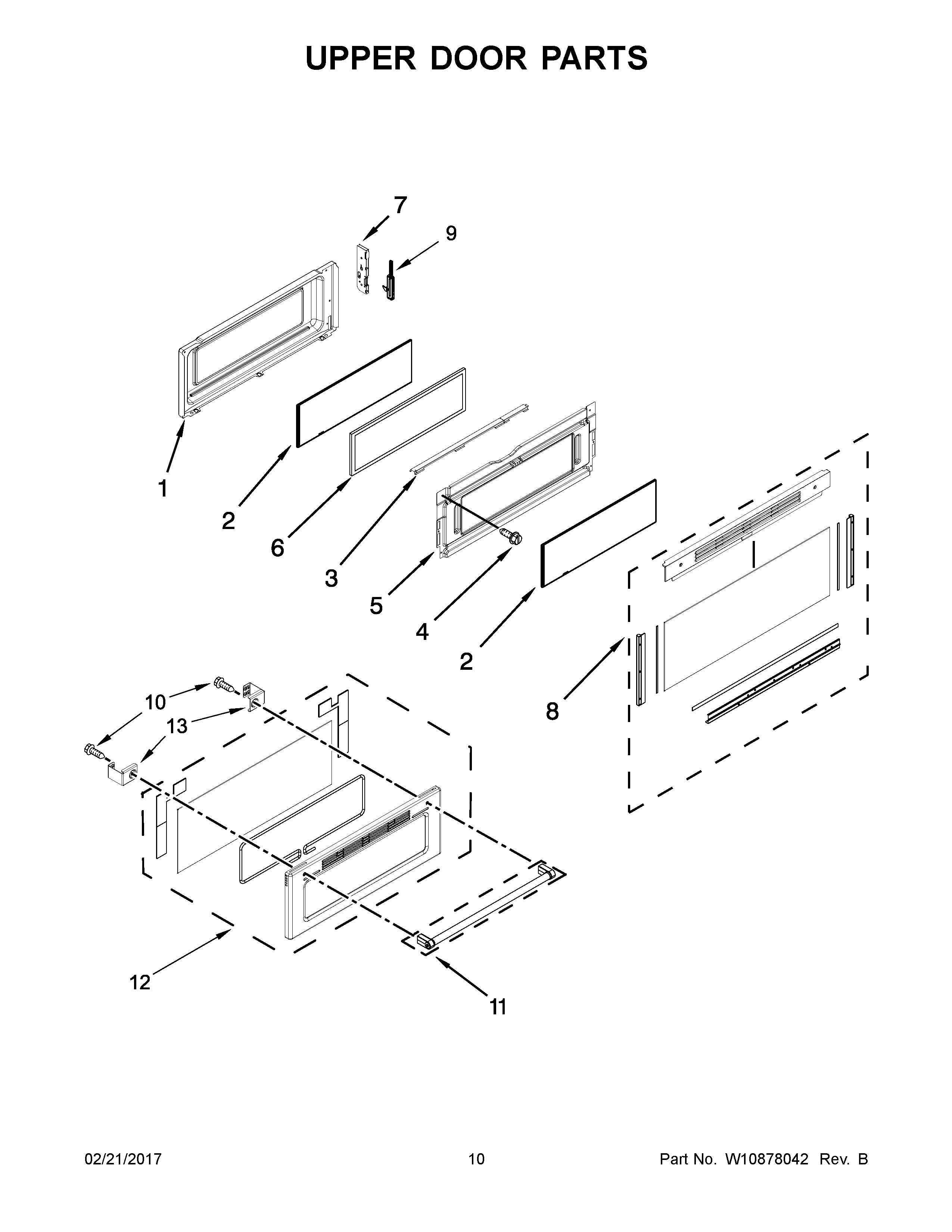

KFGD500EBL02 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10647259 Whirlpool Hinge Receiver
8A	W10789063 Whirlpool Door Glass
8	W10789064 Whirlpool Door Glass
9	WPW10485733 Whirlpool Door Hinge
9A	WPW10485732 Whirlpool Door Hinge
10	W10831019 Whirlpool Stove Door Screw
11B	W11305108 Whirlpool Door Handle
11	W10674700 Whirlpool Door Handle
11A	W10674699 Whirlpool Door Handle
12	W10777615 Whirlpool Door Glass Assembly
13	W10645182 Whirlpool Mounting Bracket
