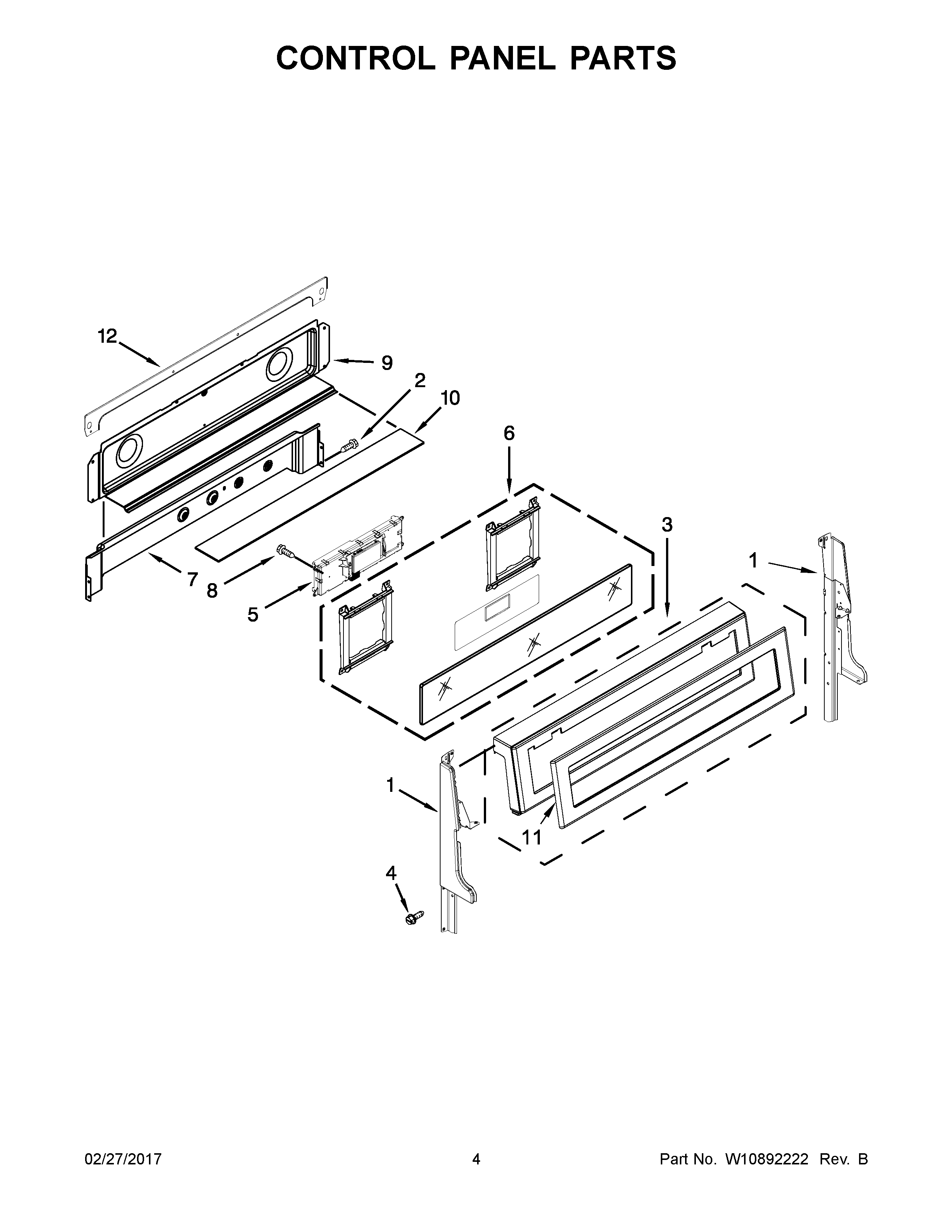

KFGD500EBL04 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W10319112 Whirlpool Panel Endcap
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
1B	W10319110 Whirlpool Endcap Panel
2	SCREW
4	Screw
5	W10877013 Whirlpool Electronic Control Board + Core
6A	W11430948 Whirlpool Dishwasher Control Panel
6	W11430942 Whirlpool Control Panel
7	W10278697 Whirlpool Vent Shield Assembly
8	SCREW
9	W10776098 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
11A	W10645847 Whirlpool Control Panel
11	W10645846 Whirlpool Control Panel
11B	W11164063 Whirlpool Control Panel
12	WPW10292689 Whirlpool Wire Cover
