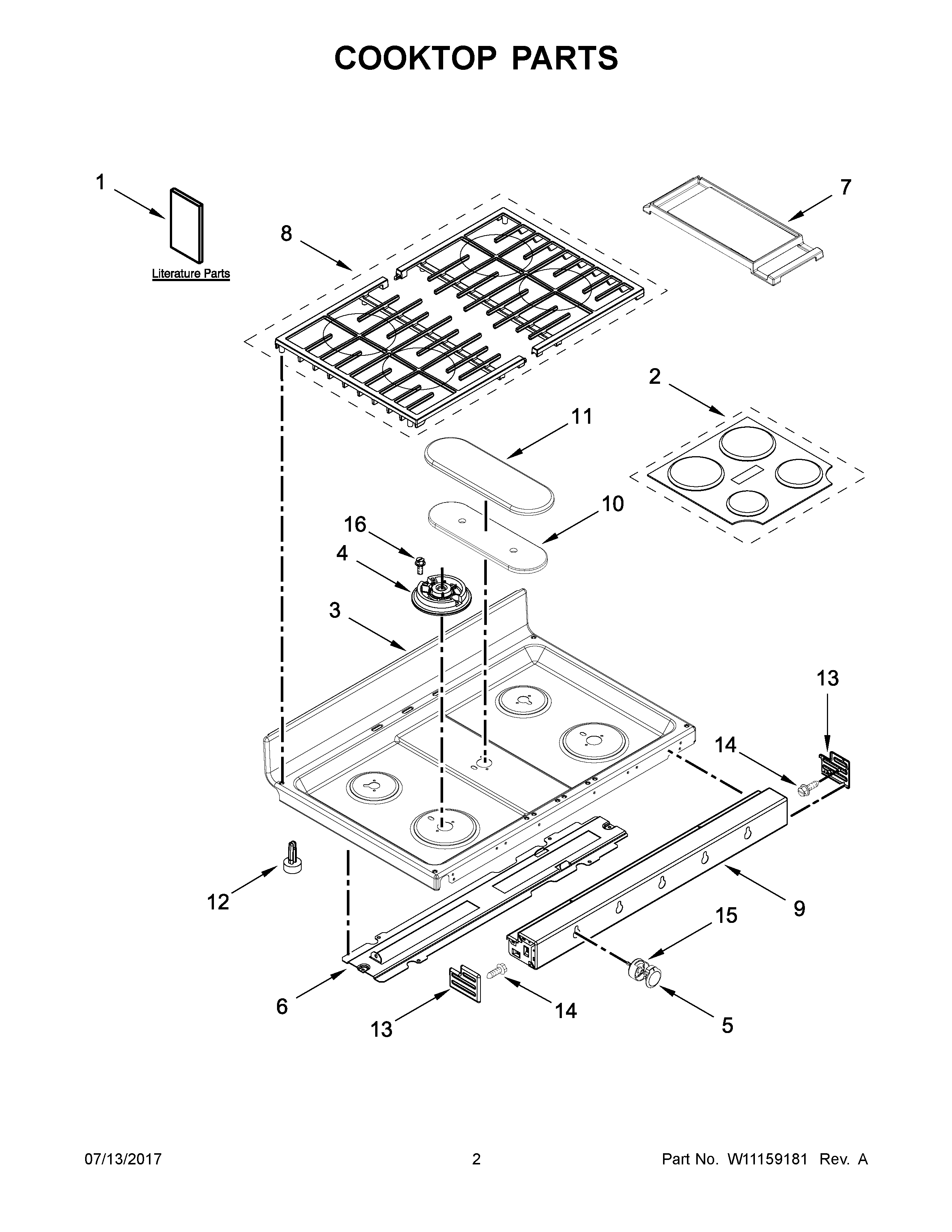

KFGD500EBS00 02 – COOKTOP PARTS

Products

Position	Product
NI	W11172531 Whirlpool Wire Harness
NI	WASHER
NI	W10745674 Whirlpool Wire Harness
NI	W11172428 Whirlpool Wire Harness
NI	CLAMP, WIRE
NI	W10408058 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10519934 Whirlpool Wire Harness
1B	SHEET, TECH
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
2	WPW10299236 Whirlpool Burner Cap
3	W10336330 Whirlpool Cooktop
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4C	WPW10336094 Whirlpool Burner Assembly Top
4	WPW10406878 Whirlpool Burner Base (16K)
5	W11030413 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	W10432544 Whirlpool Range Griddle
8	W11673268 Whirlpool Grate Kit
9	W10708335 Whirlpool Manifold Panel
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12	GLIDE, MAIN TOP
13	W10719582 Whirlpool Endcap Panel
13A	W10719581 Whirlpool Panel End Cap
14	W10491985 Whirlpool Screw
15	W10814133 Whirlpool Knob Bezel
16	WP3368921 Whirlpool Screw
