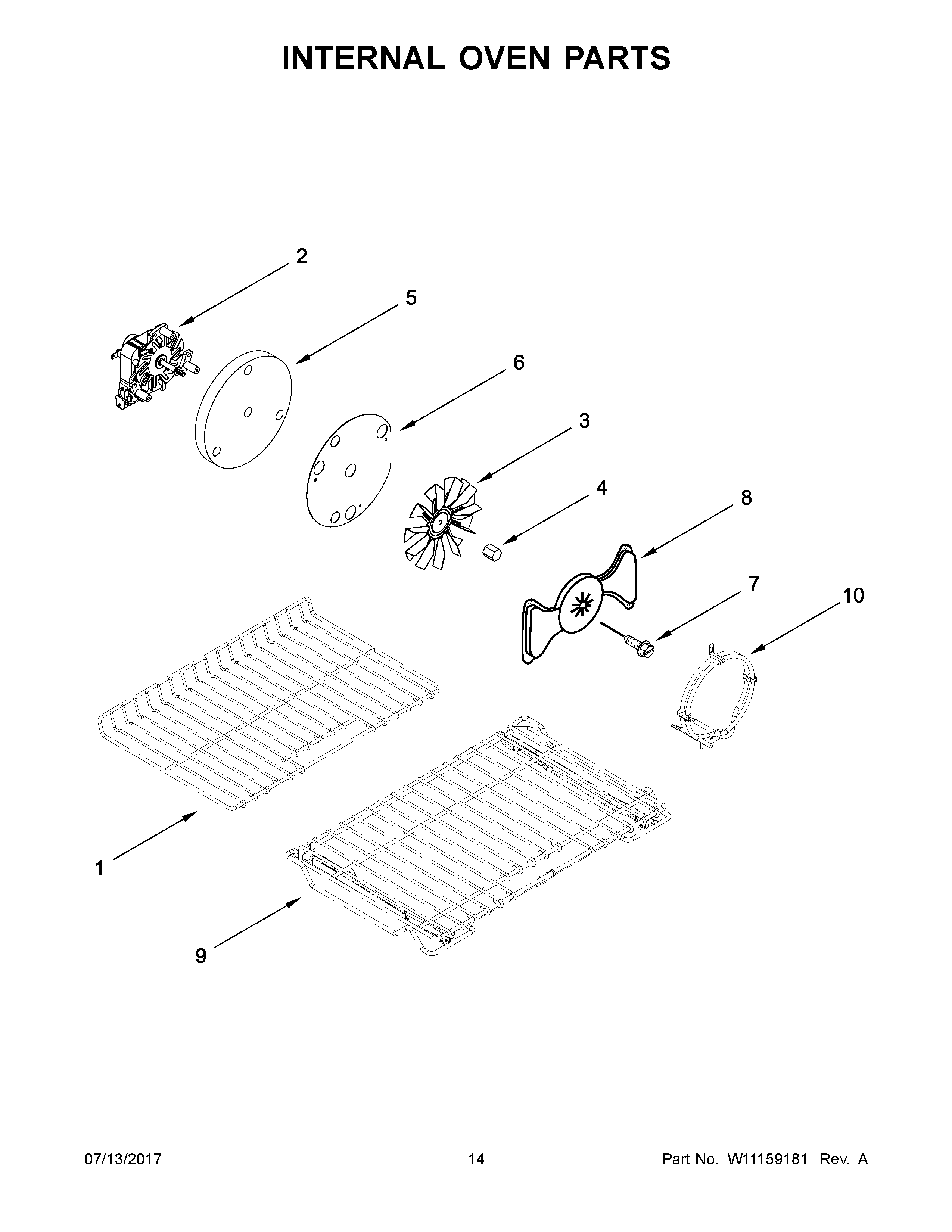

KFGD500EBS00 08 – INTERNAL OVEN PARTS

KFGD500EBS00 08 – INTERNAL OVEN PARTS

Written by

in

KFGD500EBS00 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1W11550107 Whirlpool Oven Rack
2W10794440 Whirlpool Fan Motor
3W10819914 Whirlpool Convection Fan
4W10794042 Whirlpool Nut
5W10274268 Whirlpool Insulation
6W10339476 Whirlpool Bracket Mounting
7WP4449154 Whirlpool Screw
8BAFFLE, CONVECTION
9WPW10570870 Whirlpool Oven Rack
10W10249980 Whirlpool Element
