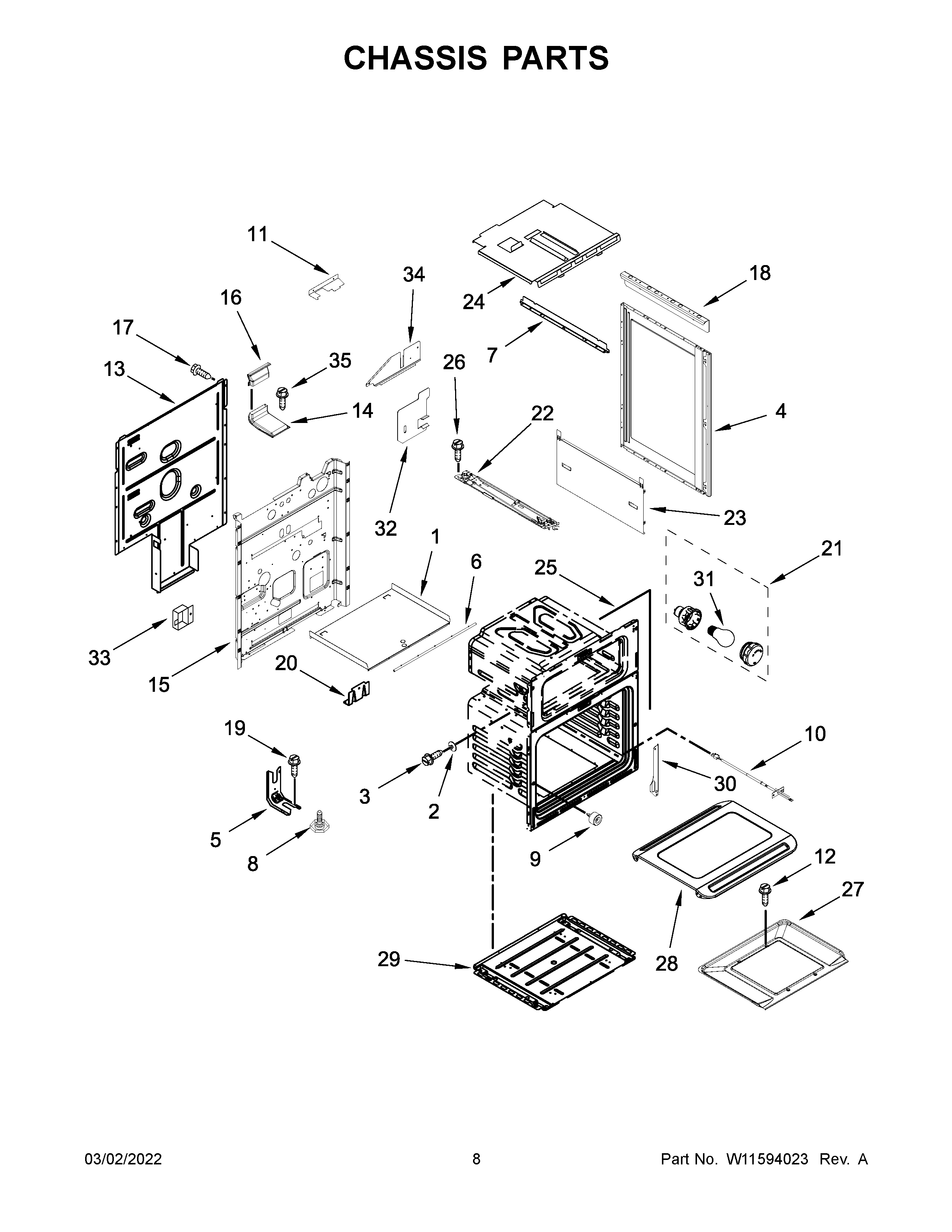

KFGD500EBS05 05 – CHASSIS PARTS

Products

Position	Product
NI	W11685611 Whirlpool Insulation
NI	W11684769 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684919 Whirlpool Insulation
NI	W11688777 Whirlpool Insulation
NI	W11688385 Whirlpool Insulation
1	W10319038 Whirlpool Heat Shield
2	W11594028 Whirlpool Spacer Panel
3	SCREW
4	W11595910 Whirlpool Side Panel
5	BRACKET, ANTI TIP
6	W10319000 Whirlpool Oven Gasket Assembly
7	W10357697 Whirlpool Spacer Panel
8	FOOT, LEVELER
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	WP12992902 Whirlpool Refrigerator Screw
13	WPW10261387 Whirlpool Wire Cover
14	W11243157 Whirlpool Oven Flue
14A	W10272519 Whirlpool Oven Flue
15	W10668728 Whirlpool Rear Cover Assembly
16	W10321446 Whirlpool Oven Flue
16A	W10321445 Whirlpool Oven Flue Assembly
17	SCREW
18	W10319087 Whirlpool Support Bracket
19	SCREW, ANTI-TIP KIT
20	SUPPORT, LOWER OVEN
21	W11594027 Whirlpool Range Oven Light Socket
22	W11166856 Whirlpool Door Latch
23	SHIELD-SIDE INSULATION
24	W10324643 Whirlpool Support
25A	W11594140 Whirlpool Door Gasket
25	GASKET, OVEN DOOR (UPPER)
26	SCREW
27	W10777398 Whirlpool Oven Bottom
28	WPW10272546 Whirlpool Broiler Pan
29	BASE, CHASSIS
30	W10410463 Whirlpool Cover Assembly
30A	W10410461 Whirlpool Cover
31	RANGE ONLY 40W 120V APPL BULB
32	COVER, OUTER MAIN BACK
33	8285593 Whirlpool Oven Wire Cover
34	COVER, INNER MAIN BACK
35	SCREW
