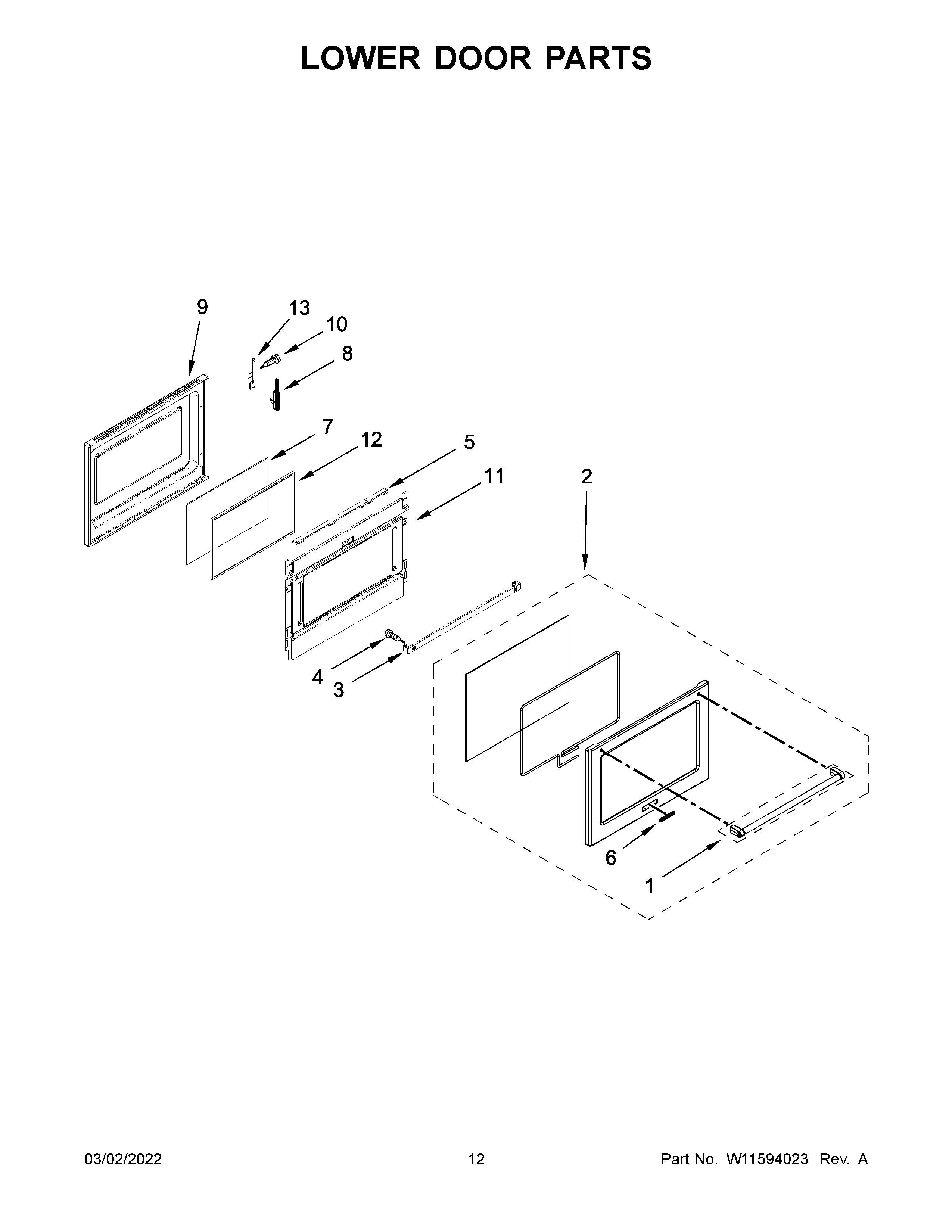

KFGD500EBS05 07 – LOWER DOOR PARTS

KFGD500EBS05 07 – LOWER DOOR PARTS

Written by

in

KFGD500EBS05 07 – LOWER DOOR PARTS

Products

PositionProduct
1HNDLE-DOOR
2ASSEMBLY, DOOR (BLACK STAINLESS)
3W10575689 Whirlpool Mounting Bracket
4WPW10317886 Whirlpool Screw
5WPW10272594 Whirlpool Window Frame
6W10839793 Whirlpool Refrigerator Nameplate
7WP9757706 Whirlpool Door Inner Glass
8WPW10335434 Whirlpool Door Hinge
8AWPW10335433 Whirlpool Door Hinge
9WPW10272698 Whirlpool Dishwasher Door Liner
10WPW10292297 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13AWPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
