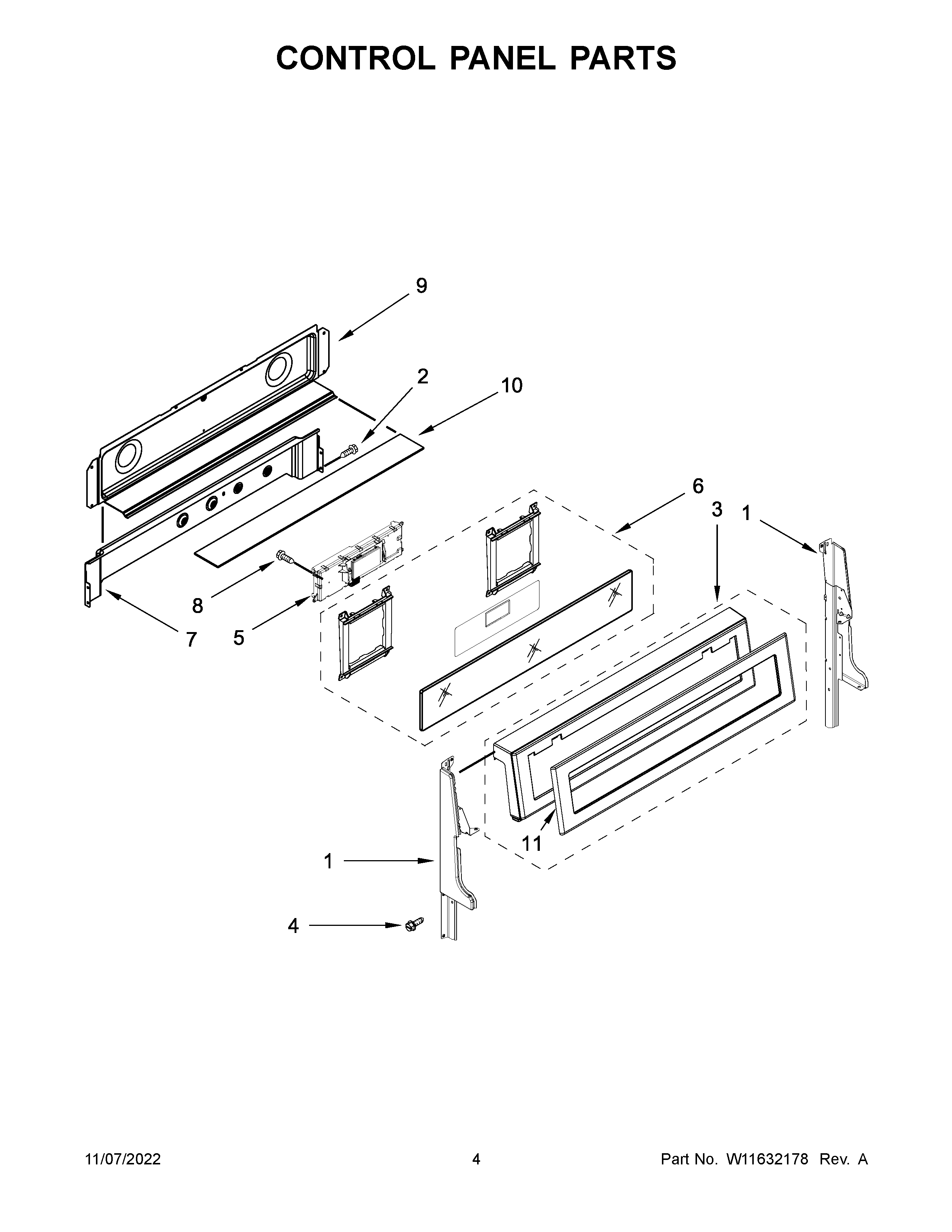

KFGD500EBS10 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10319109 Whirlpool Endcap Panel
1A	SUPPORT, BACK GUARD (RIGHT HAND)
2	SCREW
3	W11084228 Whirlpool Control Panel
4	Screw
5	W11620682 Whirlpool Electronic Control Board + Core
6	W11430942 Whirlpool Control Panel
7	W10278697 Whirlpool Vent Shield Assembly
8	W11245710 Whirlpool Refrigerator Screw
9	W10776098 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
11	CABINET (NOT A SERVICEABLE PART)
