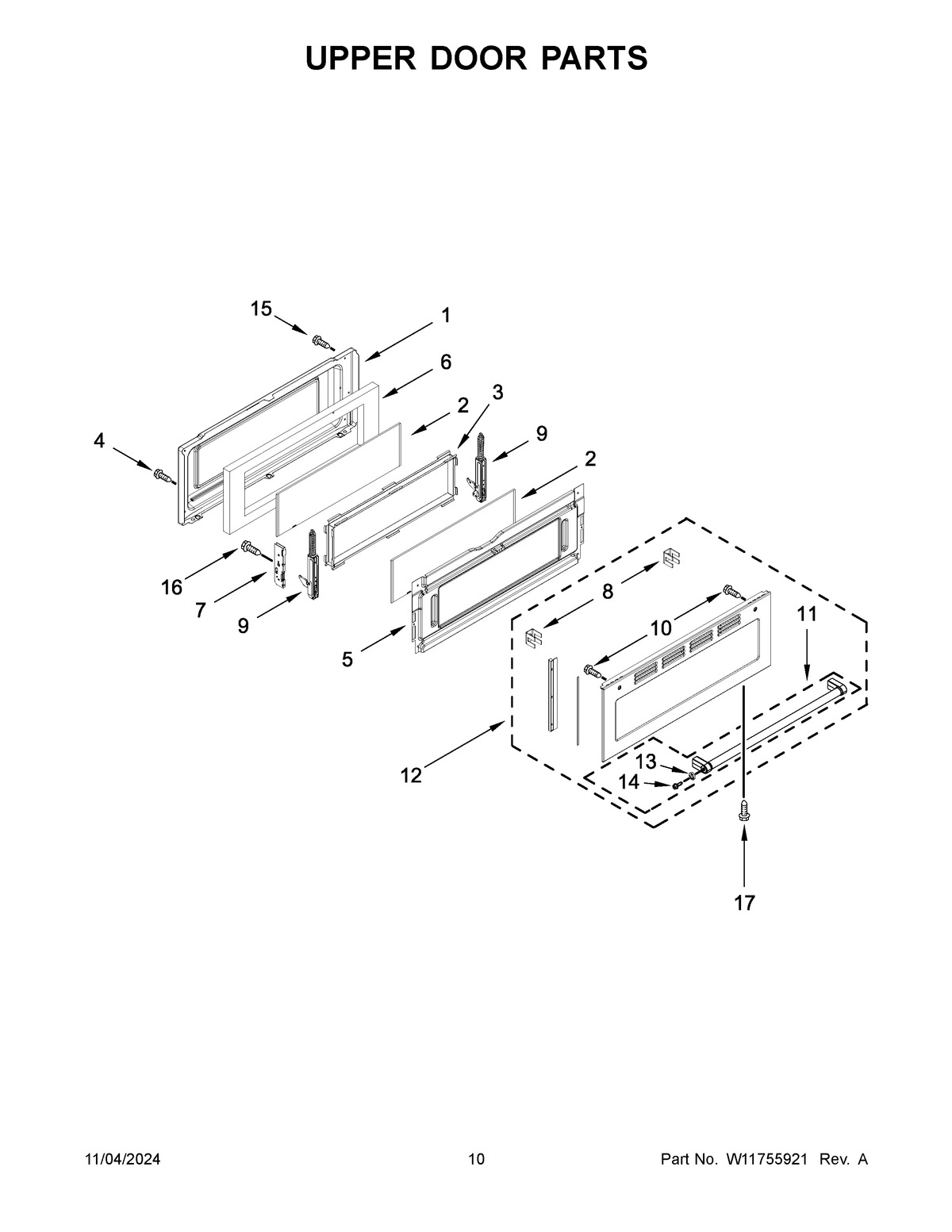

KFGD500EBS11 06 – UPPER DOOR PARTS

KFGD500EBS11 06 – UPPER DOOR PARTS

Written by

in

KFGD500EBS11 06 – UPPER DOOR PARTS

Products

PositionProduct
1W11051040 Whirlpool Door Liner
2W11132120 Whirlpool Glass Door
3WPW10272708 Whirlpool Window Frame
4WPW10292297 Whirlpool Screw
5W10485723 Whirlpool Retainer
6WPW10321271 Whirlpool Insulation Assembly
7W10647259 Whirlpool Hinge Receiver
8W10575917 Whirlpool Spacer
9AWPW10485732 Whirlpool Door Hinge
9WPW10485733 Whirlpool Door Hinge
10W10831019 Whirlpool Stove Door Screw
11HNDLE-DOOR
12W11156495 Whirlpool Door Glass
13W10846207 Whirlpool KA Handle MEDALLIONS-RED
14W10920281 Whirlpool Screw
15WPW10317886 Whirlpool Screw
16W10777162 Whirlpool Screw
17W11690596 Whirlpool Screw
