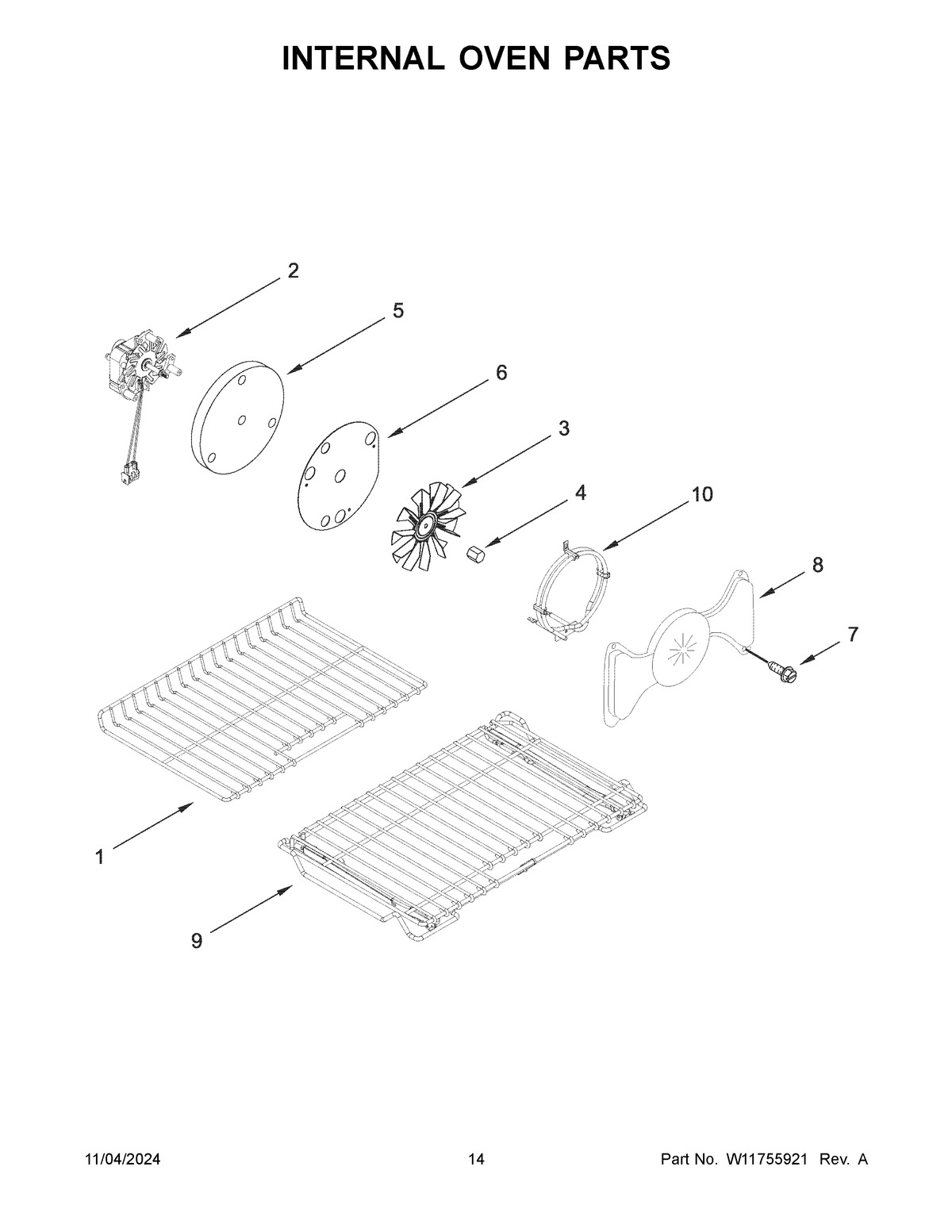

KFGD500EBS11 08 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	W11550107 Whirlpool Oven Rack
2	W10794440 Whirlpool Fan Motor
3	W10819914 Whirlpool Convection Fan
4	W10794042 Whirlpool Nut
5	W10274268 Whirlpool Insulation
6	W10339476 Whirlpool Bracket Mounting
7	W10850807 Whirlpool Screw
8	BAFFLE, CONVECTION
9	WPW10570870 Whirlpool Oven Rack
10	W10249980 Whirlpool Element
