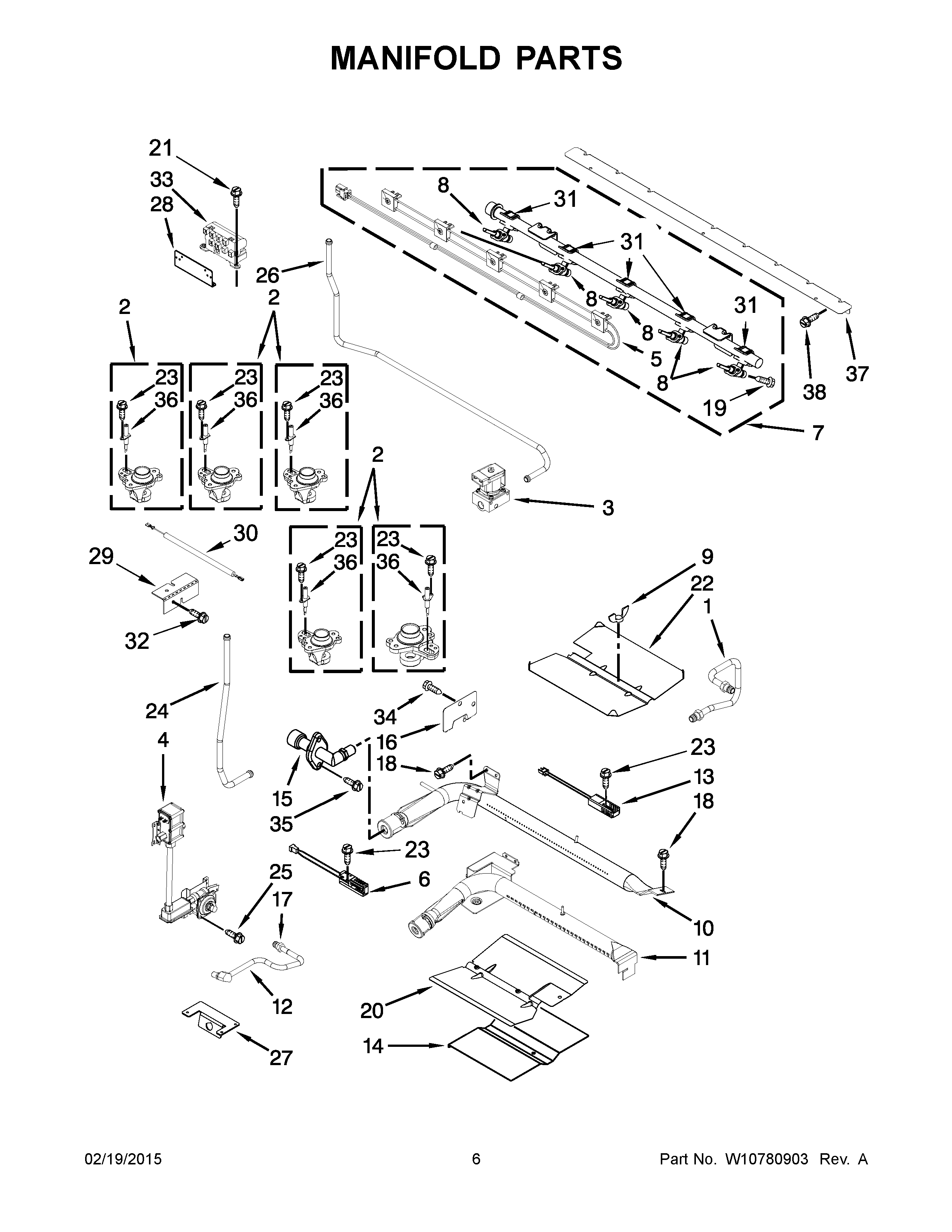

KFGD500ESS00 04 – MANIFOLD PARTS

Products

PositionProduct
NIW11674161 Whirlpool Range Orifice Spud
NICABINET (NOT A SERVICEABLE PART)
NIW10324646 Whirlpool Insulation
1W10319002 Whirlpool Gas Tubing
2DW10643272 Whirlpool Orifice Holder
2CW10643271 Whirlpool Orifice Holder
2BW11685612 Whirlpool Range Orifice Holder
2AW10643269 Whirlpool Orifice Holder
2W11230935 Whirlpool Orifice Holder
3W10911971 Whirlpool Solenoid Valve
4WPW10546238 Whirlpool Gas Valve
5W11241684 Whirlpool Wire Harness
6WPW10324738 Whirlpool Oven Igniter
7W10814136 Whirlpool Manifold
8AW10718182 Whirlpool Burner Valve
8W11740802 Whirlpool Burner Valve
8BW10718181 Whirlpool Burner Valve
9NUT, WING
10W11245221 Whirlpool Broiler Burner
11W11174122 Whirlpool Oven Burner
12W10342662 Whirlpool Gas Tubing
12AW10342661 Whirlpool Gas Tubing
13IGNITOR, BAKE
14W10298865 Whirlpool Heat Shield Assembly
15W10292293 Whirlpool Fitting
16COVER, IGNITOR WIRE
17NUT, MOUNTING
18SCREW
19W10295997 Whirlpool Screw
20W10272528 Whirlpool Burner Baffle
21SCREW
22BAFFLE, BROIL BURNER
23SCREW
24W10524331 Whirlpool Gas Tubing
25SCREW (BLACK)
26W10642388 Whirlpool Gas Tubing
27BRACKET, ORIFICE
28W10319059 Whirlpool Support Bracket
29W10324366 Whirlpool Shield
30W10636384 Whirlpool Extension
31W10949105 Whirlpool Mounting Bracket
32W10217535 Whirlpool Screw
33MODULE, SPARK
34SCREW
35SCREW
36WPW10407676 Whirlpool Surface Igniter
36AW10407677 Whirlpool Surface Igniter
37WPW10276466 Whirlpool Support Bracket
38SCREW
