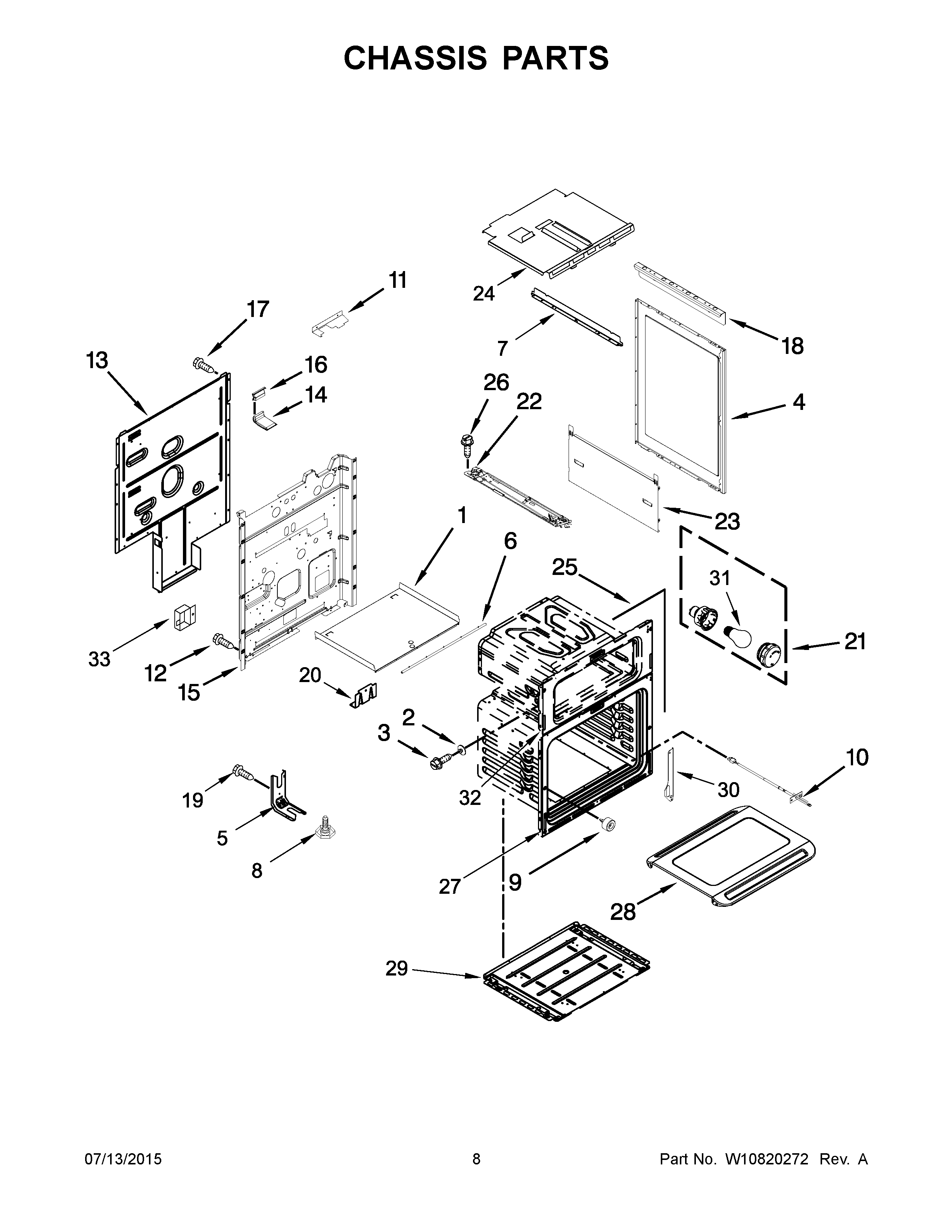

KFGD500ESS01 05 – CHASSIS PARTS

KFGD500ESS01 05 – CHASSIS PARTS

Products

PositionProduct
NIW11684769 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688777 Whirlpool Insulation
NIW11688385 Whirlpool Insulation
NIW11685611 Whirlpool Insulation
NIW11684919 Whirlpool Insulation
1W10319038 Whirlpool Heat Shield
2WPW10237689 Whirlpool Spacer Panel
3WPW10267456 Whirlpool Screw
4ASSEMBLY, SIDE PANEL (BLACK)
4AWPW10330376 Whirlpool Side Panel
5BRACKET, ANTI TIP
6W10319000 Whirlpool Oven Gasket Assembly
7W10357697 Whirlpool Spacer Panel
8FOOT, LEVELER
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11COVER, LOWER WIRE
12SCREW (BLACK)
13WPW10261387 Whirlpool Wire Cover
14AW10272519 Whirlpool Oven Flue
14W11243157 Whirlpool Oven Flue
15W10668728 Whirlpool Rear Cover Assembly
16AW10321445 Whirlpool Oven Flue Assembly
16W10321446 Whirlpool Oven Flue
17SCREW
18W10319087 Whirlpool Support Bracket
19SCREW, ANTI-TIP KIT
20W10260703 Whirlpool Support
21W11594027 Whirlpool Range Oven Light Socket
22W11166856 Whirlpool Door Latch
23SHIELD-SIDE INSULATION
24W10324643 Whirlpool Support
25W10318928 Whirlpool Door Gasket
25AWPW10269069 Whirlpool Door Gasket
26SCREW
27WPW10308654 Whirlpool Front Frame
28WPW10292551 Whirlpool Broil Pan
29W10312768 Whirlpool Base Unit
30W10410463 Whirlpool Cover Assembly
30AW10410461 Whirlpool Cover
31RANGE ONLY 40W 120V APPL BULB
32W10606341 Whirlpool Front Frame
338285593 Whirlpool Oven Wire Cover
