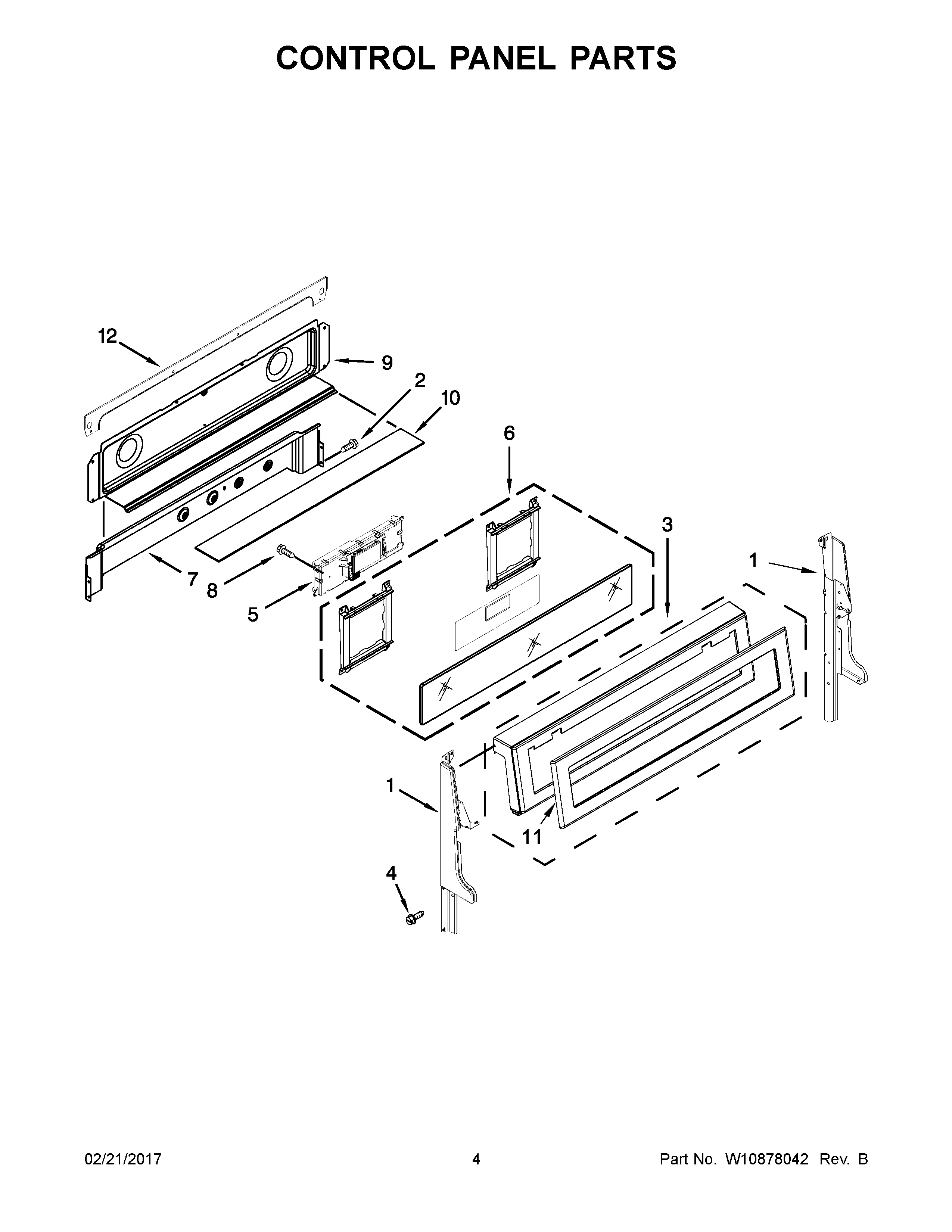

KFGD500ESS02 03 – CONTROL PANEL PARTS

KFGD500ESS02 03 – CONTROL PANEL PARTS

Written by

in

KFGD500ESS02 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW10319112 Whirlpool Panel Endcap
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
1BW10319110 Whirlpool Endcap Panel
2SCREW
4Screw
5W10877013 Whirlpool Electronic Control Board + Core
6AW11430948 Whirlpool Dishwasher Control Panel
6W11430942 Whirlpool Control Panel
7W10278697 Whirlpool Vent Shield Assembly
8SCREW
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
11AW10645847 Whirlpool Control Panel
11W10645846 Whirlpool Control Panel
11BW11164063 Whirlpool Control Panel
12WPW10292689 Whirlpool Wire Cover
