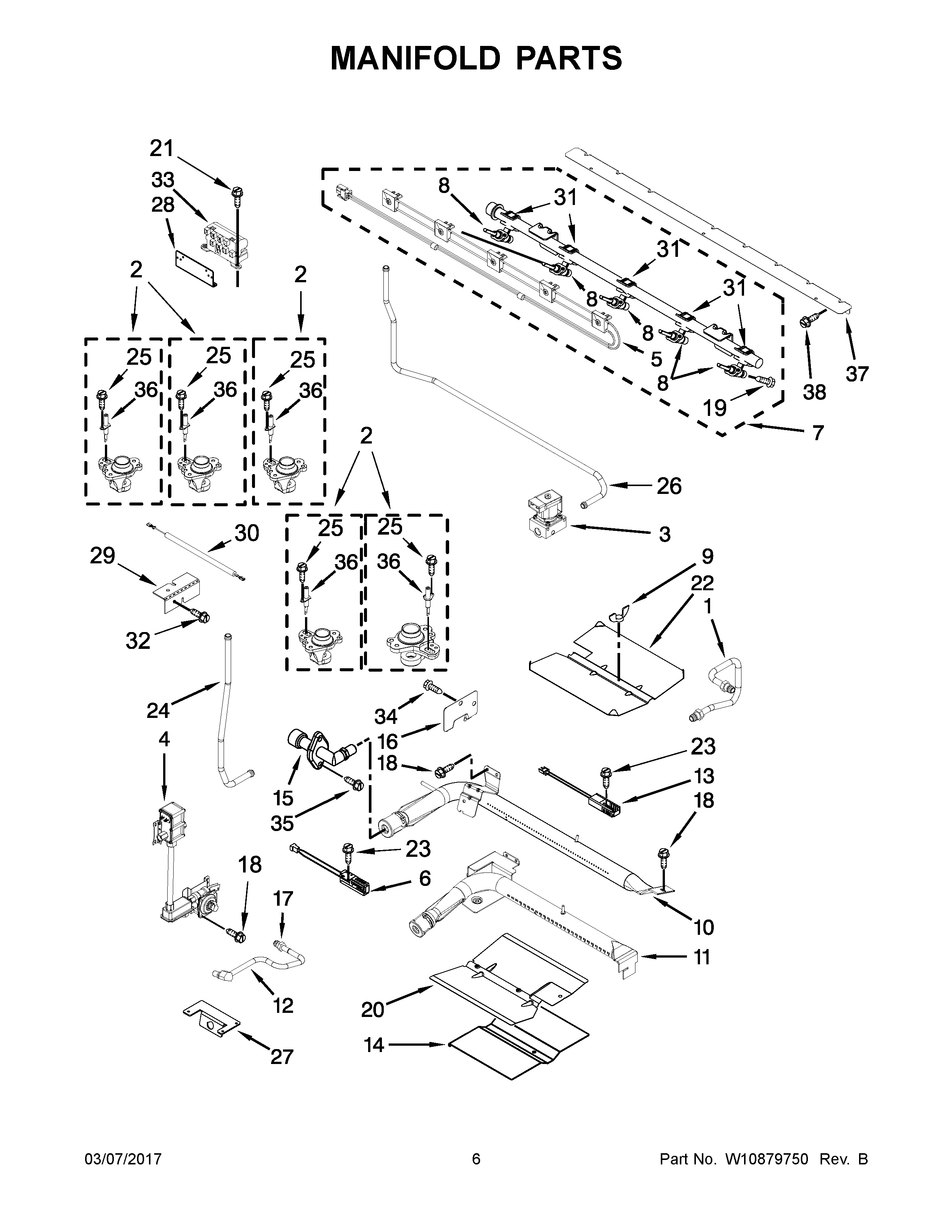

KFGD500ESS03 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11674161 Whirlpool Range Orifice Spud
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10324646 Whirlpool Insulation
1	W10319002 Whirlpool Gas Tubing
2C	W10643271 Whirlpool Orifice Holder
2D	W10643272 Whirlpool Orifice Holder
2B	W11685612 Whirlpool Range Orifice Holder
2A	W10643269 Whirlpool Orifice Holder
2	W11230935 Whirlpool Orifice Holder
3	W10911971 Whirlpool Solenoid Valve
4	WPW10546238 Whirlpool Gas Valve
5	W11241684 Whirlpool Wire Harness
6	WPW10324738 Whirlpool Oven Igniter
7	W11684563 Whirlpool Range Manifold
8	W11740802 Whirlpool Burner Valve
8A	W10718182 Whirlpool Burner Valve
8B	W10718181 Whirlpool Burner Valve
9	NUT, WING
10	W11245221 Whirlpool Broiler Burner
11	W11174122 Whirlpool Oven Burner
12	W10342662 Whirlpool Gas Tubing
12A	W10342661 Whirlpool Gas Tubing
13	IGNITOR, BAKE
14	W10298865 Whirlpool Heat Shield Assembly
15	W10292293 Whirlpool Fitting
16	COVER, IGNITOR WIRE
17	NUT, MOUNTING
18	SCREW
19	W10295997 Whirlpool Screw
20	W10272528 Whirlpool Burner Baffle
21	SCREW
22	BAFFLE, BROIL BURNER
23	SCREW
24	W10524331 Whirlpool Gas Tubing
25	WP8273062 Whirlpool Screw
26	W10642388 Whirlpool Gas Tubing
27	BRACKET, ORIFICE
28	W10319059 Whirlpool Support Bracket
29	W10324366 Whirlpool Shield
30	W10636384 Whirlpool Extension
31	W10949105 Whirlpool Mounting Bracket
32	W10217535 Whirlpool Screw
33	MODULE, SPARK
34	SCREW
35	SCREW
36A	W10637673 Whirlpool Surface Igniter
36	W11208293 Whirlpool Surface Igniter
37	WPW10276466 Whirlpool Support Bracket
38	SCREW
