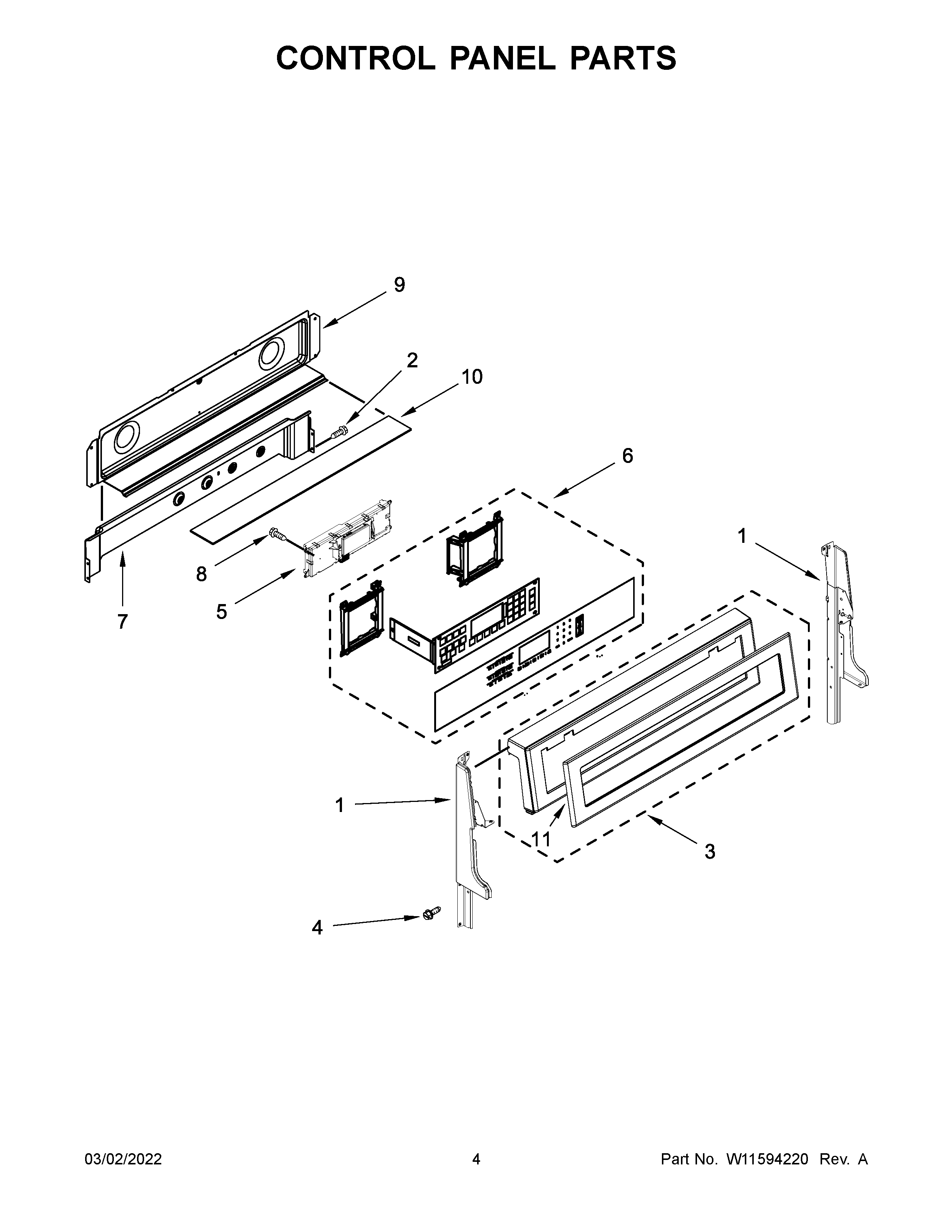

KFGD500ESS06 03 – CONTROL PANEL PARTS

KFGD500ESS06 03 – CONTROL PANEL PARTS

Written by

in

KFGD500ESS06 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
1BW10319109 Whirlpool Endcap Panel
1CSUPPORT, BACK GUARD (RIGHT HAND)
2SCREW
3W10645847 Whirlpool Control Panel
3AW11164063 Whirlpool Control Panel
4Screw
5W10877013 Whirlpool Electronic Control Board + Core
6AW11430942 Whirlpool Control Panel
6W11430948 Whirlpool Dishwasher Control Panel
7W10278697 Whirlpool Vent Shield Assembly
8W11245710 Whirlpool Refrigerator Screw
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
11CABINET (NOT A SERVICEABLE PART)
