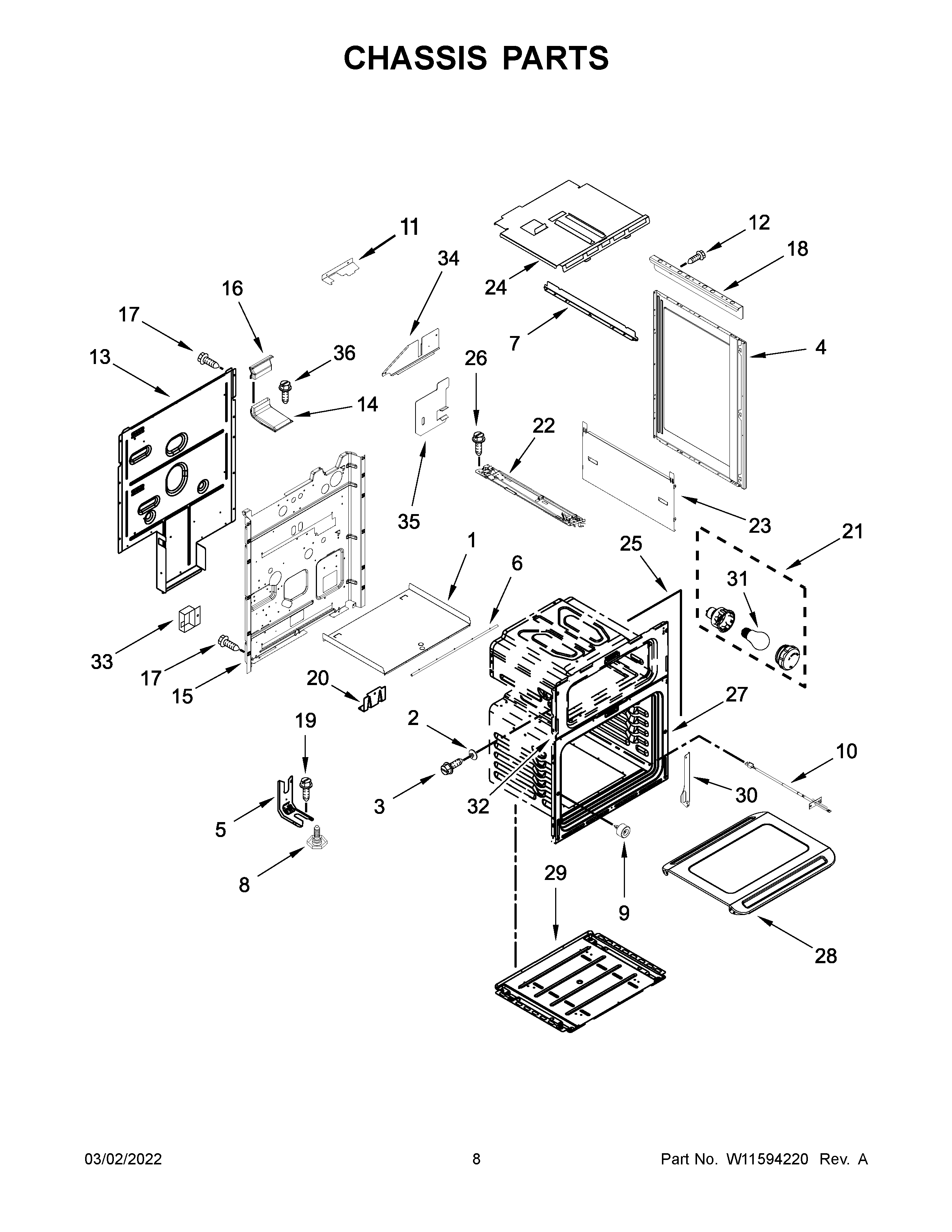

KFGD500ESS06 05 – CHASSIS PARTS

KFGD500ESS06 05 – CHASSIS PARTS

Written by

in

KFGD500ESS06 05 – CHASSIS PARTS

Products

PositionProduct
NIW11688777 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11688385 Whirlpool Insulation
NIW11685611 Whirlpool Insulation
NIW11684919 Whirlpool Insulation
NIW11684769 Whirlpool Insulation
1W10319038 Whirlpool Heat Shield
2W11594028 Whirlpool Spacer Panel
3SCREW
4AW11595910 Whirlpool Side Panel
4PANEL, SIDE (WHITE)
5BRACKET, ANTI TIP
6W10319000 Whirlpool Oven Gasket Assembly
7W10357697 Whirlpool Spacer Panel
8FOOT, LEVELER
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11COVER, LOWER WIRE
12SCREW (WHITE)
13WPW10261387 Whirlpool Wire Cover
14AW10272519 Whirlpool Oven Flue
14W11243157 Whirlpool Oven Flue
15W10668728 Whirlpool Rear Cover Assembly
16AW10321445 Whirlpool Oven Flue Assembly
16W10321446 Whirlpool Oven Flue
17SCREW
18W10319087 Whirlpool Support Bracket
19SCREW, ANTI-TIP KIT
20SUPPORT, LOWER OVEN
21W11594027 Whirlpool Range Oven Light Socket
22W11166856 Whirlpool Door Latch
23SHIELD-SIDE INSULATION
24W10324643 Whirlpool Support
25GASKET, OVEN DOOR (UPPER)
25AW11594140 Whirlpool Door Gasket
26SCREW
27FRONT, MAIN (LOWER)
28WPW10292551 Whirlpool Broil Pan
29BASE, CHASSIS
30W10410463 Whirlpool Cover Assembly
30AW10410461 Whirlpool Cover
31RANGE ONLY 40W 120V APPL BULB
32FRONT, MAIN (UPPER)
338285593 Whirlpool Oven Wire Cover
34COVER, INNER MAIN BACK
35COVER, OUTER MAIN BACK
36SCREW
