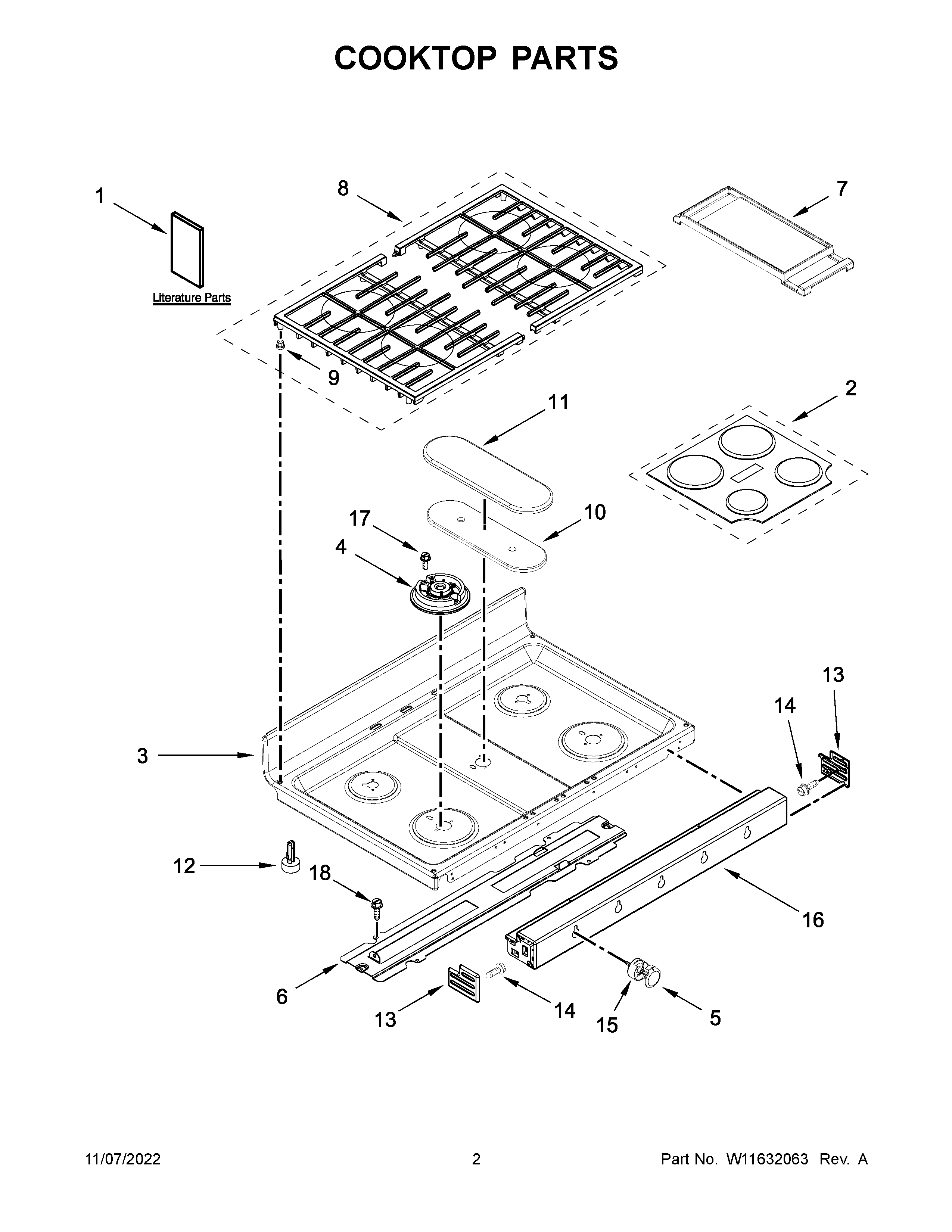

KFGD500ESS10 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	W10408058 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, CLIP, WIRE
NI	W11172531 Whirlpool Wire Harness
NI	W11172428 Whirlpool Wire Harness
NI	WASHER
NI	CLAMP, WIRE
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11448060 Whirlpool Wire Harness
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	WPW10299236 Whirlpool Burner Cap
3A	W10401393 Whirlpool Cooktop
3	W10336331 Whirlpool Cooktop
4A	WPW10406243 Whirlpool Burner Head Auxiliary 6K
4B	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
4C	WPW10336094 Whirlpool Burner Assembly Top
5	W11030413 Whirlpool Knob
6	W10518258 Whirlpool Mounting Bracket
7	W10432544 Whirlpool Range Griddle
8	W11673268 Whirlpool Grate Kit
9	W10919249 Whirlpool Burner Grate Foot
10	WPW10333445 Whirlpool Burner Base
11	WPW10171140 Whirlpool Burner Cap
12	GLIDE, MAIN TOP
13A	ENDCAP, MANIFOLD (WHITE (RIGHT))
13	ENDCAP, MANIFOLD (WHITE (LEFT))
13B	W10772020 Whirlpool Panel Endcap
13C	W10772019 Whirlpool Panel End Cap
14	W10491985 Whirlpool Screw
15	W10814133 Whirlpool Knob Bezel
16A	W11228125 Whirlpool Manifold Panel
16	W10708334 Whirlpool Manifold Panel
17	WP3368921 Whirlpool Screw
18	Screw
