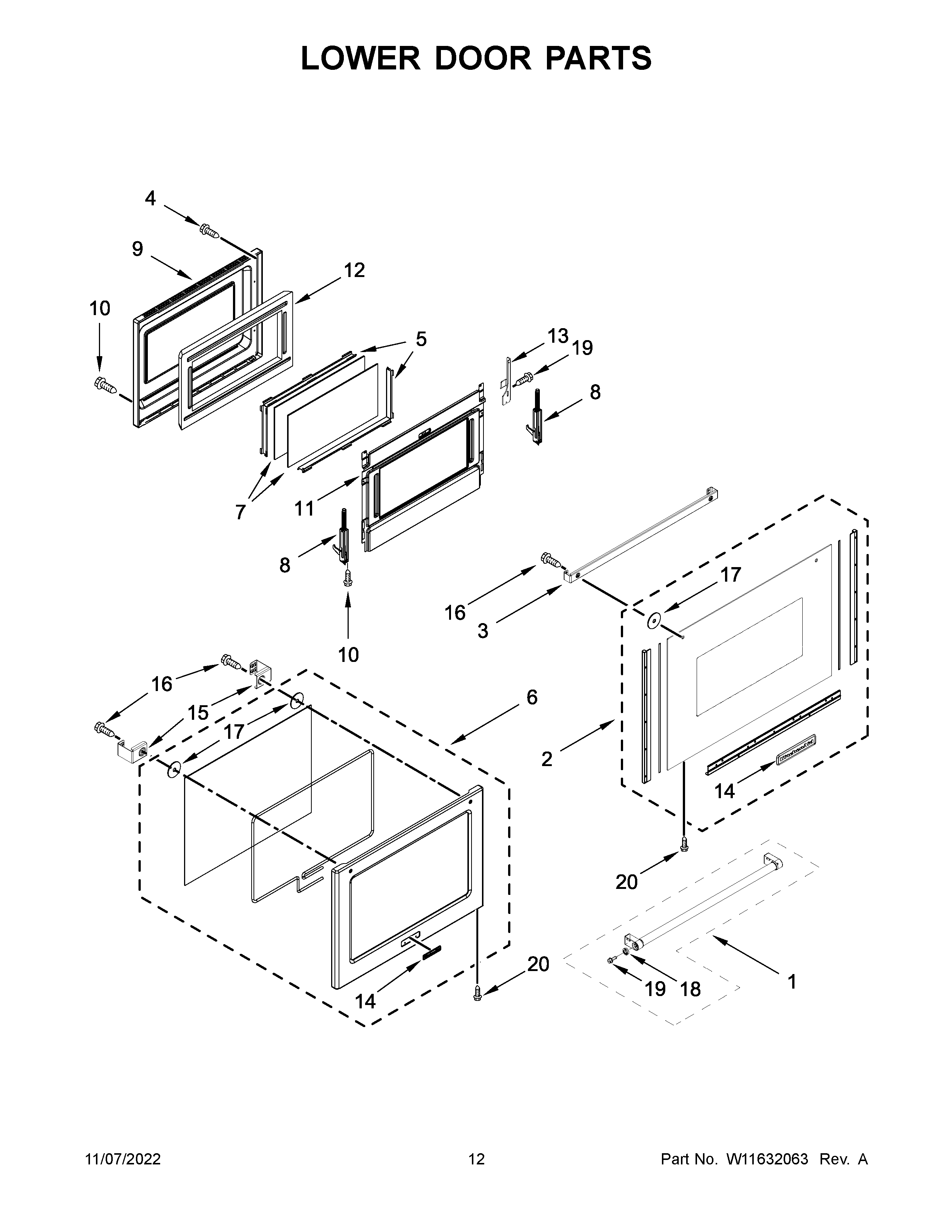

KFGD500ESS10 07 – LOWER DOOR PARTS

KFGD500ESS10 07 – LOWER DOOR PARTS

Written by

in

KFGD500ESS10 07 – LOWER DOOR PARTS

Products

PositionProduct
1ASSEMBLY, HANDLE (WHITE)
1AW11305108 Whirlpool Door Handle
2W11600197 Whirlpool Range Door Glass
3WPW10294695 Whirlpool Mounting Bracket
4W11712404 Whirlpool Screw
5WPW10272594 Whirlpool Window Frame
6W11600196 Whirlpool Door Glass
7WP9757706 Whirlpool Door Inner Glass
8AWPW10335433 Whirlpool Door Hinge
8WPW10335434 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10WPW10292297 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13AWPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14W10839793 Whirlpool Refrigerator Nameplate
15W10645182 Whirlpool Mounting Bracket
16W10831019 Whirlpool Stove Door Screw
17WASHER, FIBER
18W10846207 Whirlpool KA Handle MEDALLIONS-RED
19W10920281 Whirlpool Screw
20W11690596 Whirlpool Screw
