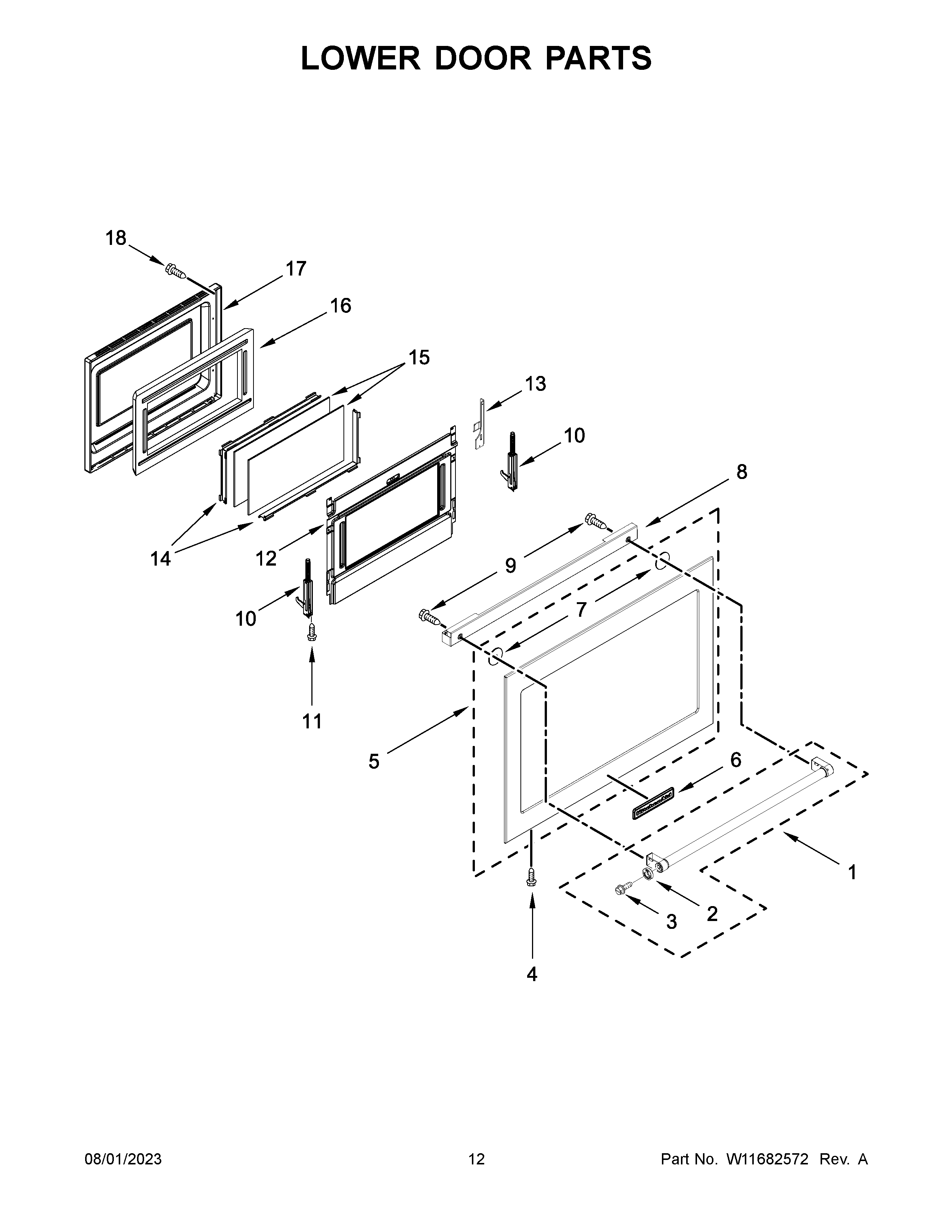

KFGD500ESS11 07 – LOWER DOOR PARTS

Products

Position	Product
1	HNDLE-DOOR
2	W10846207 Whirlpool KA Handle MEDALLIONS-RED
3	W10920281 Whirlpool Screw
4	W11690596 Whirlpool Screw
5	ASSEMBLY, DOOR (STAINLESS)
6	W10839793 Whirlpool Refrigerator Nameplate
7	WASHER, FIBER
8	W10575689 Whirlpool Mounting Bracket
9	W10831019 Whirlpool Stove Door Screw
10A	WPW10335433 Whirlpool Door Hinge
10	WPW10335434 Whirlpool Door Hinge
11	WPW10292297 Whirlpool Screw
12	W10340464 Whirlpool Retainer
13A	WPW10272328 Whirlpool Hinge Receptacle
13	WPW10272329 Whirlpool Hinge Receptacle
14	WPW10272594 Whirlpool Window Frame
15	WP9757706 Whirlpool Door Inner Glass
16	INSULATION, DOOR
17	WPW10292008 Whirlpool Door Liner
18	W11712404 Whirlpool Screw
