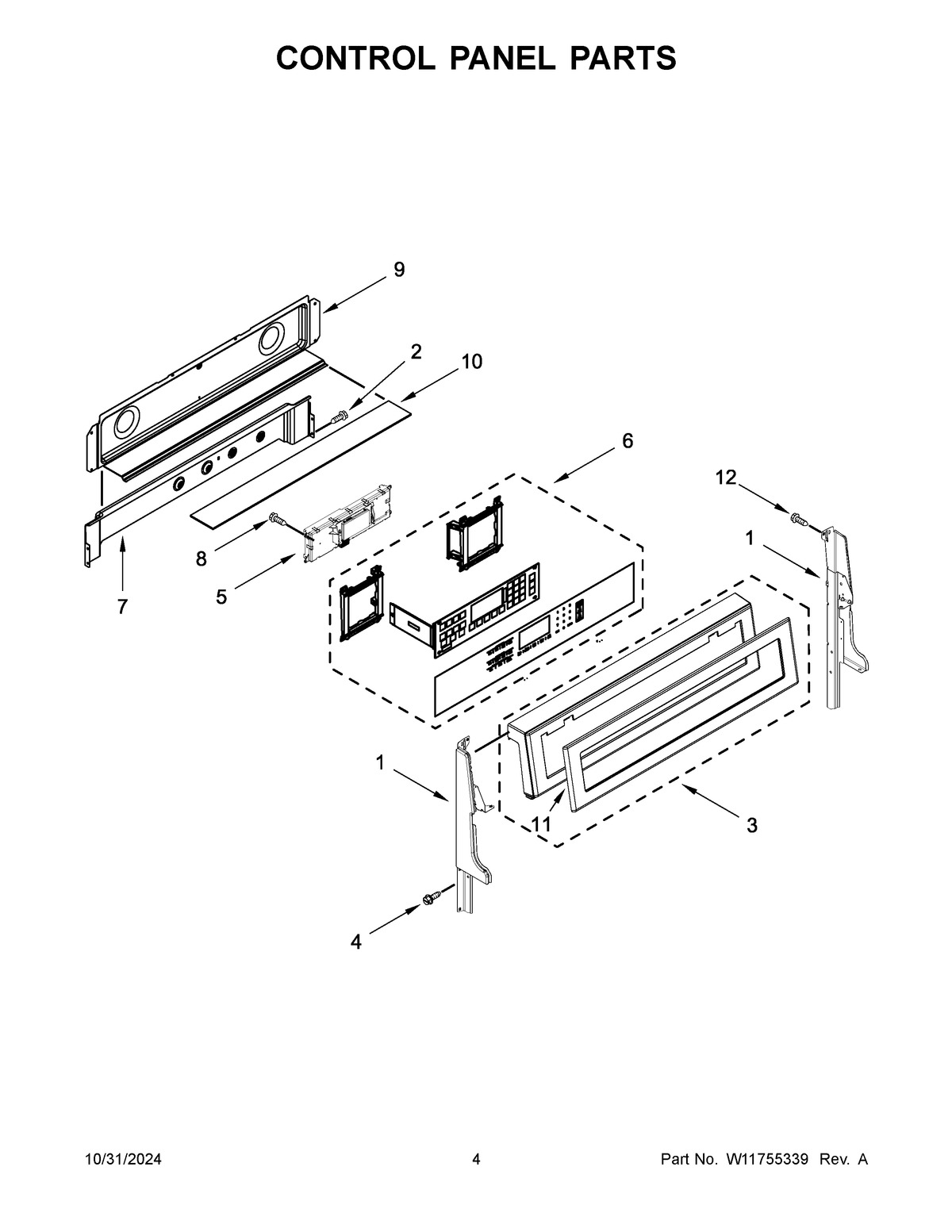

KFGD500ESS12 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1ASUPPORT, BACK GUARD (RIGHT HAND)
2SCREW
3W11164063 Whirlpool Control Panel
4Screw
5W11620682 Whirlpool Electronic Control Board + Core
6W11430942 Whirlpool Control Panel
7W10278697 Whirlpool Vent Shield Assembly
8W11245710 Whirlpool Refrigerator Screw
9W10776098 Whirlpool Rear Cover
10W11684874 Whirlpool Insulation
11SKIN, CONTROL PANEL (NOT SERVICED)
12SCREW
