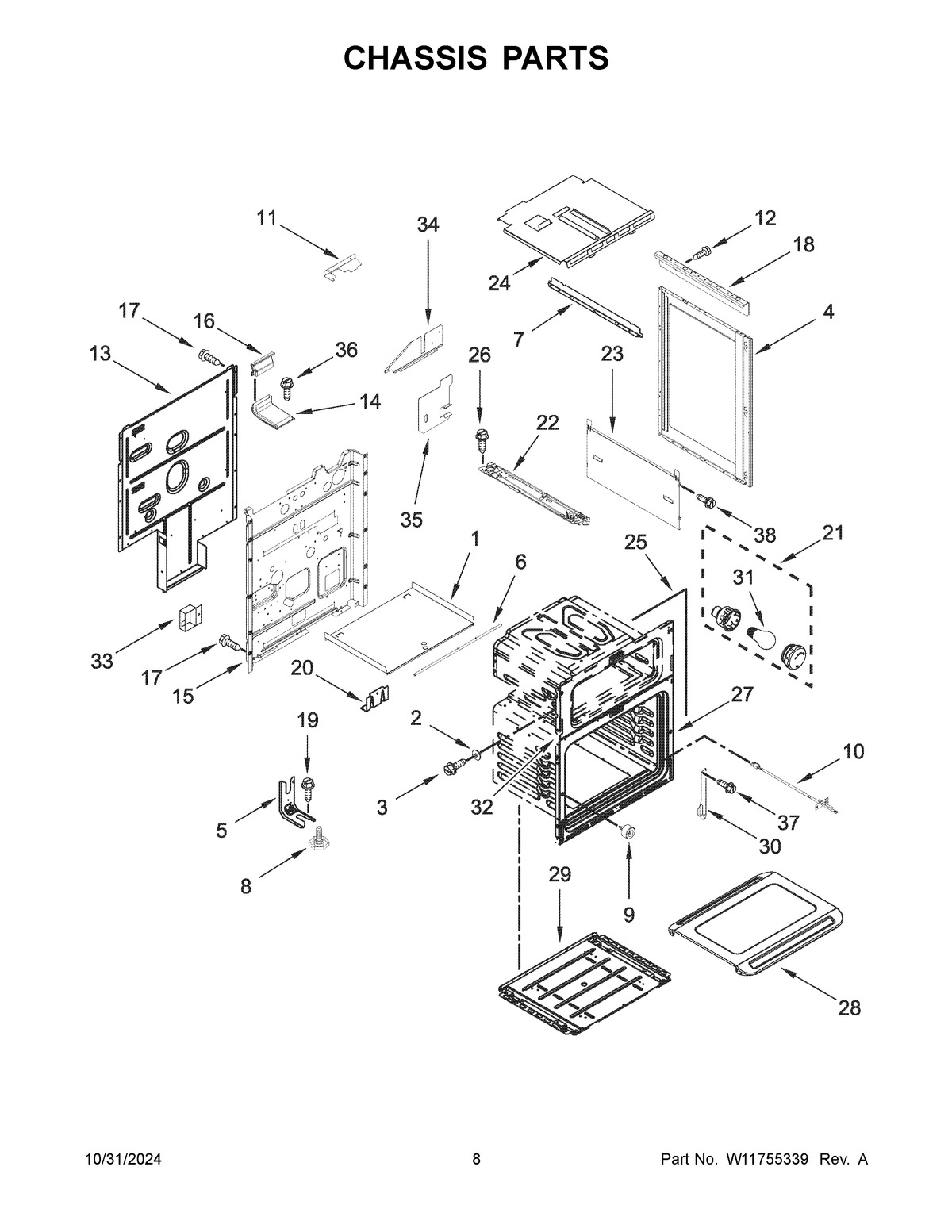

KFGD500ESS12 05 – CHASSIS PARTS

Products

Position	Product
NI	W11688777 Whirlpool Insulation
NI	W11684919 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11685611 Whirlpool Insulation
NI	W11684769 Whirlpool Insulation
NI	W11688385 Whirlpool Insulation
1	W10319038 Whirlpool Heat Shield
2	W11594028 Whirlpool Spacer Panel
3	WPW10267456 Whirlpool Screw
4	W11595910 Whirlpool Side Panel
5	BRACKET, ANTI TIP
6	W10319000 Whirlpool Oven Gasket Assembly
7	W10357697 Whirlpool Spacer Panel
8	W11665456 Whirlpool Range Level Foot
9	W10105790 Whirlpool Bumper
10	SENSOR, OVEN
11	COVER, LOWER WIRE
12	SCREW (BLACK)
13	WPW10261387 Whirlpool Wire Cover
14	W11243157 Whirlpool Oven Flue
14A	W10272519 Whirlpool Oven Flue
15	W10668728 Whirlpool Rear Cover Assembly
16A	W10321445 Whirlpool Oven Flue Assembly
16	W10321446 Whirlpool Oven Flue
17	SCREW
18	W10319087 Whirlpool Support Bracket
19	SCREW, ANTI-TIP KIT
20	SUPPORT, LOWER OVEN
21	W11594027 Whirlpool Range Oven Light Socket
22	W11166856 Whirlpool Door Latch
23	SHIELD-SIDE INSULATION
24	W10324643 Whirlpool Support
25	GASKET, OVEN DOOR (UPPER)
25A	W11594140 Whirlpool Door Gasket
26	SCREW
27	FRONT, MAIN (LOWER)
28	WPW10292551 Whirlpool Broil Pan
29	BASE, CHASSIS
30	W10410463 Whirlpool Cover Assembly
30A	W10410461 Whirlpool Cover
31	RANGE ONLY 40W 120V APPL BULB
32	FRONT, MAIN (UPPER)
33	8285593 Whirlpool Oven Wire Cover
34	COVER, INNER MAIN BACK
35	COVER, OUTER MAIN BACK
36	SCREW
37	WP4449743 Whirlpool Screw
38	W10443110 Whirlpool Screw
