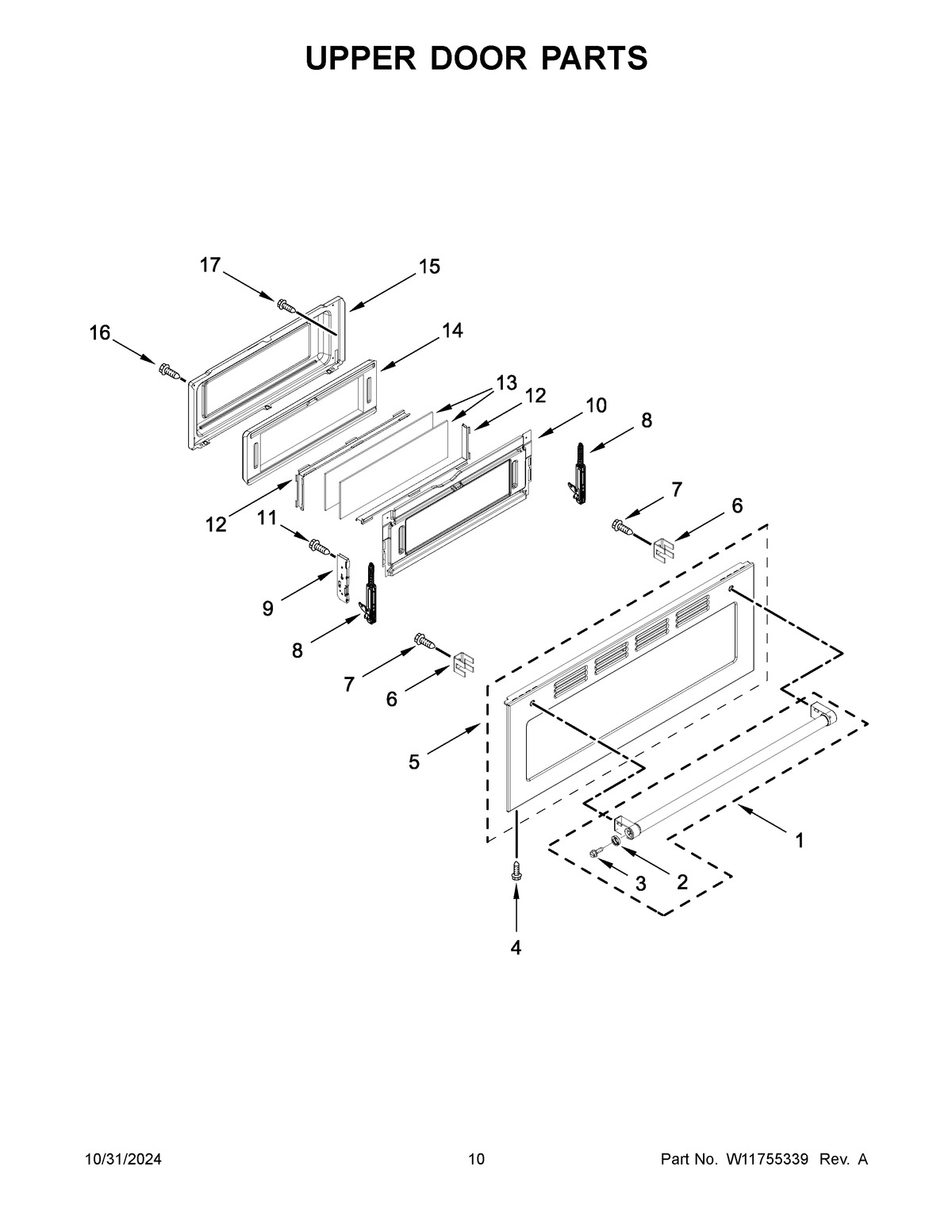

KFGD500ESS12 06 – UPPER DOOR PARTS

Products

Position	Product
1	HNDLE-DOOR
2	W10846207 Whirlpool KA Handle MEDALLIONS-RED
3	W10920281 Whirlpool Screw
4	W11690596 Whirlpool Screw
5	W11132193 Whirlpool Glass Door
6	W10575917 Whirlpool Spacer
7	W10831019 Whirlpool Stove Door Screw
8	WPW10485733 Whirlpool Door Hinge
8A	WPW10485732 Whirlpool Door Hinge
9	W10647259 Whirlpool Hinge Receiver
10	W10485723 Whirlpool Retainer
11	W10777162 Whirlpool Screw
12	WPW10272708 Whirlpool Window Frame
13	W11132120 Whirlpool Glass Door
14	WPW10321271 Whirlpool Insulation Assembly
15	W11103615 Whirlpool Door Liner
16	WPW10317886 Whirlpool Screw
17	WPW10292297 Whirlpool Screw
