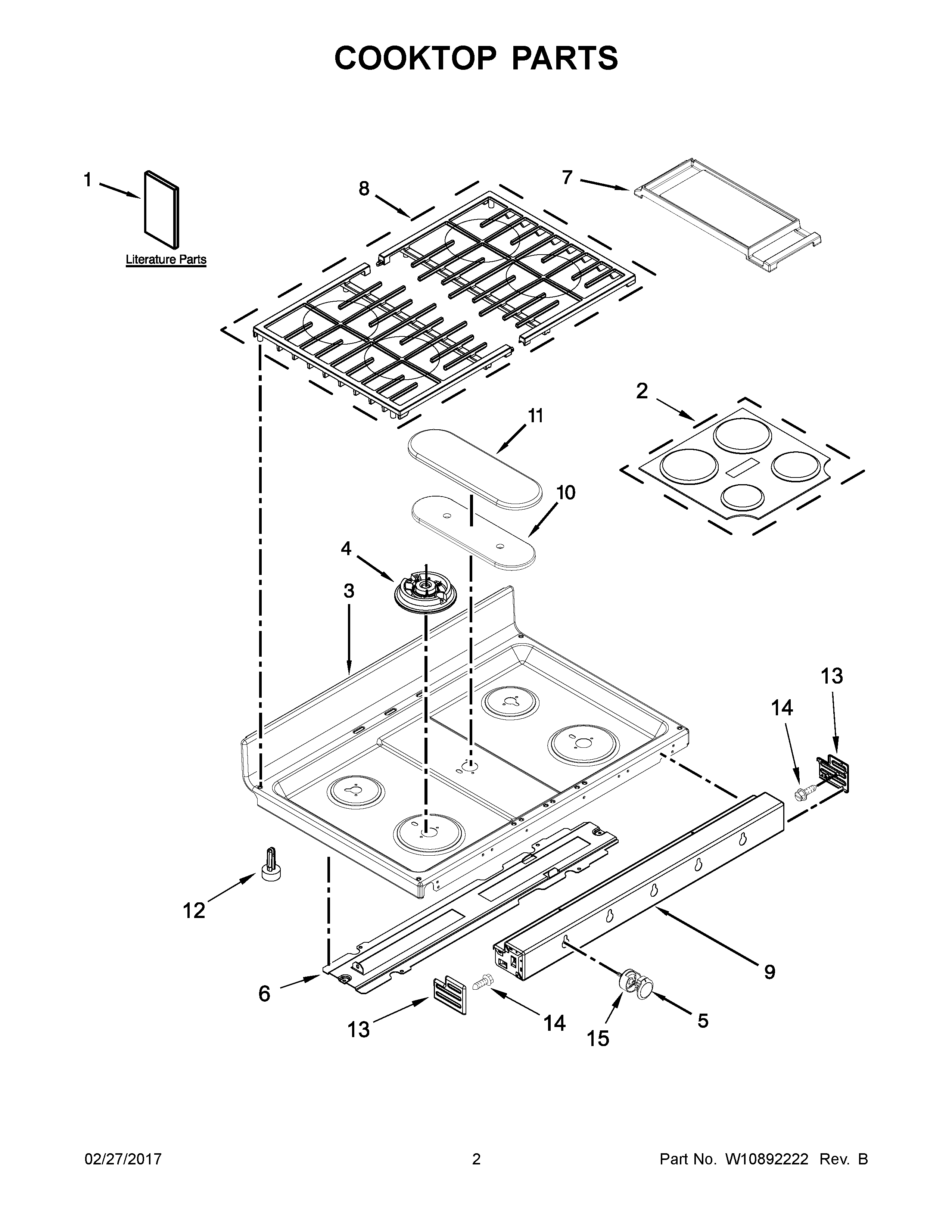

KFGD500EWH04 02 – COOKTOP PARTS

KFGD500EWH04 02 – COOKTOP PARTS

Written by

in

KFGD500EWH04 02 – COOKTOP PARTS

Products

PositionProduct
NIW10519934 Whirlpool Wire Harness
NIW10408058 Whirlpool Wire Harness
NIWIRING HARNESS PARTS, CLIP, WIRE
NIW11172531 Whirlpool Wire Harness
NIW11172428 Whirlpool Wire Harness
NICLAMP, WIRE
NIW10745674 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1BSHEET, TECH
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
2WPW10299236 Whirlpool Burner Cap
3BW10401393 Whirlpool Cooktop
3W10336330 Whirlpool Cooktop
3AW10336331 Whirlpool Cooktop
4CWPW10336094 Whirlpool Burner Assembly Top
4AWPW10406243 Whirlpool Burner Head Auxiliary 6K
4BWPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4WPW10406878 Whirlpool Burner Base (16K)
5W11030413 Whirlpool Knob
6W10518258 Whirlpool Mounting Bracket
7W10432544 Whirlpool Range Griddle
8W11673268 Whirlpool Grate Kit
9BW11228125 Whirlpool Manifold Panel
9W10708335 Whirlpool Manifold Panel
9AW10708334 Whirlpool Manifold Panel
10WPW10333445 Whirlpool Burner Base
11WPW10171140 Whirlpool Burner Cap
12GLIDE, MAIN TOP
13EW10772019 Whirlpool Panel End Cap
13DW10772020 Whirlpool Panel Endcap
13CENDCAP, MANIFOLD (WHITE (RIGHT))
13BENDCAP, MANIFOLD (WHITE (LEFT))
13AW10719581 Whirlpool Panel End Cap
13W10719582 Whirlpool Endcap Panel
14W10491985 Whirlpool Screw
15W10814133 Whirlpool Knob Bezel
