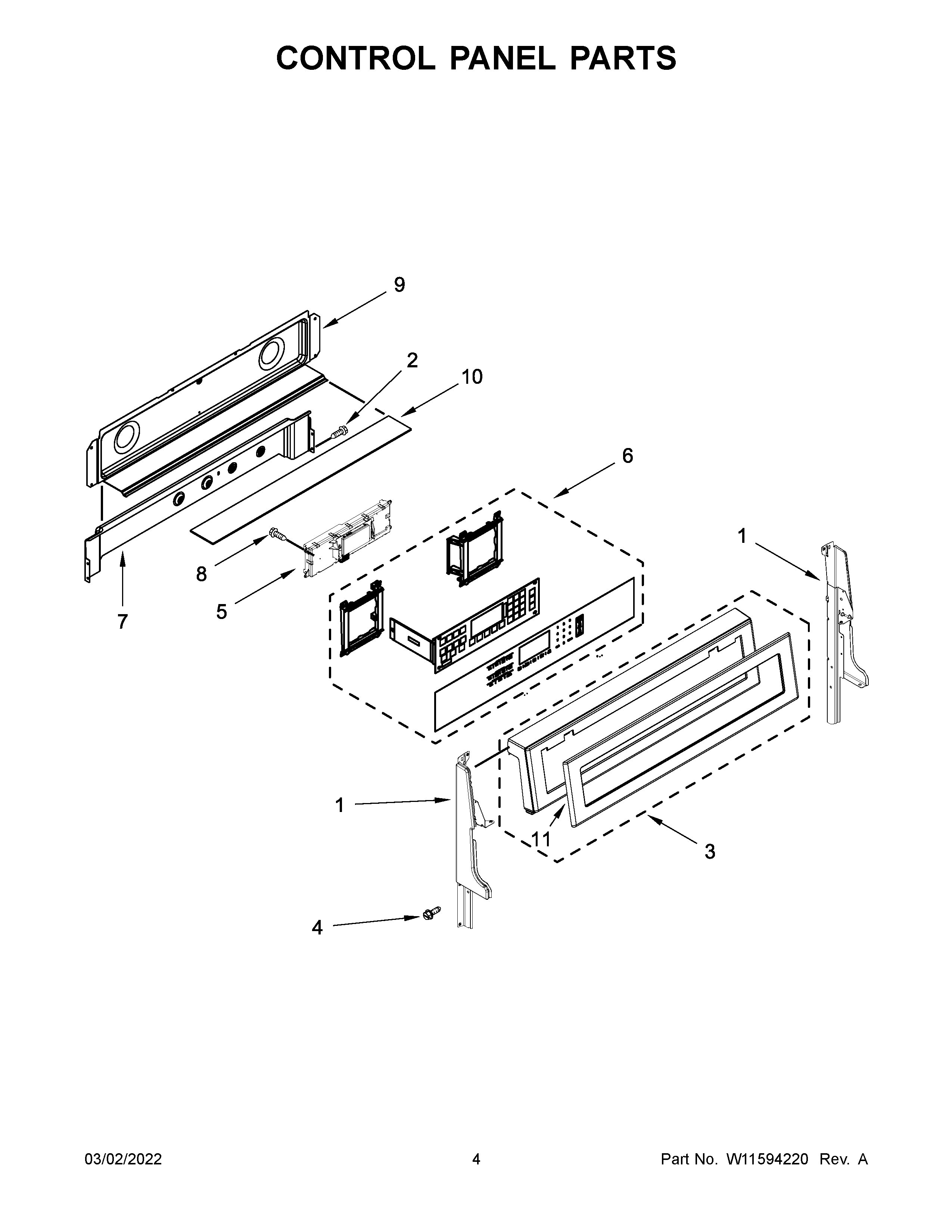

KFGD500EWH06 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
1B	W10319109 Whirlpool Endcap Panel
1C	SUPPORT, BACK GUARD (RIGHT HAND)
2	SCREW
3	W10645847 Whirlpool Control Panel
3A	W11164063 Whirlpool Control Panel
4	Screw
5	W10877013 Whirlpool Electronic Control Board + Core
6A	W11430942 Whirlpool Control Panel
6	W11430948 Whirlpool Dishwasher Control Panel
7	W10278697 Whirlpool Vent Shield Assembly
8	W11245710 Whirlpool Refrigerator Screw
9	W10776098 Whirlpool Rear Cover
10	W11684874 Whirlpool Insulation
11	CABINET (NOT A SERVICEABLE PART)
