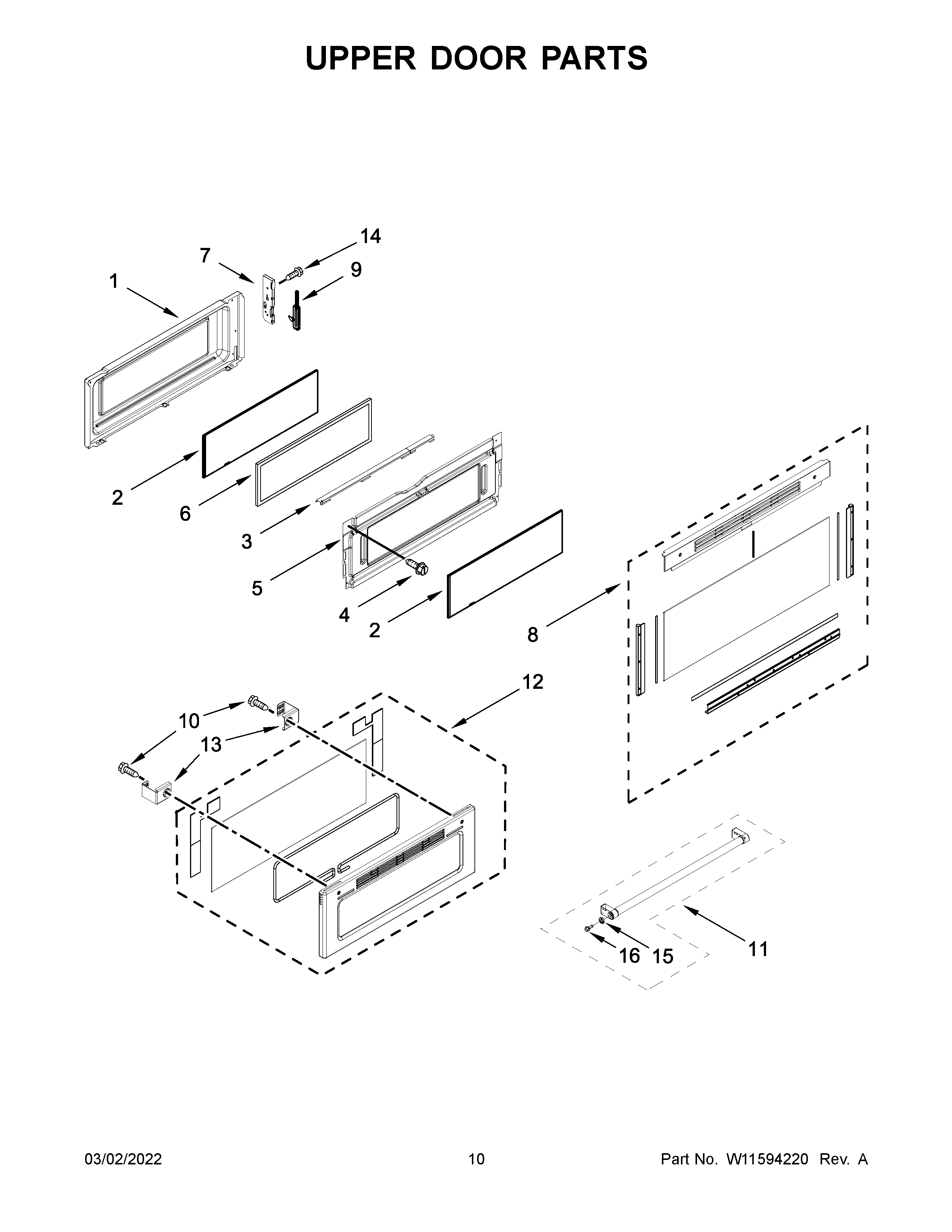

KFGD500EWH06 06 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10647259 Whirlpool Hinge Receiver
8	W10789063 Whirlpool Door Glass
9	WPW10485733 Whirlpool Door Hinge
9A	WPW10485732 Whirlpool Door Hinge
10	W11712404 Whirlpool Screw
11A	W11305108 Whirlpool Door Handle
11	ASSEMBLY, HANDLE (WHITE)
12	W11600202 Whirlpool Door Glass
13	W10645182 Whirlpool Mounting Bracket
14	W10777162 Whirlpool Screw
15	W10846207 Whirlpool KA Handle MEDALLIONS-RED
16	W10920281 Whirlpool Screw
