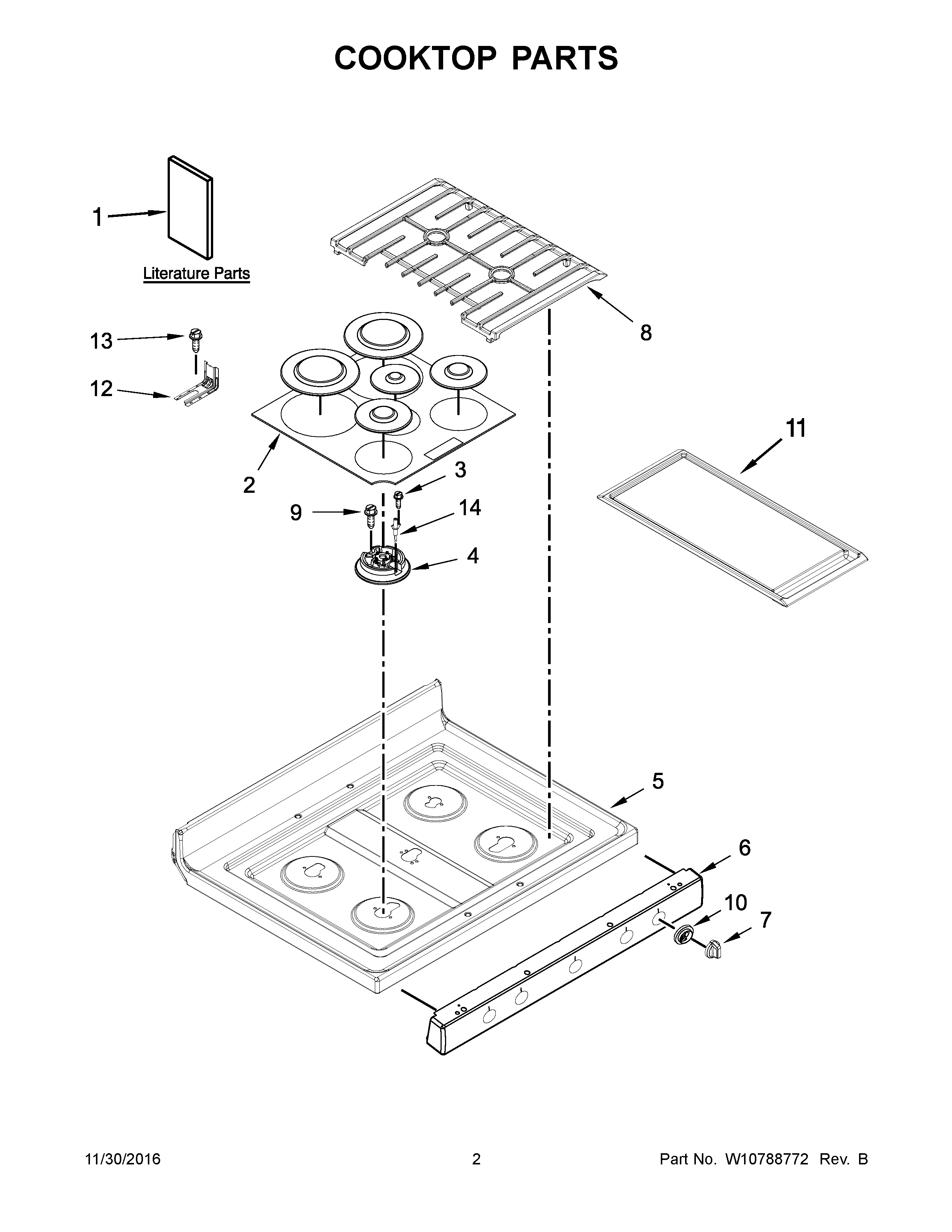

KFGG500EBL0 02 – COOKTOP PARTS

Products

Position	Product
NI	W10580269 Whirlpool Wire Harness
NI	W10519920 Whirlpool Wire Harness
NI	W10738993 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	3196696 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161843 Whirlpool Wire Harness
1D	Safer Cooking Tips (French)
1B	SHEET, TECH (ENGLISH)
1C	SAFER COOKING TIPS (ENGLISH
1A	GUIDE, USE & CARE
1E	GUIDE, QUICK START
1	INSTRUCTIONS, INSTALLATION
2	WPW10183374 Whirlpool Burner Cap
3	WP8273062 Whirlpool Screw
4	WPW10515455 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
5A	W10457321 Whirlpool Cooktop
5B	W11241183 Whirlpool Cooktop
5	W10457322 Whirlpool Cooktop
6B	W10724442 Whirlpool Manifold Panel
6A	W10724449 Whirlpool Manifold Panel
6	W10724448 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8	W11199168 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10814133 Whirlpool Knob Bezel
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
