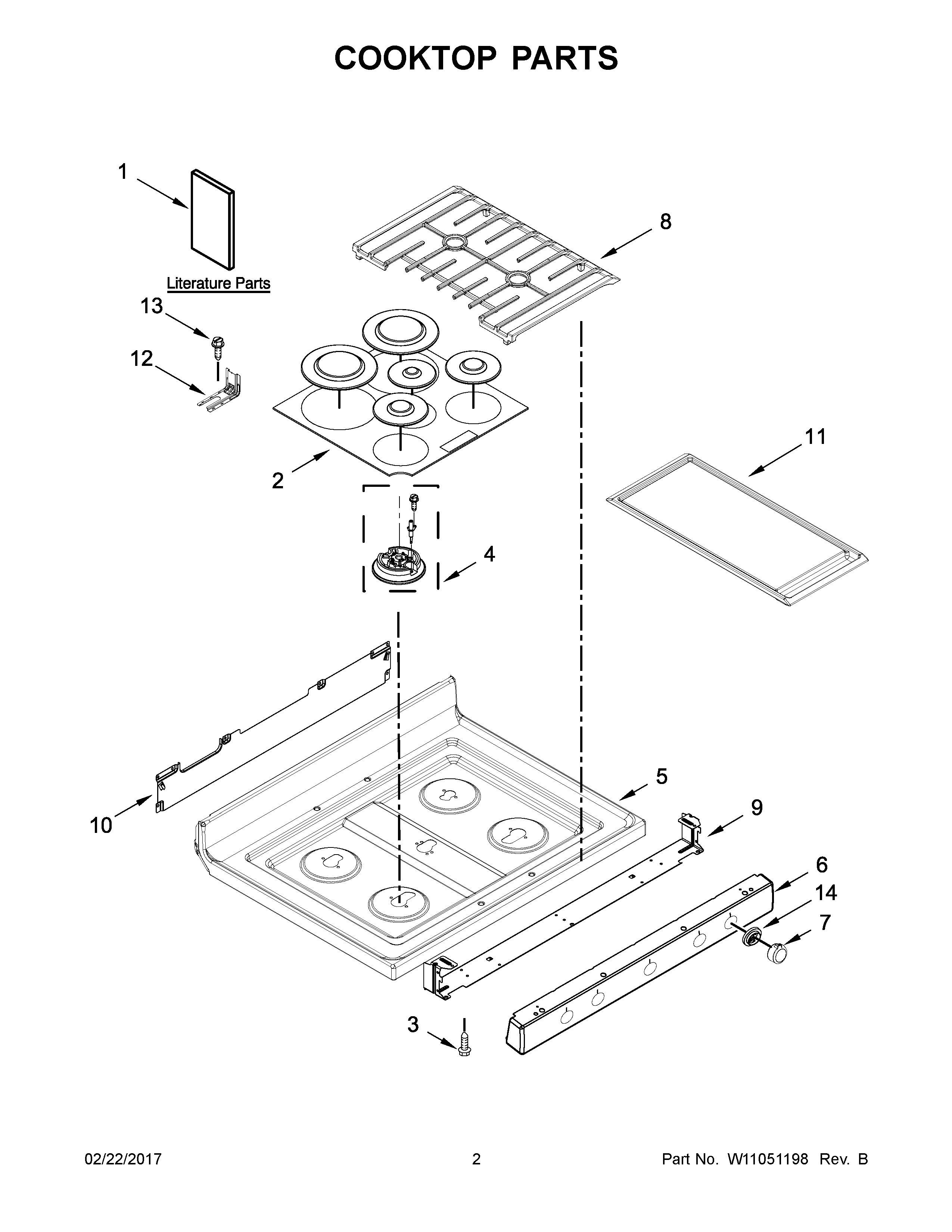

KFGG500EBS2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161843 Whirlpool Wire Harness
NI	W10809928 Whirlpool Wire Harness
NI	W10797421 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1	INSTRUCTIONS, INSTALLATION
1F	GUIDE, QUICK START
1A	GUIDE, USE & CARE
1B	SHEET, TECH (ENGLISH)
1C	SHEET, TECH (FRENCH)
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	W10457321 Whirlpool Cooktop
6	W11084230 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8	W11381340 Whirlpool Grate Kit
9	W10534174 Whirlpool Support Bracket
10	W10530070 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W10814133 Whirlpool Knob Bezel
