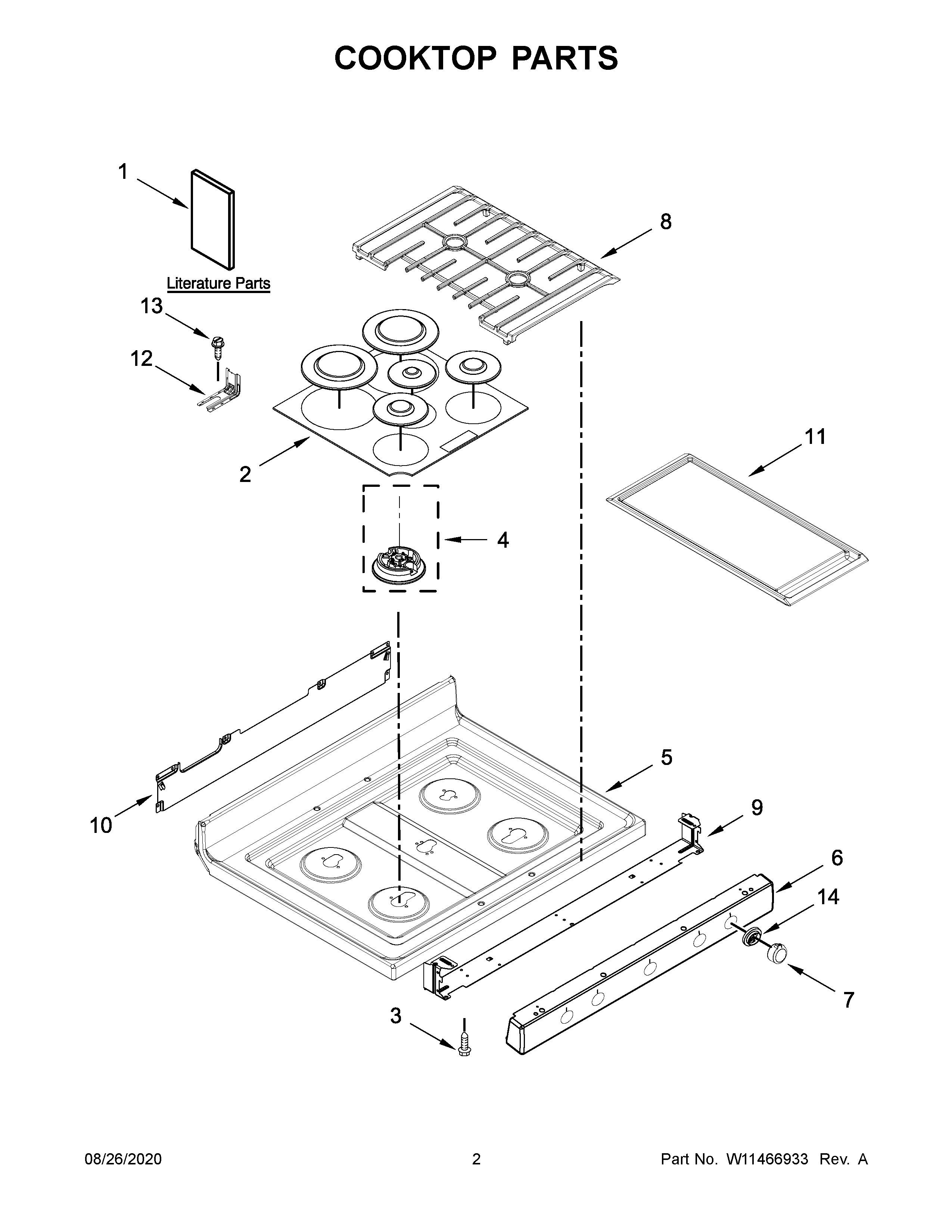

KFGG500EBS3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, MAIN
NI	W11161843 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1A	USE & CARE GUIDE
1C	SHEET, TECH (FRENCH)
1B	SHEET, TECH (ENGLISH)
1	INSTALLATION INSTRUCTIONS
1D	GUIDE, QUICK START
2	W11369523 Whirlpool Range Burner Cap
3	WPW10067840 Whirlpool Screw
4B	W11435657 Whirlpool Burner Head
4A	W11435659 Whirlpool Burner Head
4	W11435630 Whirlpool Oven Burner Head
5	W11454367 Whirlpool Cooktop
6	W11084230 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8	W11381340 Whirlpool Grate Kit
9	MANIFOLD PANEL BRACKET
10	REAR GAS COOKTOP BRACKET
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W10814133 Whirlpool Knob Bezel
