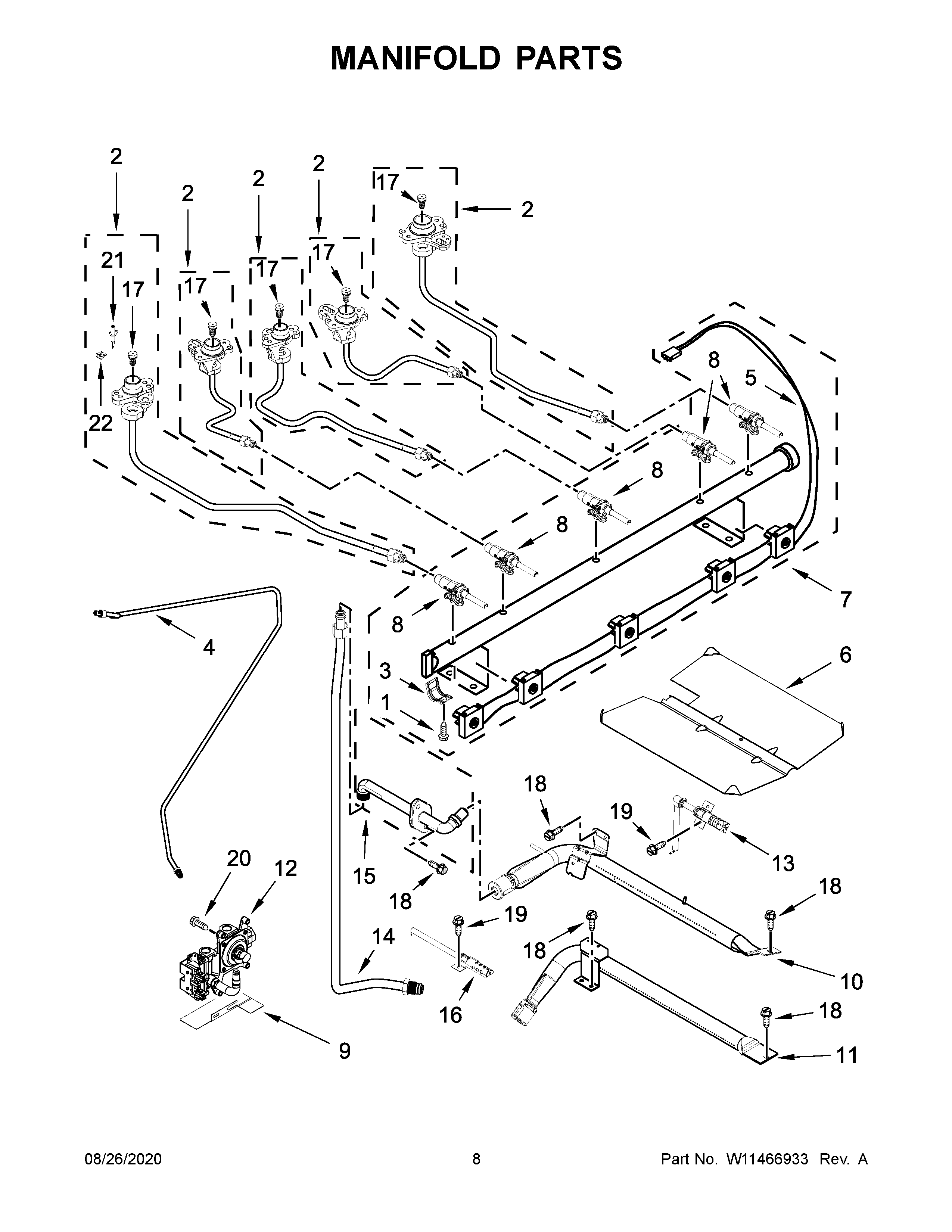

KFGG500EBS3 05 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	W11453918 Whirlpool Gas Range Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
1	W10295997 Whirlpool Screw
2A	W11453941 Whirlpool Orifice Holder
2B	W11453919 Whirlpool Holder Orifice
2C	W11453921 Whirlpool Orifice Holder
2D	W11453942 Whirlpool Orifice Holder
2	W11453934 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W10811693 Whirlpool Wire Harness
6	BAFFLE, BROIL BURNER
7	W11347746 Whirlpool Manifold
8	W11241561 Whirlpool Burner Valve
8A	W11233561 Whirlpool Burner Valve
8B	W11331153 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10919226 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10776437 Whirlpool Fitting
16	WPW10333842 Whirlpool Oven Igniter
17C	W11677633 Whirlpool Spud Orifice
17	W11428754 Whirlpool Orifice
17B	W11428753 Whirlpool Orifice
17A	W10849720 Whirlpool Orifice Assembly
17D	W11429345 Whirlpool Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21A	W11453920 Whirlpool Surface Igniter
21	W11453940 Whirlpool Surface Igniter
22	W11684564 Whirlpool Clip Assembly
