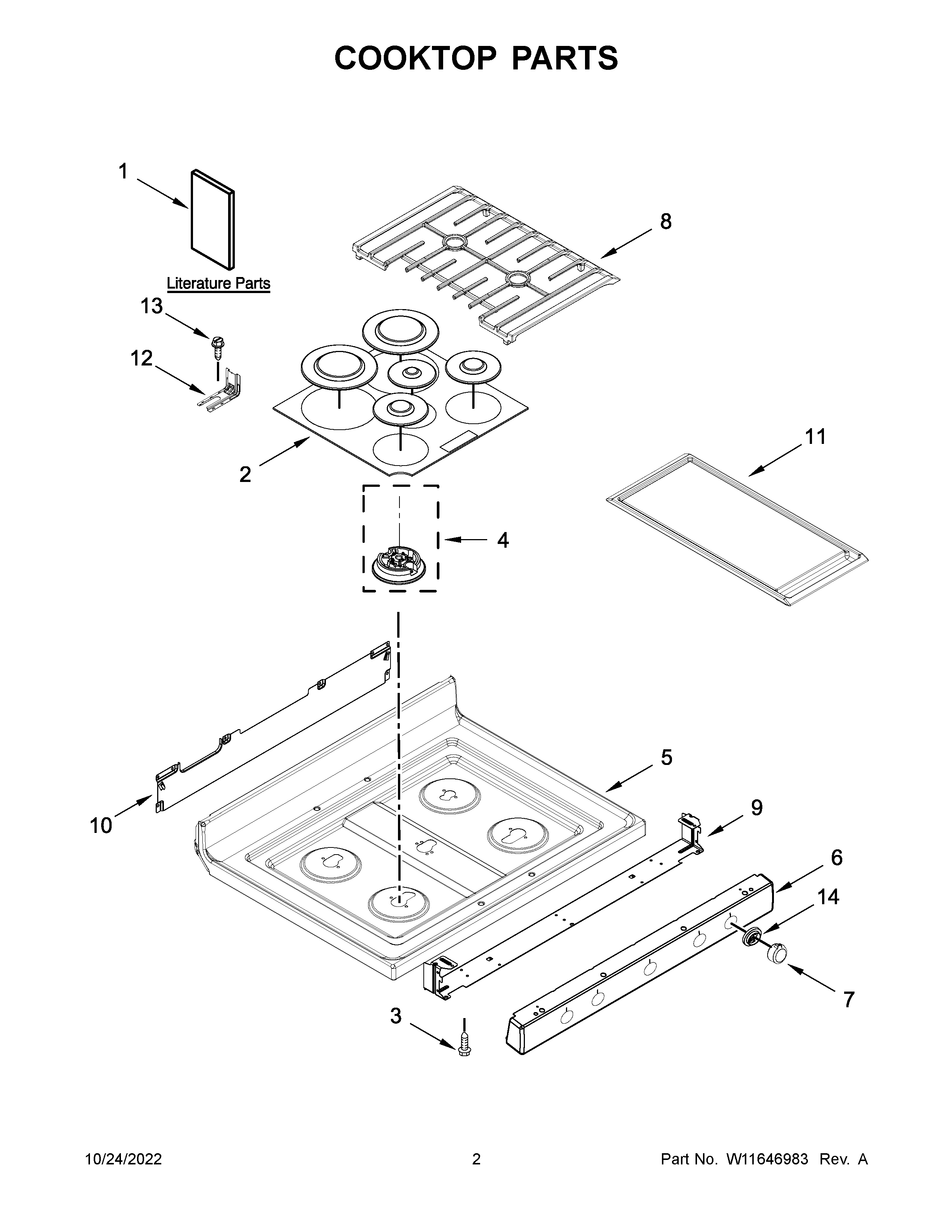

KFGG500EBS7 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161843 Whirlpool Wire Harness
NI	W11461074 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	WPW10182767 Whirlpool Wire Tie
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1	OWNERS MANUAL
1B	QUICK START GUIDE
1A	TECH SHEET
2	W11369523 Whirlpool Range Burner Cap
3	WPW10067840 Whirlpool Screw
4B	W11435657 Whirlpool Burner Head
4	W11435630 Whirlpool Oven Burner Head
4A	W11435659 Whirlpool Burner Head
5	W11454367 Whirlpool Cooktop
6	W11084230 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8	W11381340 Whirlpool Grate Kit
9	MANIFOLD PANEL BRACKET
10	REAR GAS COOKTOP BRACKET
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W10814133 Whirlpool Knob Bezel
