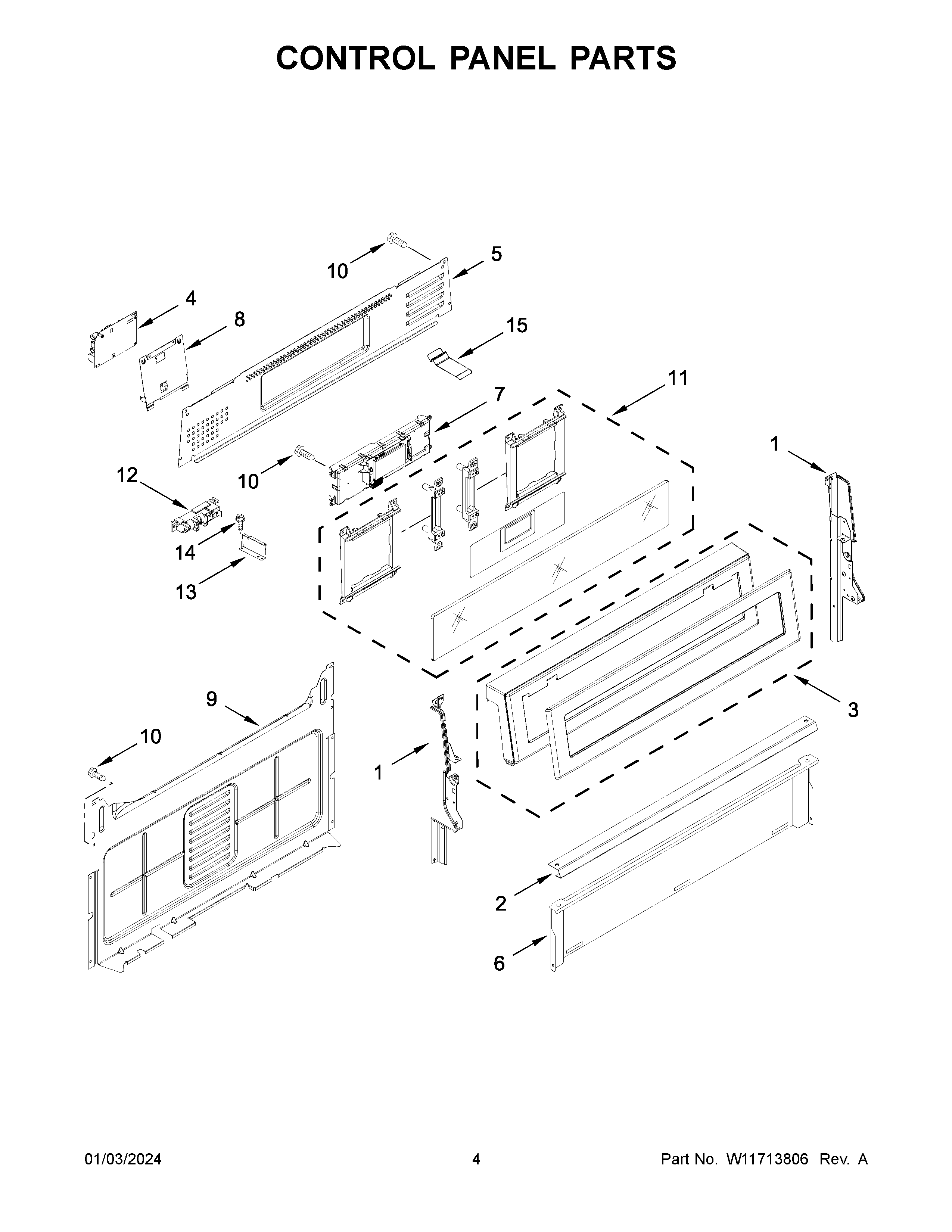

KFGG500EBS8 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3	W11084228 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11652041 Whirlpool Electronic Control Board with Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11675300 Whirlpool Membrane Switch
12	W11703692 Whirlpool Speaker Module
13	W10901176 Whirlpool Bracket Assembly
14	WP3196557 Whirlpool Screw
15	WPW10551614 Whirlpool Clip
