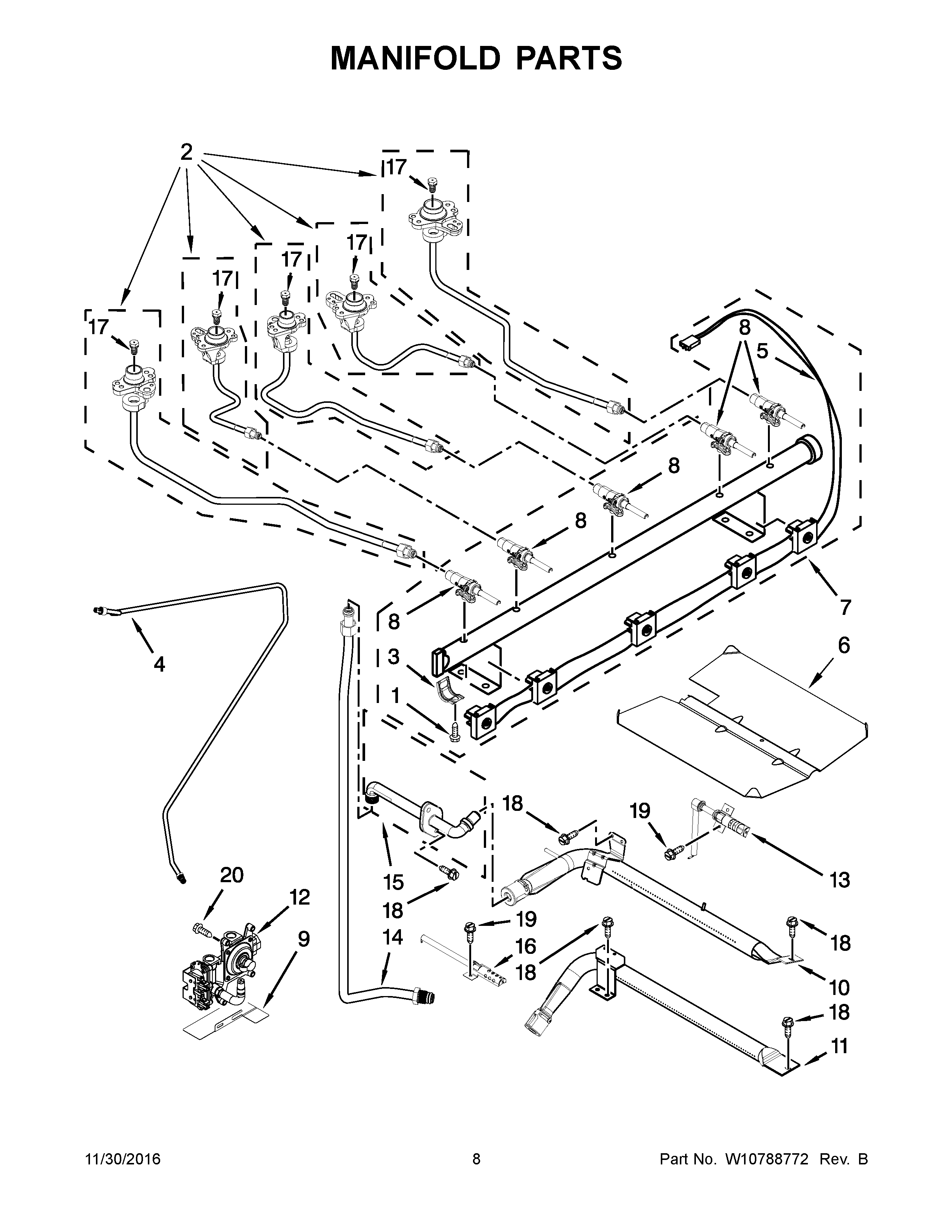

KFGG500ESS0 05 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
NI	W11087486 Whirlpool Spud Orifice
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11216991 Whirlpool Orifice
NI	WPW10400494 Whirlpool Orifice Assembly
1	W10295997 Whirlpool Screw
2B	W11643127 Whirlpool Orifice Holder
2	W11661950 Whirlpool Orifice Holder
2A	W10732139 Whirlpool Orifice Holder
2D	W10732141 Whirlpool Orifice Holder
2C	W11661571 Whirlpool Range Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W10755370 Whirlpool Wire Harness
6	BAFFLE, BROIL BURNER
7	ASSEMBLY, MANIFOLD (STAINLESS MODELS)
8B	W10566055 Whirlpool Burner Valve
8	W11241561 Whirlpool Burner Valve
8A	W11233561 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10919226 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10776437 Whirlpool Fitting
16	WPW10333842 Whirlpool Oven Igniter
17C	WPW10170510 Whirlpool Orifice
17D	W10251991 Whirlpool Orifice Spud
17A	W10732136 Whirlpool Orifice
17B	WPW10170507 Whirlpool Orifice
17	W10178934 Whirlpool Orifice Assembly
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
