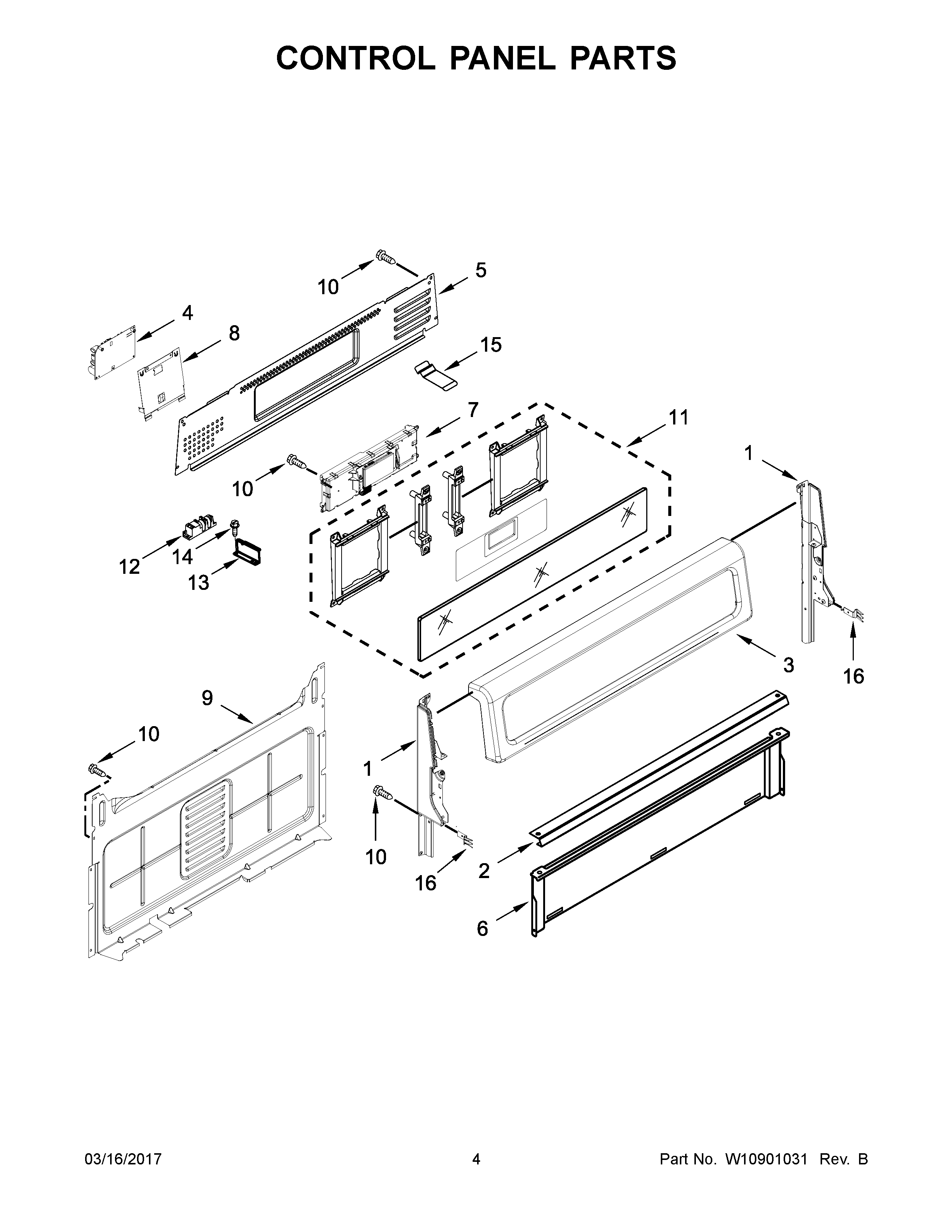

KFGG500ESS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	W11219365 Whirlpool Panel Endcap
1C	W11219370 Whirlpool Endcap Panel
1E	W10409003 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
1D	W11404310 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3	W10645846 Whirlpool Control Panel
3B	W11164063 Whirlpool Control Panel
3A	W10645847 Whirlpool Control Panel
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11088878-includeCORE Whirlpool W11088878 Refrigerator Electronic Control Board + Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11675300 Whirlpool Membrane Switch
11A	W10645815 Whirlpool Membrane Switch
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	WP3196557 Whirlpool Screw
15	WPW10551614 Whirlpool Clip
16	8523412 Whirlpool Mounting Bracket
