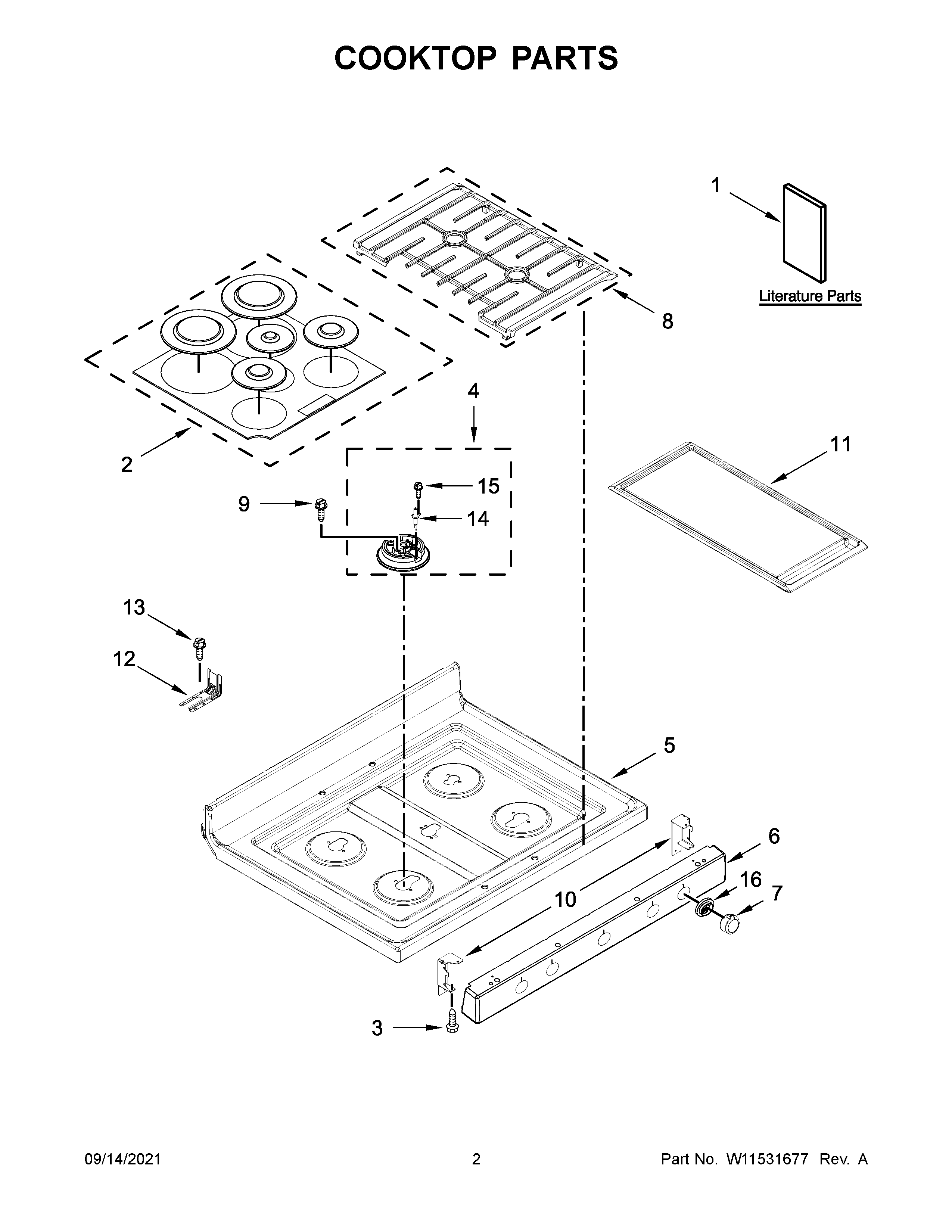

KFGG500ESS3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11451585 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11161843 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W10334923 Whirlpool Clip
NI	W10809928 Whirlpool Wire Harness
1	OWNERS MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	W11241183 Whirlpool Cooktop
6	W10724442 Whirlpool Manifold Panel
7	W11030413 Whirlpool Knob
8	W11382188 Whirlpool Grate Assembly
9	WP3368921 Whirlpool Screw
10	W10289096 Whirlpool Bracket Support
10A	W10106419 Whirlpool Support Bracket
11	W10432544 Whirlpool Range Griddle
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14A	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	W10814133 Whirlpool Knob Bezel
