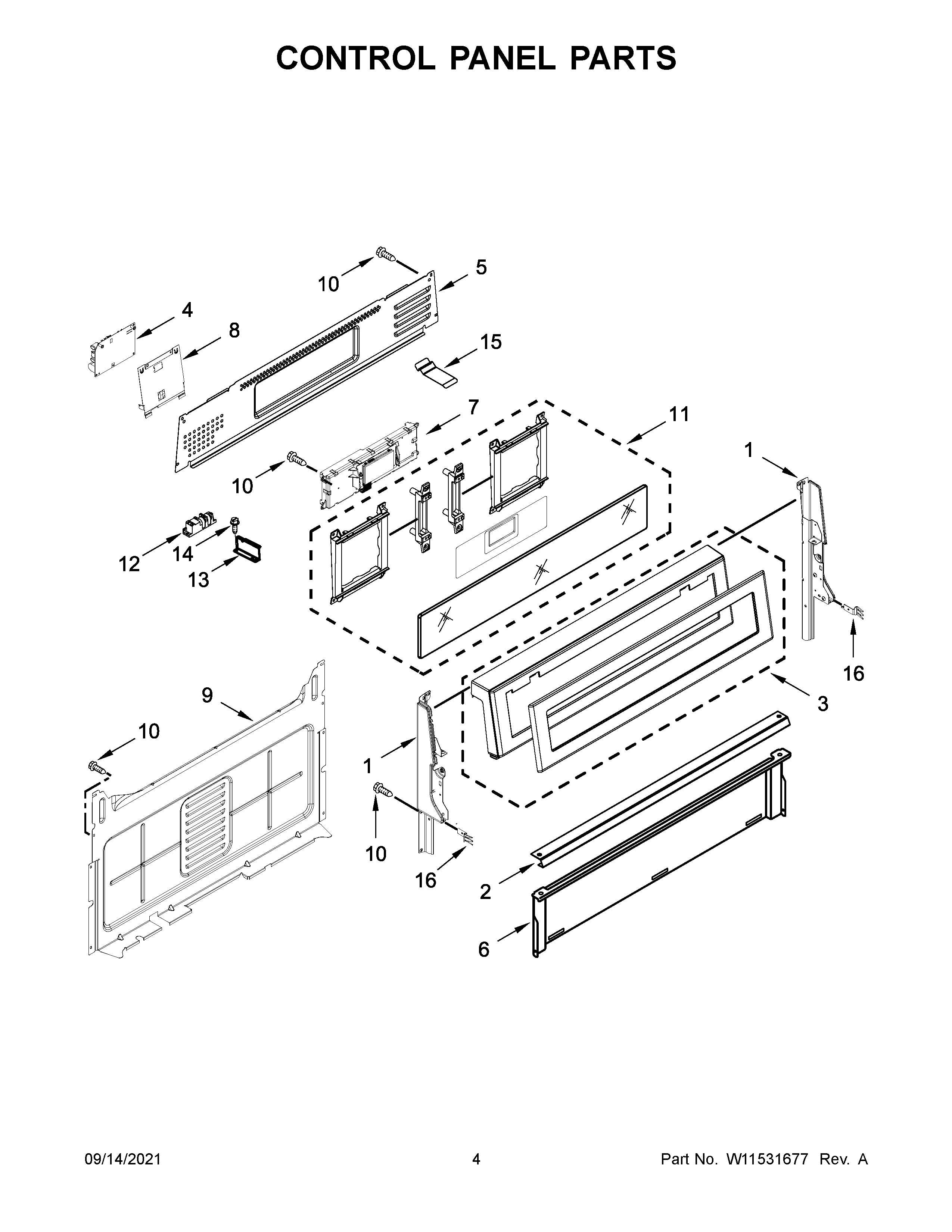

KFGG500ESS3 03 – CONTROL PANEL PARTS

KFGG500ESS3 03 – CONTROL PANEL PARTS

Written by

in

KFGG500ESS3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11404310 Whirlpool Panel Endcap
1AW10409003 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3W11164063 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11088878-includeCORE Whirlpool W11088878 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11W11675300 Whirlpool Membrane Switch
12WPW10475149 Whirlpool Spark Module
13W10901176 Whirlpool Bracket Assembly
14WP3196557 Whirlpool Screw
15WPW10551614 Whirlpool Clip
168523412 Whirlpool Mounting Bracket
