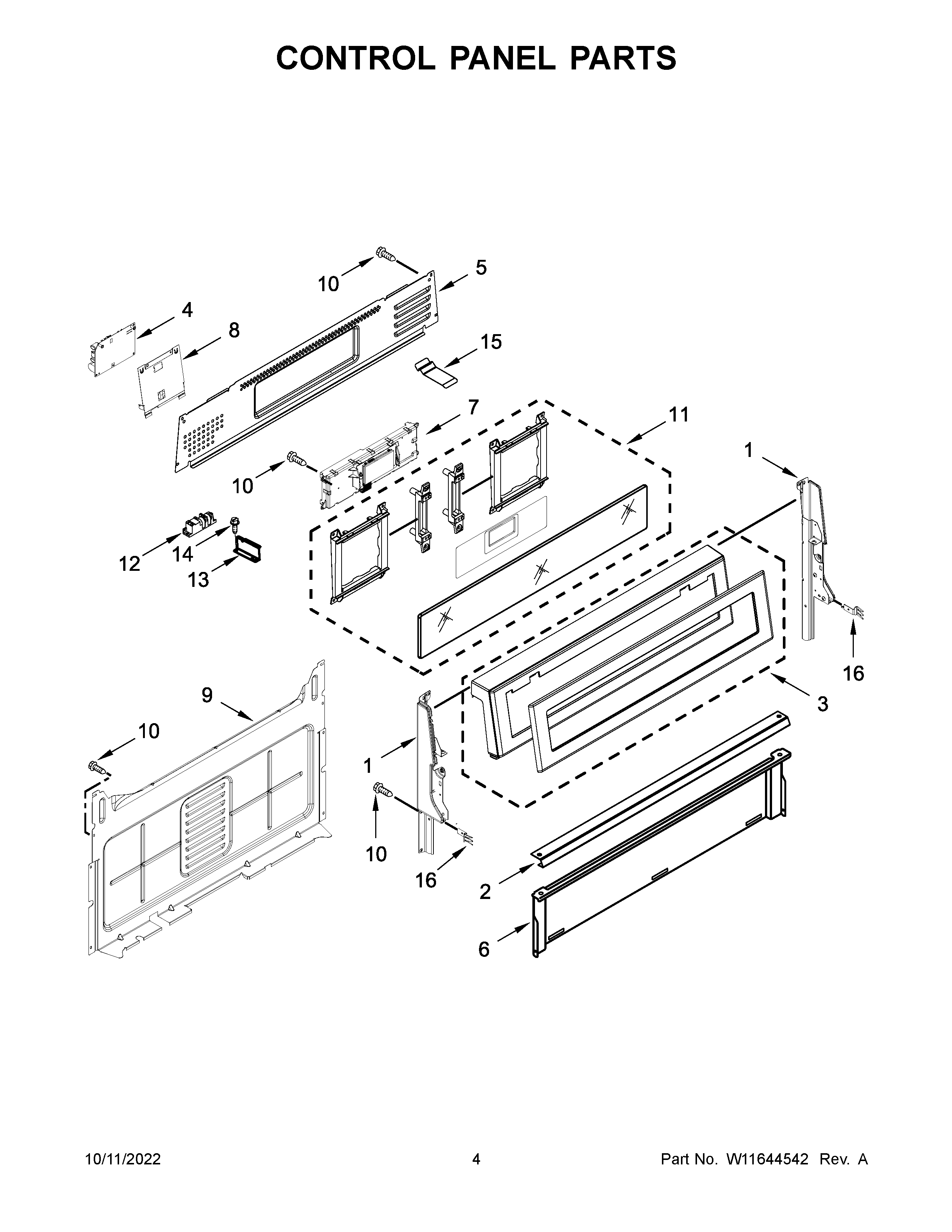

KFGG500ESS6 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11404310 Whirlpool Panel Endcap
1A	ENDCAP (BLACK (RIGHT))
2	W10516123 Whirlpool Mounting Bracket
3	W11164063 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11652041 Whirlpool Electronic Control Board with Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11675300 Whirlpool Membrane Switch
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	WP3196557 Whirlpool Screw
15	WPW10551614 Whirlpool Clip
16	8523412 Whirlpool Mounting Bracket
