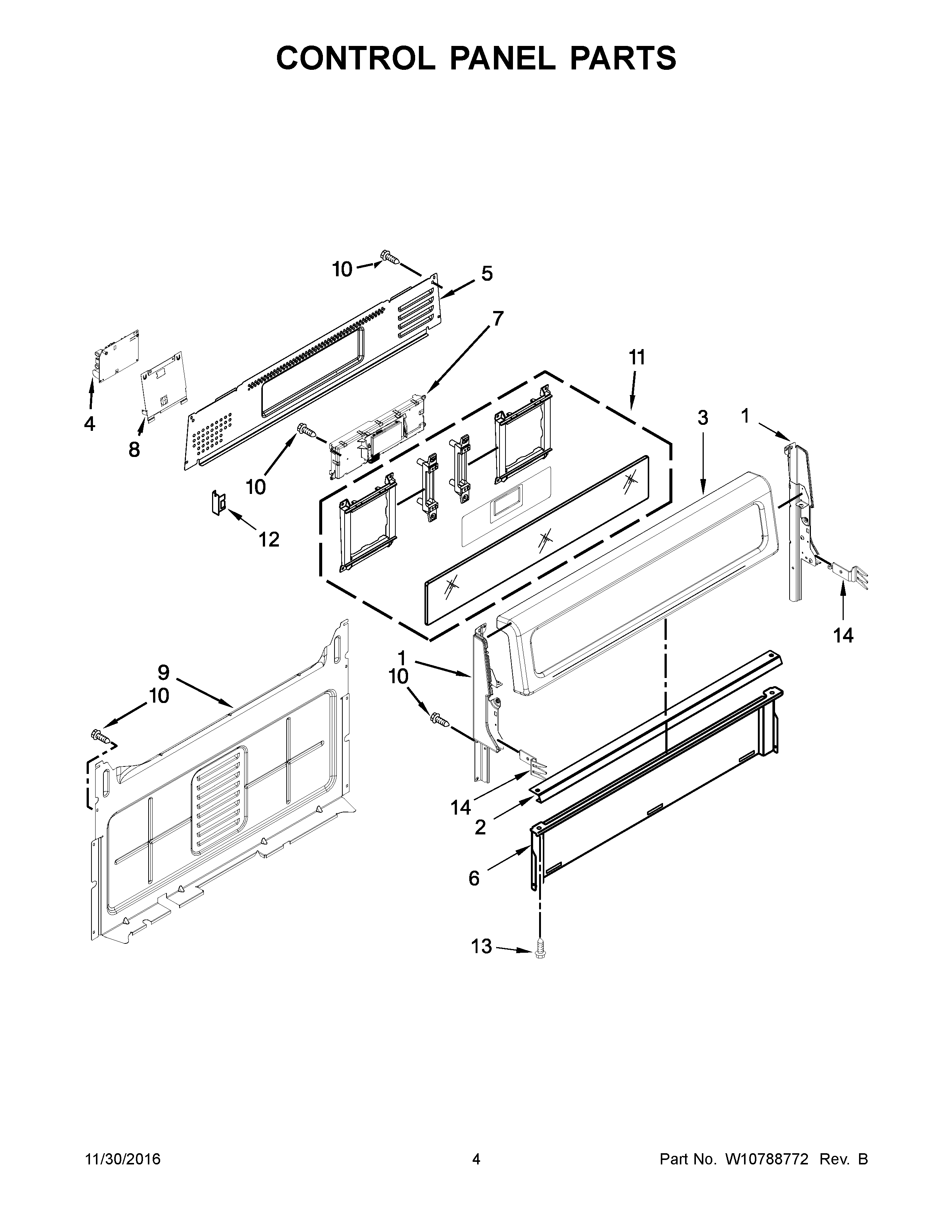

KFGG500EWH0 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219370 Whirlpool Endcap Panel
1C	W10409003 Whirlpool Endcap Panel
1B	W11404310 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3	W10645847 Whirlpool Control Panel
3A	W10645846 Whirlpool Control Panel
3B	W11164063 Whirlpool Control Panel
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11088878-includeCORE Whirlpool W11088878 Refrigerator Electronic Control Board + Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11A	W11675300 Whirlpool Membrane Switch
11	W10645815 Whirlpool Membrane Switch
12	WPW10475149 Whirlpool Spark Module
13	WPW10067840 Whirlpool Screw
14	8523412 Whirlpool Mounting Bracket
