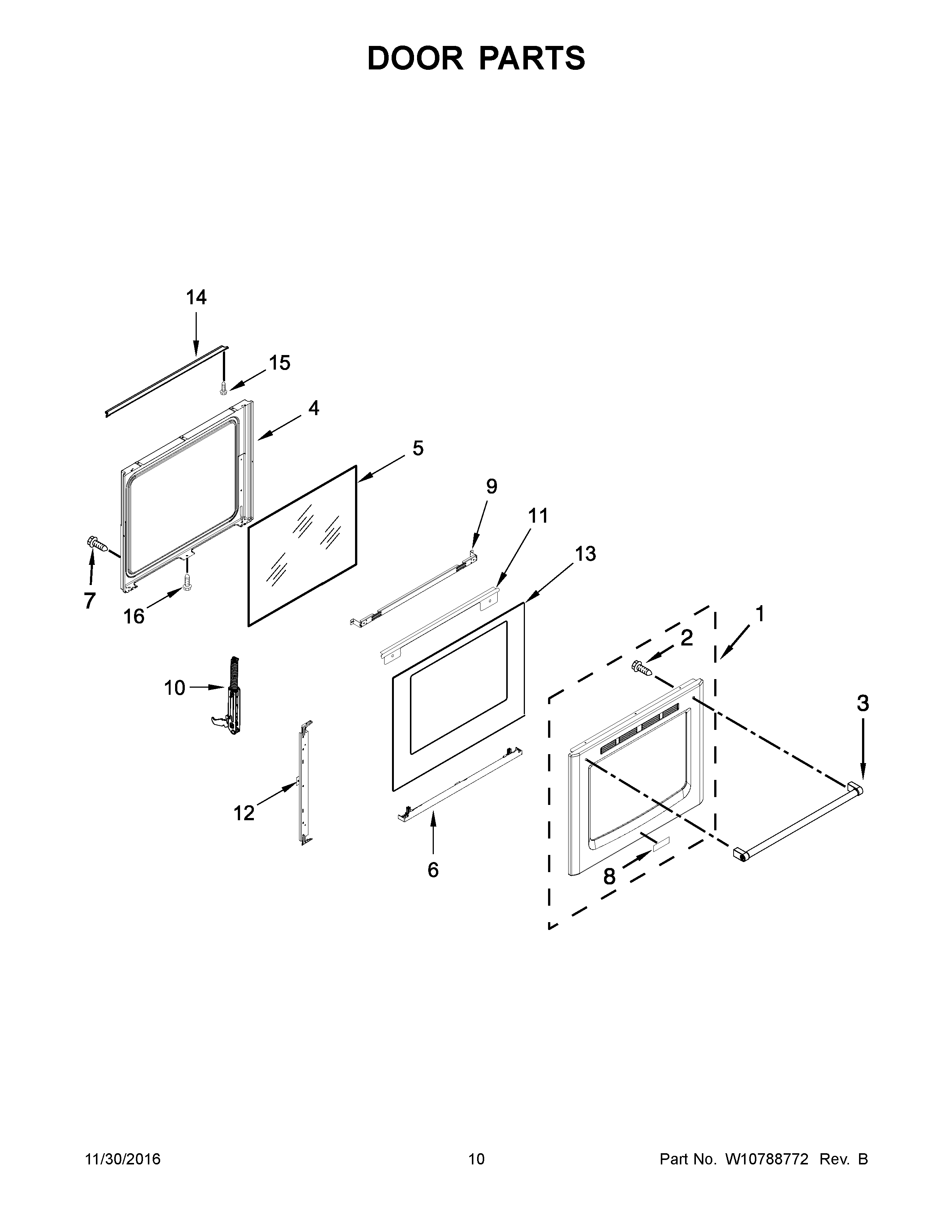

KFGG500EWH0 06 – DOOR PARTS

Products

Position	Product
1	W10906445 Whirlpool Door Glass
2	W10831019 Whirlpool Stove Door Screw
3	W11104399 Whirlpool Door Handle
4	WPW10297318 Whirlpool Door Liner
4A	LINER, DOOR
5A	WPW10541888 Whirlpool Door Glass
5	WPW10300487 Whirlpool Door Glass
6	WPW10333990 Whirlpool Glass Bracket
6B	SUPPORT, GLASS
6A	W10334031 Whirlpool Glass Bracket
7	WPW10031790 Whirlpool Screw
8	W10839793 Whirlpool Refrigerator Nameplate
9A	W10541911 Whirlpool Mounting Bracket
9	W10294853 Whirlpool Mounting Bracket
10	WPW10440013 Whirlpool Door Hinge
11A	W10294855 Whirlpool Vent Trim
11	WPW10335331 Whirlpool Trim Vent
12	W11116956 Whirlpool Support Bracket
12A	W10541883 Whirlpool Support
13B	W11028218 Whirlpool Door Glass
13A	W10804365 Whirlpool Outer Door Glass
13	WPW10495962 Whirlpool Door Panel
14	W10675397 Whirlpool Door Trim
15	W11245710 Whirlpool Refrigerator Screw
16	WP355214 Whirlpool Screw
